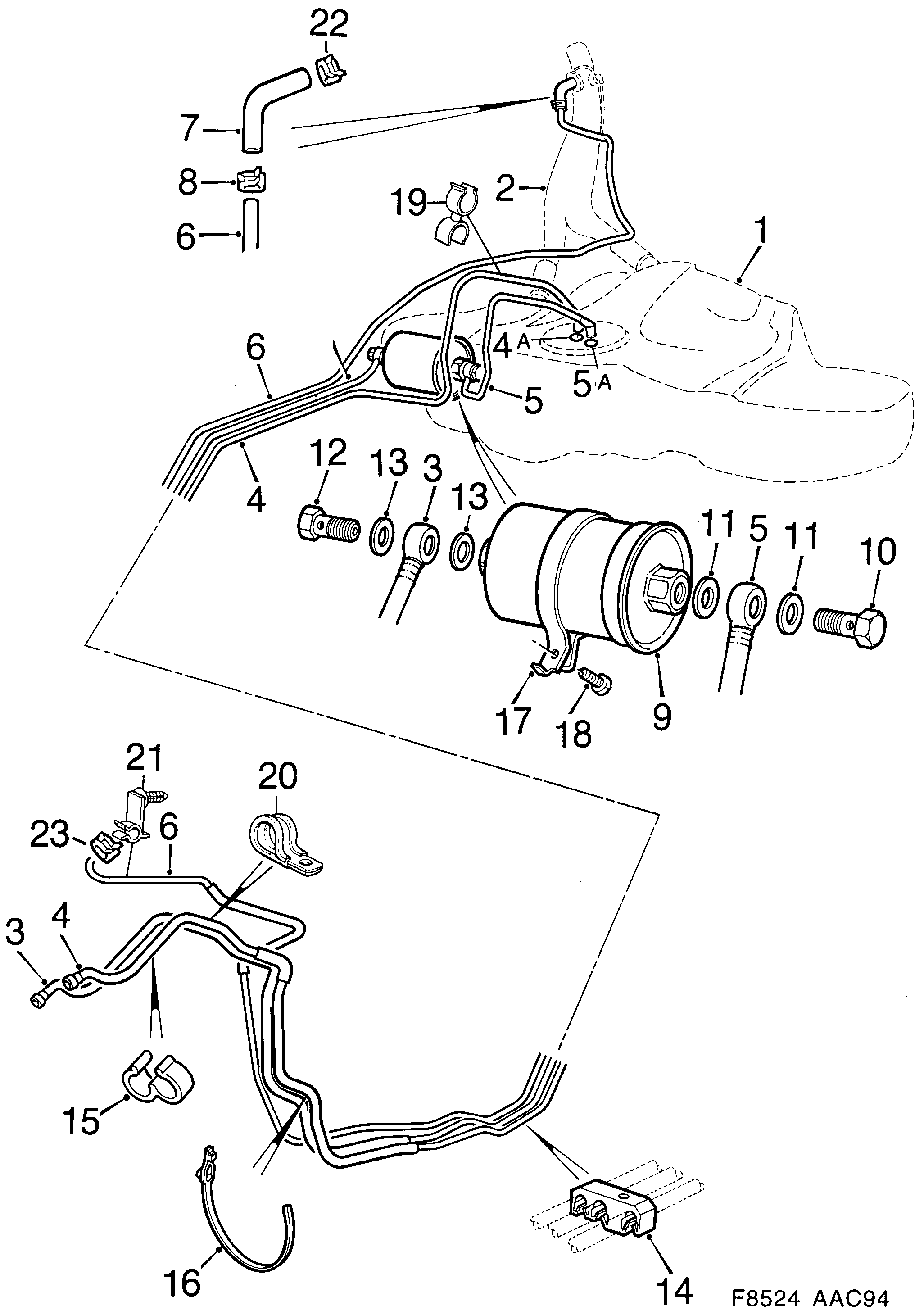

Pos.	Part No.	Description	Usage	Qty
1	TankFuel system	TankFuel system			1
2	Filler pipeFuel system	Filler pipeFuel system			1
3	43 96 891 Fuel pipe 1996-1998 • 4-CYL	Fuel pipe	1996-1998 4-CYL	1
4	43 96 909 Fuel pipe 1996-1998 • 4-CYL	Fuel pipe	1996-1998 4-CYL	1
4A	79 74 546 O-ring	O-ring		2
5	46 22 635 Fuel pipe 1996-1998	Fuel pipe	1996-1998	1
5A	79 74 546 O-ring	O-ring		2
6	46 22 643 Tube 1996-1998	Tube	1996-1998	1
6	47 28 846 53 20 296 Tube 1998-1998, LHD	Tube	1998-1998, LHD	1
7	42 26 759 53 29 990 Hose	Hose		1
8	79 73 522 Hose clamp	Hose clamp		1
9	41 63 853 Fuel filter	Fuel filter		1
10	43 74 211 12 773 569 Banjo bolt	Banjo bolt		1
11	41 61 162 Seal	Seal		2
12	43 74 203 12 794 638 Banjo bolt	Banjo bolt		1
13	44 43 883 Seal	Seal		2
14	42 29 985 Bracket	Bracket		9
15	42 25 652 Hose clamp	Hose clamp		1
16	79 84 750 Tensioning band	Tensioning band		1
17	75 26 650 45 73 903 Bracket	Bracket		1
18	79 22 537 Hexagon screw	Hexagon screw		1
19	93 84 298 Clamp	Clamp		1
20	42 25 645 90 305 690 Hose clamp	Hose clamp		1
21	42 27 849 90 374 225 Clip	Clip		1
22	79 77 697 90 530 642 Hose clamp 1997-1998, LHD	Hose clamp	1997-1998, LHD	1
23	79 77 697 90 530 642 Hose clamp 1997-1998, LHD	Hose clamp	1997-1998, LHD	2

Pos.	Part No.	Description	Usage	Qty
1	TankFuel system	TankFuel system			1
2	Filler pipeFuel system	Filler pipeFuel system			1
3	43 96 891 Fuel pipe 1996-1998 • 4-CYL	Fuel pipe	1996-1998 4-CYL	1
4	43 96 909 Fuel pipe 1996-1998 • 4-CYL	Fuel pipe	1996-1998 4-CYL	1
4A	79 74 546 O-ring	O-ring		2
5	46 22 635 Fuel pipe 1996-1998	Fuel pipe	1996-1998	1
5A	79 74 546 O-ring	O-ring		2
6	46 22 643 Tube 1996-1998	Tube	1996-1998	1
6	47 28 846 53 20 296 Tube 1998-1998, LHD	Tube	1998-1998, LHD	1
7	42 26 759 53 29 990 Hose	Hose		1
8	79 73 522 Hose clamp	Hose clamp		1
9	41 63 853 Fuel filter	Fuel filter		1
10	43 74 211 12 773 569 Banjo bolt	Banjo bolt		1
11	41 61 162 Seal	Seal		2
12	43 74 203 12 794 638 Banjo bolt	Banjo bolt		1
13	44 43 883 Seal	Seal		2
14	42 29 985 Bracket	Bracket		9
15	42 25 652 Hose clamp	Hose clamp		1
16	79 84 750 Tensioning band	Tensioning band		1
17	75 26 650 45 73 903 Bracket	Bracket		1
18	79 22 537 Hexagon screw	Hexagon screw		1
19	93 84 298 Clamp	Clamp		1
20	42 25 645 90 305 690 Hose clamp	Hose clamp		1
21	42 27 849 90 374 225 Clip	Clip		1
22	79 77 697 90 530 642 Hose clamp 1997-1998, LHD	Hose clamp	1997-1998, LHD	1
23	79 77 697 90 530 642 Hose clamp 1997-1998, LHD	Hose clamp	1997-1998, LHD	2
