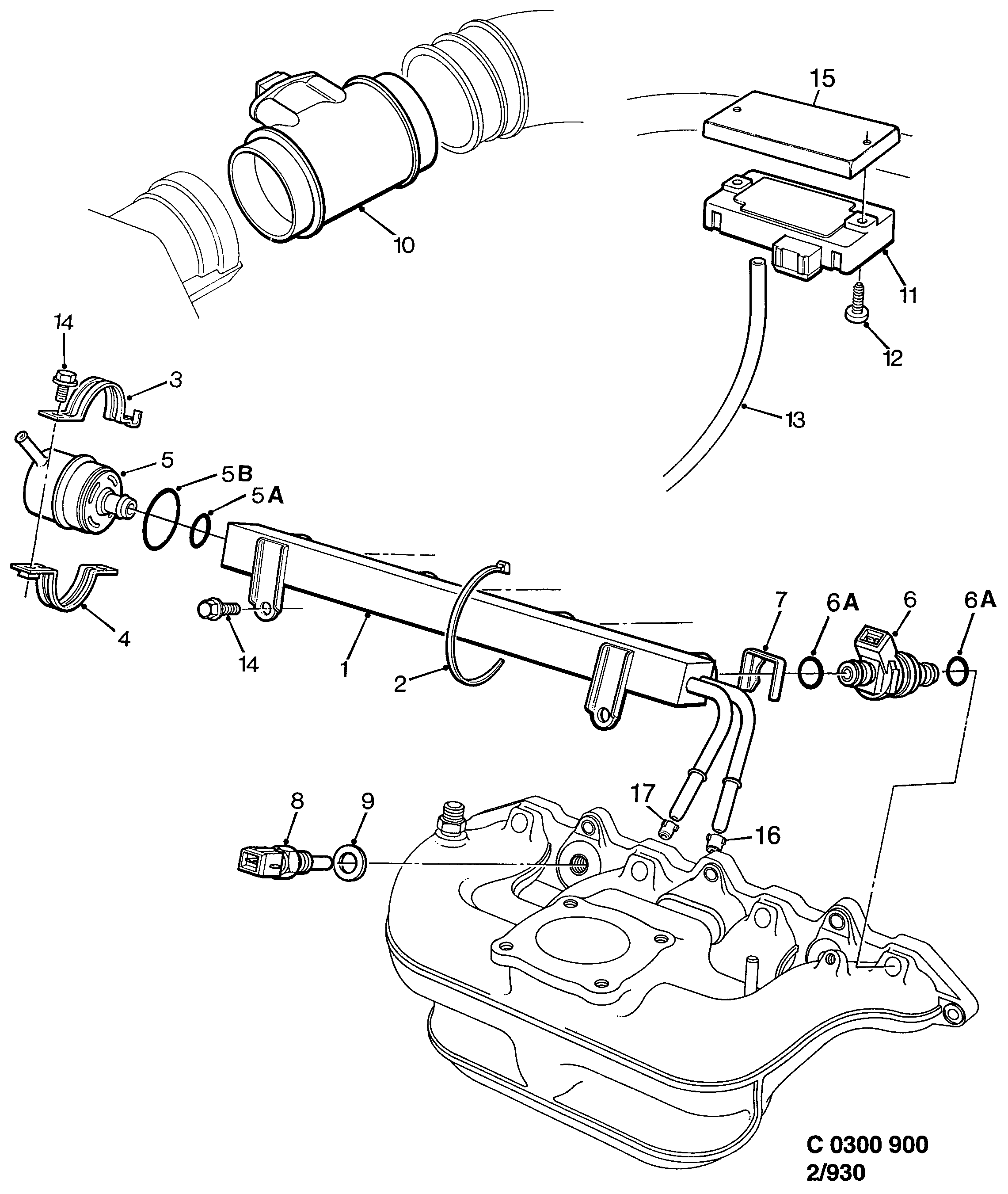

930: Engine - Fuel system - Fuel rail
(1994 - 1998 | PETROL) | For 900 (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 71 539 Distribution pipe 1997- • PETROL | 1 | |
| 2 | 79 71 872 Tensioning band PETROL | 3 | |
| 3 | 45 03 819 95 42 424 Clamp 1997- • PETROL | 1 | |
| 5 | 45 03 793 91 18 850 Fuel pressure regulator 1997- • PETROL | 1 | |
| 5A | 91 97 724 30 580 309 O-ring PETROL | 1 | |
| 5B | 90 511 961 O-ring PETROL | 1 | |
| 6 | 91 42 423 Injector I | 4 | |
| 6 | 91 42 449 30 551 847 Injector TURBO | 4 | |
| 6A | 91 97 716 90 541 910 O-ring 1994-1998 • PETROL | 2 | |
| 7 | 91 75 464 93 56 486 Clamp 1998-1998 • PETROL | 4 | |
| 8 | 91 77 213 15 393 755 Temperature sensor 1996-1998 • PETROL | 1 | |
| 9 | 41 59 265 44 43 883 Seal PETROL | 1 | |
| 10 | Mass air flow sensorFuel system PETROL | 1 | |
| 11 | 91 32 374 Pressure sensor TURBO | 1 | |
| 12 | 79 82 192 Screw TURBO | 1 | |
| 13 | 41 64 141 Vacuum hose PETROL | 1 | |
| 14 | 79 78 091 11 900 353 Screw 1996-1998 • PETROL | 3 | |
| 15 | 42 39 968 Protecting cover PETROL | 1 | |
| 16 | 42 29 738 Bushing PETROL • Ø 7,9 MM | 1 | |
| 17 | 42 29 746 Bushing PETROL • Ø 6,25 MM | 1 |
