Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 900 1998?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 900 1998. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

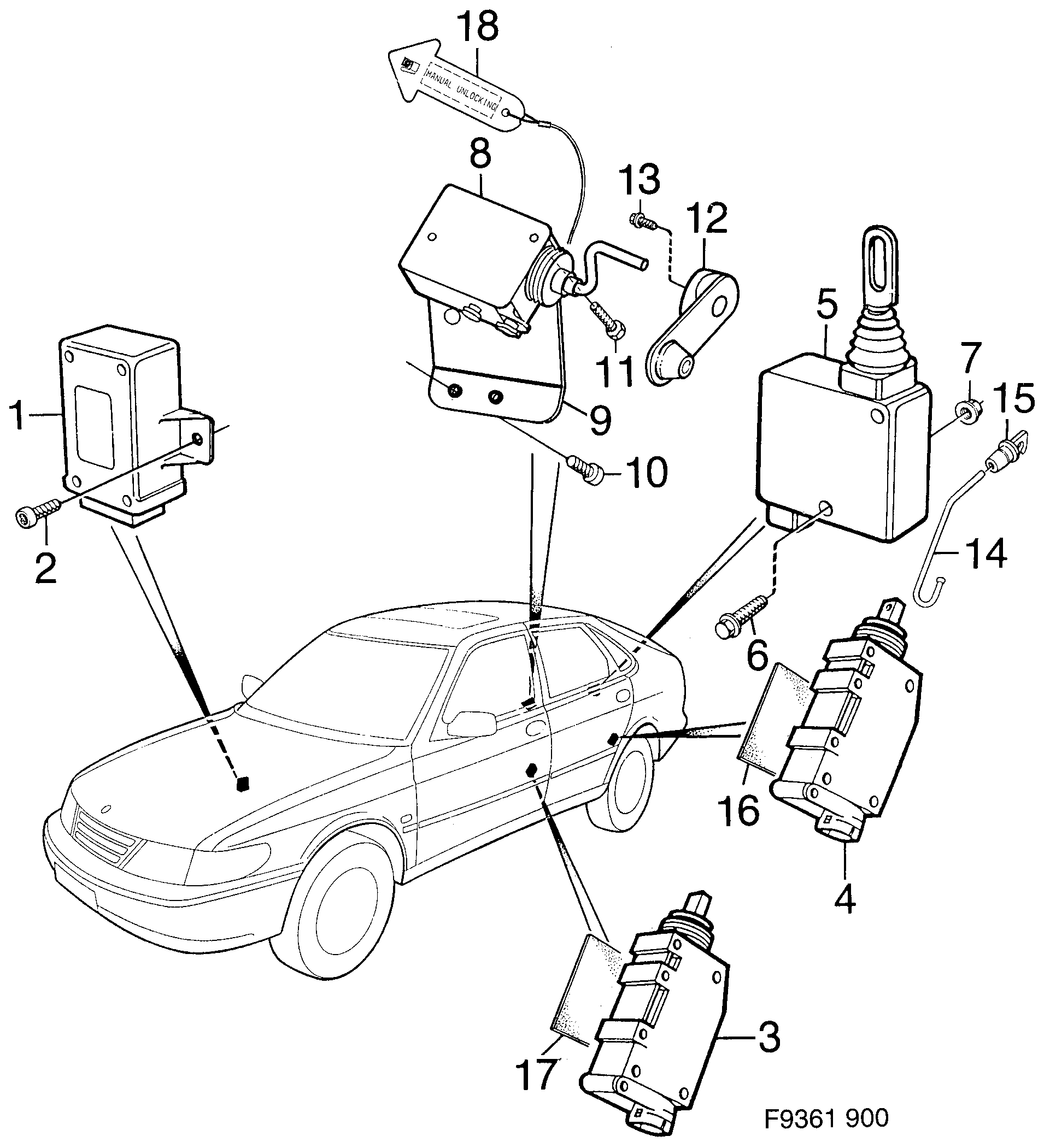

Pos.	Part No.	Description	Usage	Qty
1	47 10 257 Electronic unit 1996-	Electronic unit	1996-	1
2	79 70 536 92 150 118 Screw	Screw		2
3	47 37 607 Electric motor 1996-1998, LHD • LH	Electric motor	1996-1998, LHD LH	1
3	47 37 565 Electric motor 1996-1998, LHD • RH	Electric motor	1996-1998, LHD RH	1
4	47 37 573 Electric motor 1996-1998	Electric motor	1996-1998	2
5	47 33 382 Motor 1996-1998	Motor	1996-1998	1
6	79 71 823 Screw	Screw		2
7	79 77 929 11 900 451 Nut	Nut		2
8	44 93 300 Electric motor tank hatch	Electric motor	tank hatch	1
9	43 05 736 Bracket	Bracket		1
10	79 22 362 Screw	Screw		2
11	79 71 823 Screw	Screw		2
12	43 06 478 53 35 716 Grommet	Grommet		1
13	79 83 000 92 153 149 Hexagon screw	Hexagon screw		1
14	45 57 211 Rod LH	Rod	LH	1
	rear door	rear door
14	45 57 229 Rod RH	Rod	RH	1
	rear door	rear door
15	43 26 732 Clip LH	Clip	LH	1
15	43 26 740 Clip RH	Clip	RH	1
16	46 94 584 Spacer 1995-1998 • rear door	Spacer	1995-1998 rear door	2
17	46 94 584 Spacer 1996-1998 • front door	Spacer	1996-1998 front door	2
18	48 59 450 Opening handle	Opening handle		1

Pos.	Part No.	Description	Usage	Qty
1	47 10 257 Electronic unit 1996-	Electronic unit	1996-	1
2	79 70 536 92 150 118 Screw	Screw		2
3	47 37 607 Electric motor 1996-1998, LHD • LH	Electric motor	1996-1998, LHD LH	1
3	47 37 565 Electric motor 1996-1998, LHD • RH	Electric motor	1996-1998, LHD RH	1
4	47 37 573 Electric motor 1996-1998	Electric motor	1996-1998	2
5	47 33 382 Motor 1996-1998	Motor	1996-1998	1
6	79 71 823 Screw	Screw		2
7	79 77 929 11 900 451 Nut	Nut		2
8	44 93 300 Electric motor tank hatch	Electric motor	tank hatch	1
9	43 05 736 Bracket	Bracket		1
10	79 22 362 Screw	Screw		2
11	79 71 823 Screw	Screw		2
12	43 06 478 53 35 716 Grommet	Grommet		1
13	79 83 000 92 153 149 Hexagon screw	Hexagon screw		1
14	45 57 211 Rod LH	Rod	LH	1
	rear door	rear door
14	45 57 229 Rod RH	Rod	RH	1
	rear door	rear door
15	43 26 732 Clip LH	Clip	LH	1
15	43 26 740 Clip RH	Clip	RH	1
16	46 94 584 Spacer 1995-1998 • rear door	Spacer	1995-1998 rear door	2
17	46 94 584 Spacer 1996-1998 • front door	Spacer	1996-1998 front door	2
18	48 59 450 Opening handle	Opening handle		1

810: Electrical, general - Electric equipment, other - Central lock
