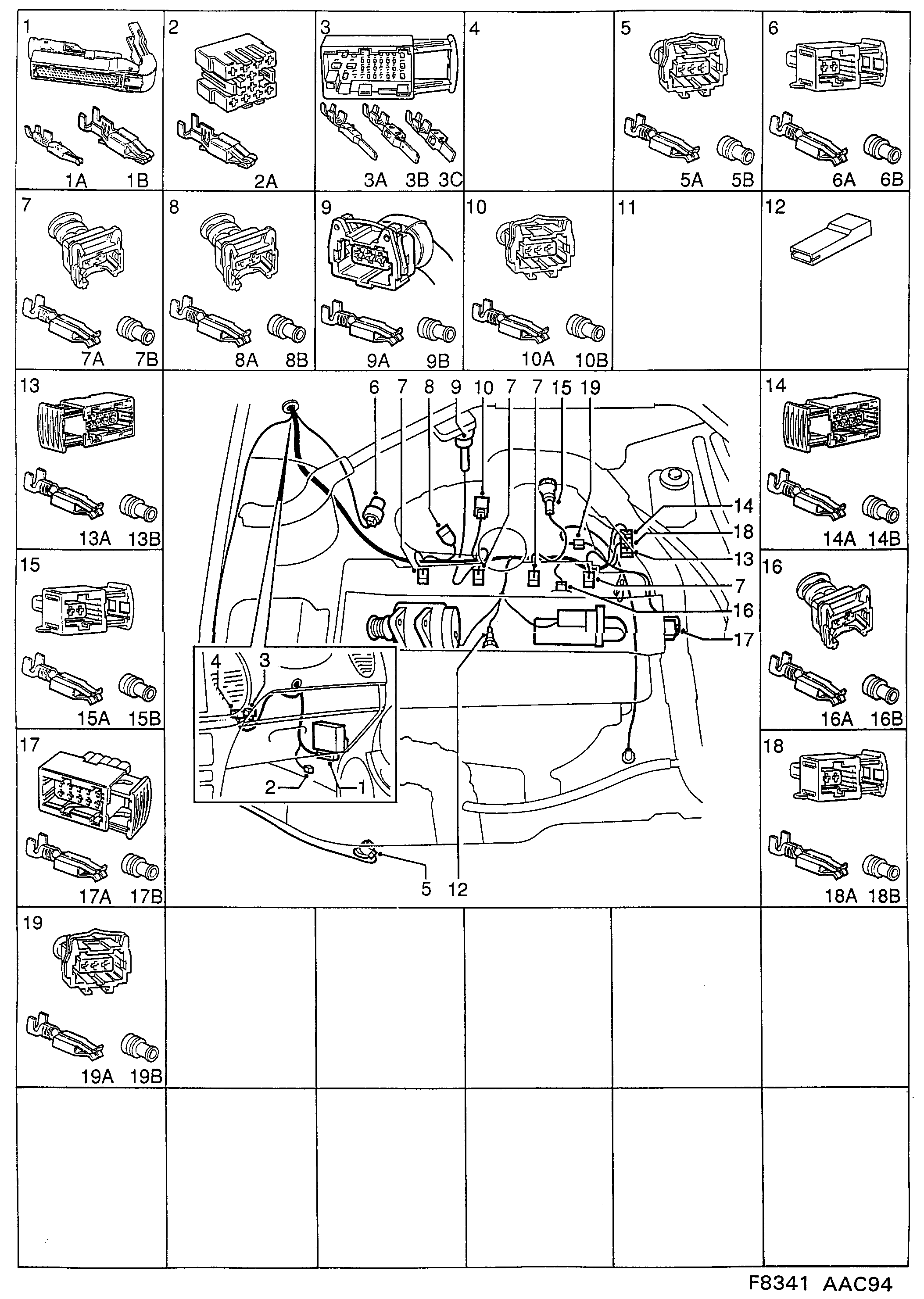

3390: Electrical, connector - Contact housing etc - Engine

(1997 - 1998 | PETROL) | For 900 (1998)

100%

(N°3360)

Section 3390

(N°3420)

Pos.	Part No.	Description	Usage	Qty
1	41 76 616 Connector housing PETROL • 70-pin, female electronic unit...	Connector housing	PETROL 70-pin, female electronic unit...	1
1A	41 15 499 12 790 414 Cable terminal PETROL • AREA 0,5-1,0 MM2	Cable terminal	PETROL AREA 0,5-1,0 MM2	46
1B	91 20 957 12 789 796 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	7
2	91 23 399 12 764 801 Connector housing PETROL • 10-pin, female test socket	Connector housing	PETROL 10-pin, female test socket	1
2A	91 20 957 12 789 796 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	5
3	41 73 852 12 798 080 Contact housing PETROL • 33-pin, male connection	Contact housing	PETROL 33-pin, male connection	1
3A	41 15 457 12 790 614 Cable terminal PETROL • AREA 0,5-1,0 MM2	Cable terminal	PETROL AREA 0,5-1,0 MM2	19
3B	41 15 077 12 789 934 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	7
3C	41 15 580 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
5	44 32 316 12 790 262 Connector housing PETROL • 3-pin, female solenoid valve...	Connector housing	PETROL 3-pin, female solenoid valve...	1
5A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
5B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
6	41 13 205 12 788 933 Connector housing PETROL • 2-pin, female EVAP CP...	Connector housing	PETROL 2-pin, female EVAP CP...	1
6A	43 50 526 Cable terminal PETROL • AREA 0,5-1,0 MM2	Cable terminal	PETROL AREA 0,5-1,0 MM2	2
6B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
7	41 78 414 12 790 247 Connector housing PETROL • 2-pin, female injection valves	Connector housing	PETROL 2-pin, female injection valves	1
7A	40 61 586 Cable terminal PETROL • AREA 1,0-2,9 MM2	Cable terminal	PETROL AREA 1,0-2,9 MM2	2
7B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
8	41 78 414 12 790 247 Connector housing PETROL • 2-pin, female idle speed...	Connector housing	PETROL 2-pin, female idle speed...	1
8A	40 61 586 Cable terminal PETROL • AREA 1,0-2,9 MM2	Cable terminal	PETROL AREA 1,0-2,9 MM2	2
8B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
9	44 32 316 12 790 262 Connector housing PETROL • 3-pin, female pressure sensor...	Connector housing	PETROL 3-pin, female pressure sensor...	1
9A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
9B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
10	46 69 743 Connector housing PETROL • 3-pin, female throttle position...	Connector housing	PETROL 3-pin, female throttle position...	1
10A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
10B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
