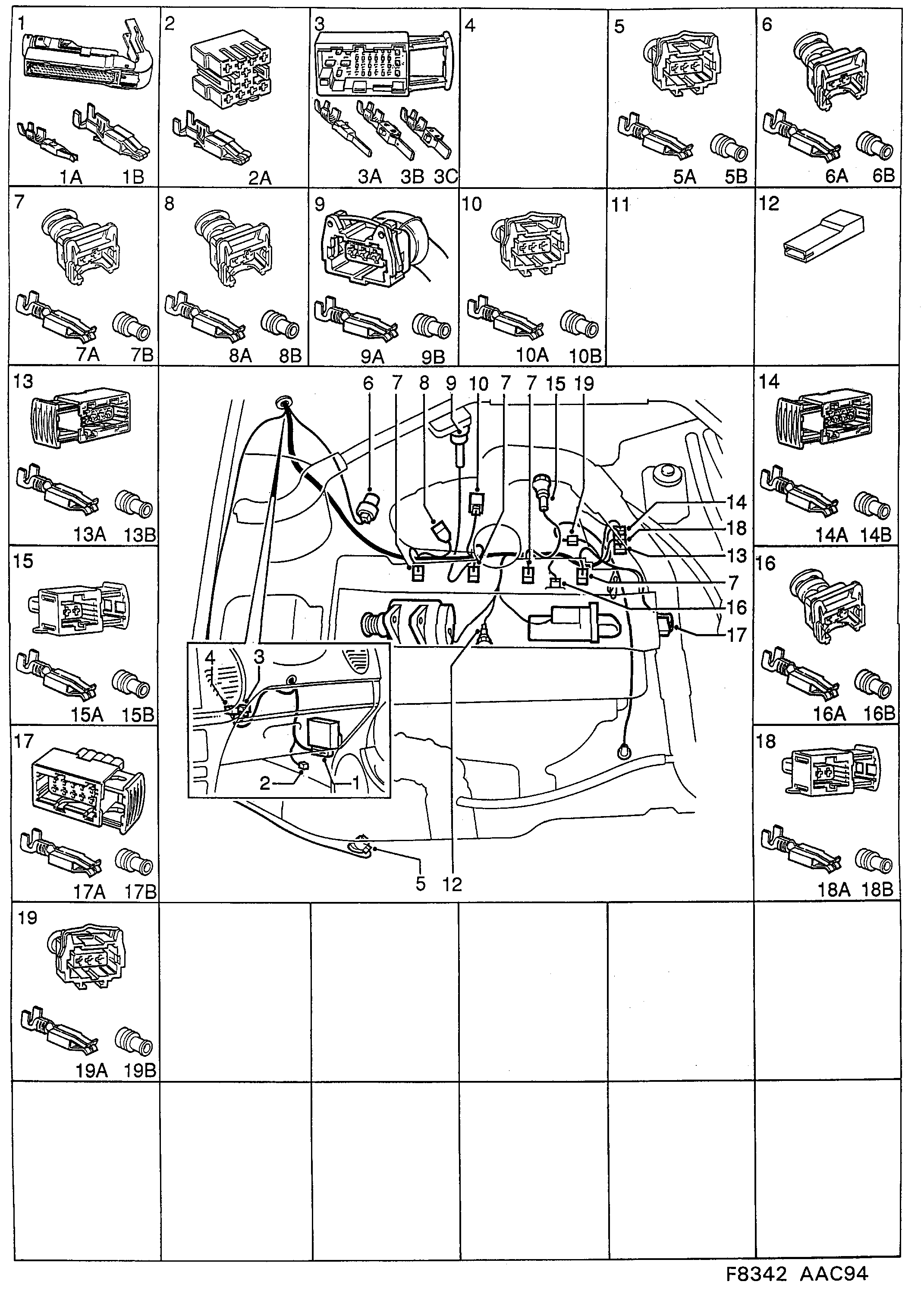

3420: Electrical, connector - Contact housing etc - Engine

(1997 - 1998 | PETROL) | For 900 (1998)

100%

(N°3390)

Section 3420

(N°3450)

Pos.	Part No.	Description	Usage	Qty
12	44 09 801 Cable terminal PETROL • 1-pin, female engine oil...	Cable terminal	PETROL 1-pin, female engine oil...	1
13	41 13 601 12 788 993 Connector housing PETROL • 4-pin, female lambda sond...	Connector housing	PETROL 4-pin, female lambda sond...	1
13A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	4
13B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	4
14	41 13 601 12 788 993 Connector housing PETROL • 4-pin, female lambda sond...	Connector housing	PETROL 4-pin, female lambda sond...	1
14A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	4
14B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	4
15	41 13 205 12 788 933 Connector housing PETROL • 2-pin, female temperature sensor	Connector housing	PETROL 2-pin, female temperature sensor	1
15A	43 50 526 Cable terminal PETROL • AREA 0,5-1,0 MM2	Cable terminal	PETROL AREA 0,5-1,0 MM2	2
15B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
16	41 78 414 12 790 247 Connector housing PETROL • 2-pin, female temperature sensor...	Connector housing	PETROL 2-pin, female temperature sensor...	1
16A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
16B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
17	41 14 005 12 788 954 Connector housing PETROL • 10-pin, female ignition discharge...	Connector housing	PETROL 10-pin, female ignition discharge...	1
17A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	9
17B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	9
18	41 13 205 12 788 933 Connector housing PETROL • 2-pin, female temperature sensor...	Connector housing	PETROL 2-pin, female temperature sensor...	1
18A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	2
18B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	2
19	44 32 324 Connector housing PETROL • 3-pin, female crank shaft...	Connector housing	PETROL 3-pin, female crank shaft...	1
19A	40 61 586 Cable terminal PETROL • AREA 1,0-2,5 MM2	Cable terminal	PETROL AREA 1,0-2,5 MM2	3
19B	40 61 974 12 798 372 Seal PETROL • AREA 2,1-2,9 MM2	Seal	PETROL AREA 2,1-2,9 MM2	3
