Where to find the exploded diagram for Contact housing etc on my Saab 900 1998?

Find on Saabiste.net the complete and official interactive technical diagram for Contact housing etc on Saab 900 1998. All components are detailed with their original SAAB OEM references.

How do I identify a specific Saab reference in the section Contact housing etc?

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

How do I copy or use the part number of a component in section Contact housing etc?

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

What does NLS mean in the Saab 900 catalog?

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Contact housing etc, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Are the parts in this section Contact housing etc suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

EPC

Access your Saabiste workshop.

Articles My Garage Diagnostics WIS EPC Support

Join us

Back to Models

Back to Groups

Find by VIN

Search for a part number

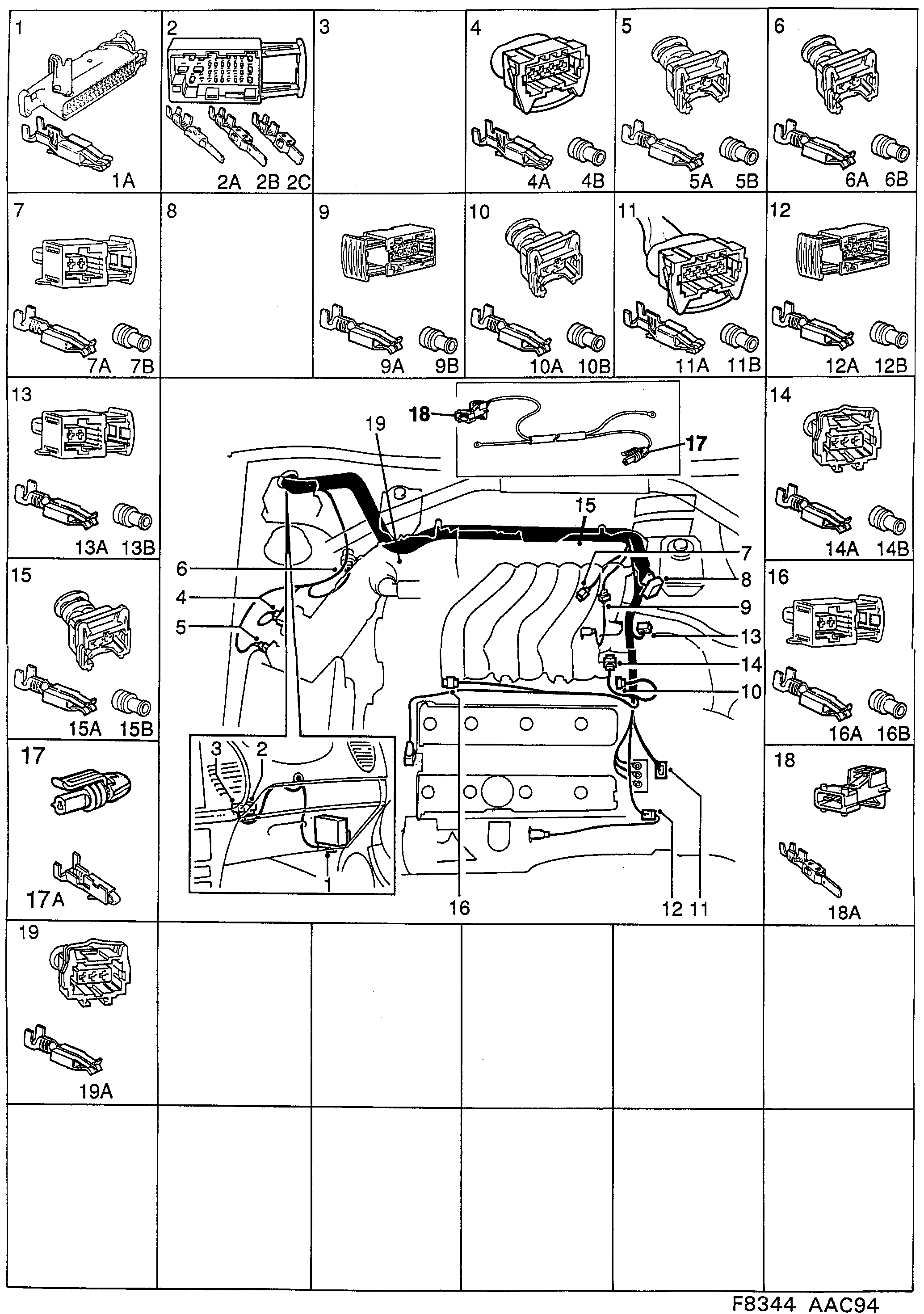

3480: Electrical, connector - Contact housing etc - Engine

(1997 - 1998 | B258,I,6-CYL,6-CYL I,PETROL) | For 900 (1998)

100%

(N°3450)

Section 3480

(N°3510)

Pos.	Part No.	Description	Usage	Qty
11	46 68 604 12 790 268 Contact housing 29 • 4-pin, female ignition coil	Contact housing	29 4-pin, female ignition coil	1
11A	40 61 586 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	4
11B	40 61 974 12 798 372 Seal 29 • AREA 2,1-2,9 MM2	Seal	29 AREA 2,1-2,9 MM2	4
12	41 13 601 12 788 993 Connector housing 29 • 4-pin, female lambda sond...	Connector housing	29 4-pin, female lambda sond...	1
12A	40 61 586 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	3
12B	40 61 974 12 798 372 Seal 29 • AREA 2,1-2,9 MM2	Seal	29 AREA 2,1-2,9 MM2	3
13	41 13 205 12 788 933 Connector housing 29 • 2-pin, female temperature sensor...	Connector housing	29 2-pin, female temperature sensor...
13A	40 61 586 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	2
13B	40 61 974 12 798 372 Seal 29 • AREA 2,1-2,9 MM2	Seal	29 AREA 2,1-2,9 MM2	2
14	44 32 316 12 790 262 Connector housing 29 • 3-pin, female crank shaft...	Connector housing	29 3-pin, female crank shaft...	1
14A	40 61 586 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	3
14B	40 61 974 12 798 372 Seal 29 • AREA 2,1-2,9 MM2	Seal	29 AREA 2,1-2,9 MM2	3
15	46 69 180 Connector housing 29 • 2-pin, female idle speed...	Connector housing	29 2-pin, female idle speed...	1
15A	40 61 586 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	2
15B	40 61 974 12 798 372 Seal 29 • AREA 2,1-2,9 MM2	Seal	29 AREA 2,1-2,9 MM2	2
16	41 13 205 12 788 933 Connector housing 29 • 2-pin, female knock sensor...	Connector housing	29 2-pin, female knock sensor...	1
16A	43 50 526 Cable terminal 29 • AREA 0,5-1,0 MM2	Cable terminal	29 AREA 0,5-1,0 MM2	2
16B	40 61 974 12 798 372 Seal 29 • AREA 2,1-2,9 MM2	Seal	29 AREA 2,1-2,9 MM2	2
17	42 03 378 Connector housing 29 • 1-pin, female engine oil...	Connector housing	29 1-pin, female engine oil...	1
17A	44 18 505 Cable terminal 29 • AREA 0,5-1,0 MM2	Cable terminal	29 AREA 0,5-1,0 MM2	1
18	41 13 650 12 788 998 Connector housing 29 • 4-pin, male connection	Connector housing	29 4-pin, male connection	1
18A	41 15 192 12 789 934 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	3
19	44 32 365 Connector housing 29 • 5-pin, female TCS	Connector housing	29 5-pin, female TCS	1
19A	40 61 586 Cable terminal 29 • AREA 1,0-2,5 MM2	Cable terminal	29 AREA 1,0-2,5 MM2	5
