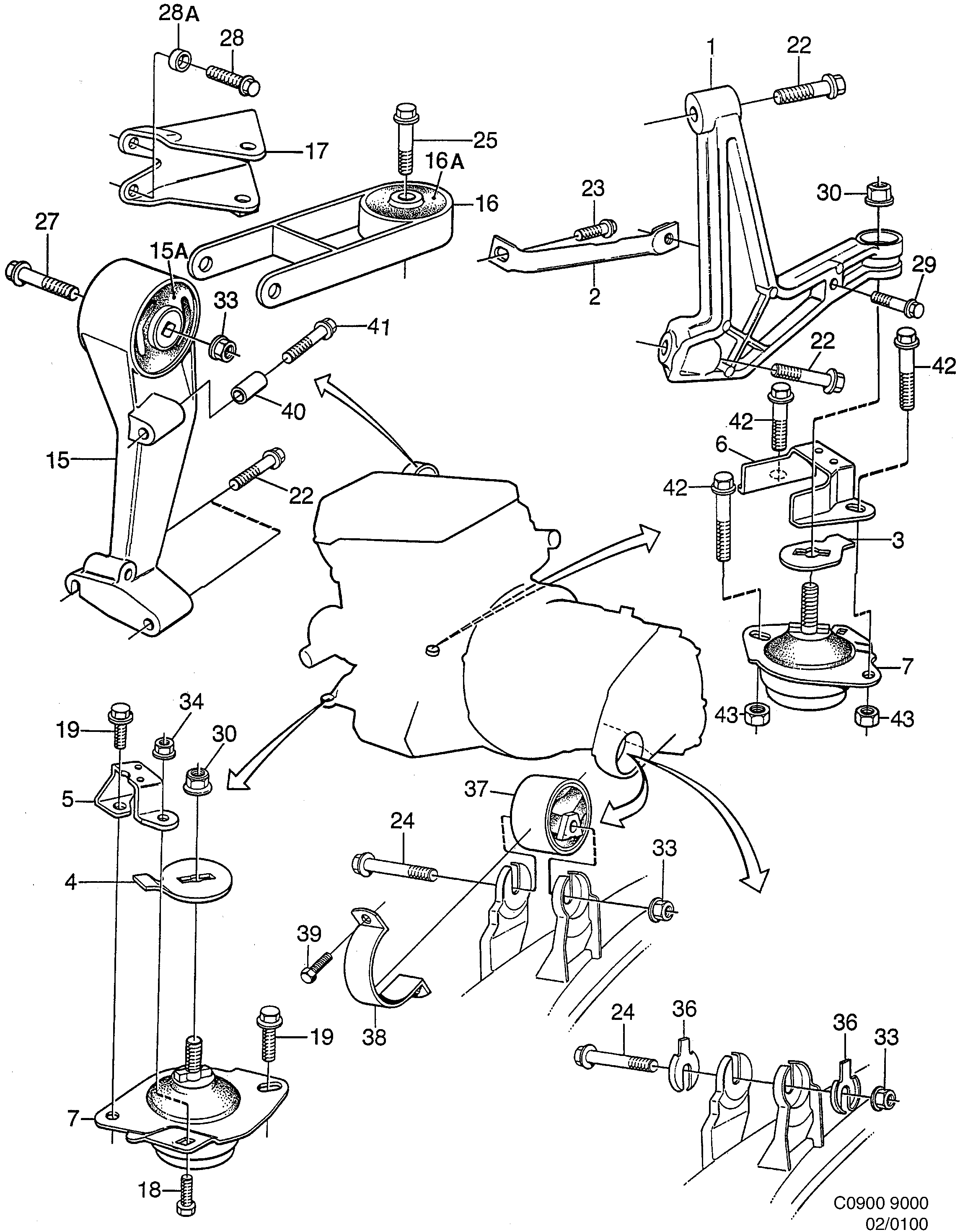

100: Engine - Short block - Engine mounting
(1985 - 1989) | For 9000 (1985)
100%
Section 100
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2 | 75 50 528 Brace | 1 | |
| 3 | 75 51 971 Limiter | 1 | |
| 4 | 75 51 963 Limiter | 1 | |
| 5 | 75 59 396 Stop -1989 | 1 | |
| 6 | 75 51 997 Stop | 1 | |
| 7 | 75 51 104 Vibration damper | 2 | |
| 15 | 75 77 554 Engine anchorage (7559164) | 1 | |
| 15A | 75 76 333 Rubber cushion | 1 | |
| 16 | 75 54 439 Torque rod -1986 | 1 | |
| 17 | 93 83 175 Bracket -1986 | 1 | |
| 18 | 75 51 385 Screw | 1 | |
| 19 | 81 30 064 92 152 121 Screw | 2 | |
| 22 | 79 72 292 Screw | 4 | |
| 23 | 79 73 779 Screw | 1 | |
| 24 | 79 73 571 Screw | 1 | |
| 25 | 79 74 777 Screw | 1 | |
| 27 | 79 77 267 Screw | 1 | |
| 28 | 80 82 943 Screw | 3 | |
| 28A | 75 77 893 Spacer | 3 | |
| 29 | 79 75 527 11 900 368 Screw -1987 | 1 | |
| 30 | 79 71 765 92 153 201 Nut | 2 | |
| 33 | 79 75 220 Nut | 2 | |
| 34 | 79 71 658 11 900 428 Nut | 1 | |
| 36 | 93 19 294 Washer | 2 | |
| 37 | 75 51 831 41 65 312 Vibration damper | 1 | |
| 38 | 75 51 328 Cap | 1 | |
| 39 | 79 70 288 Screw | 2 | |
| 40 | 75 36 857 Spacer For cars with parted... | 1 | |
| 41 | 79 72 292 Screw | 1 | |
| 41 | 79 73 803 80 84 030 Screw For cars with parted... | 1 | |
| 42 | 81 30 064 92 152 121 Screw 1985-1987 | 3 |
