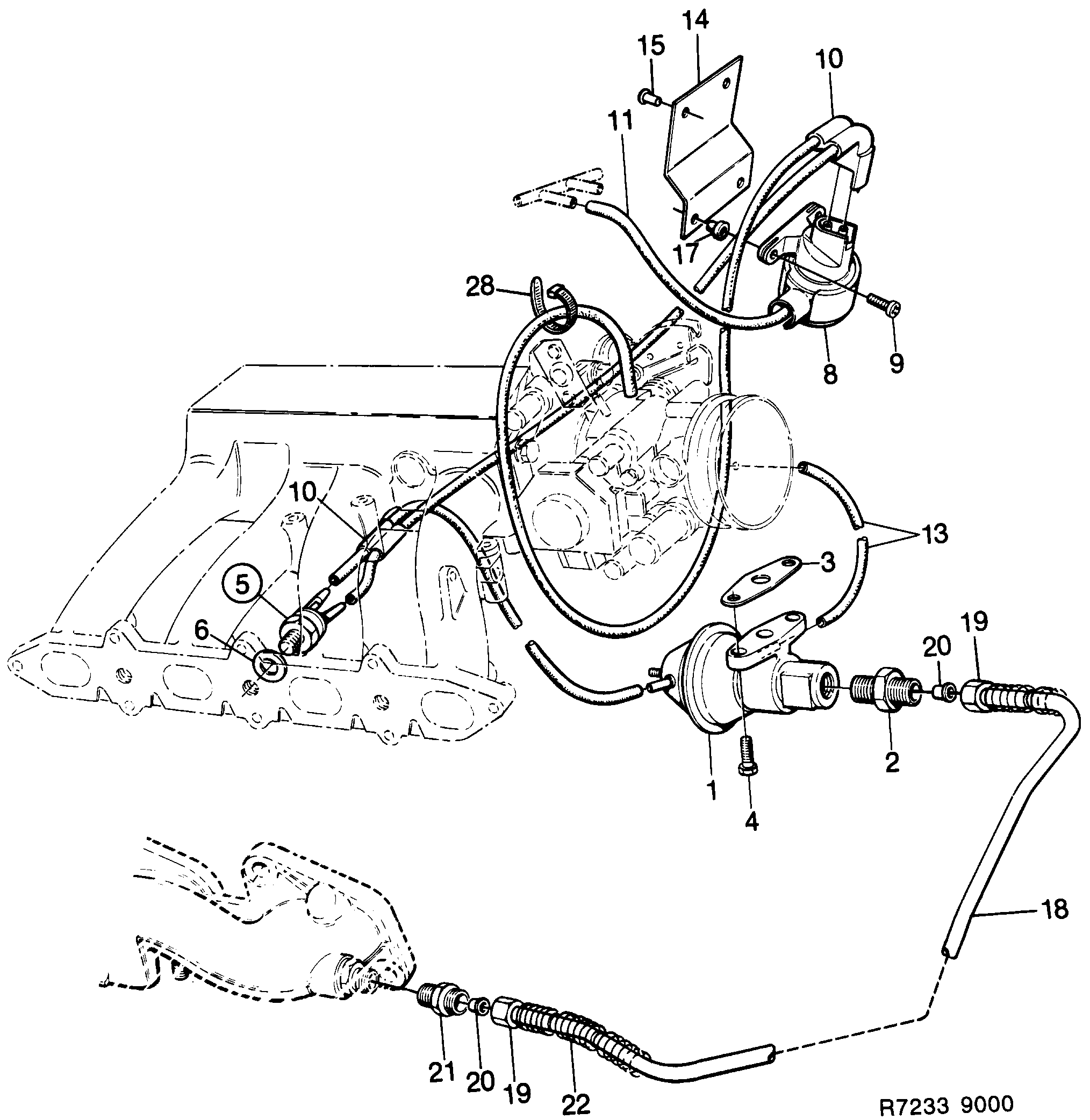

1000: Engine - Intake and exhaust system - EGR system - -1988
(1985 - 1988) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 04 004 Exhaust gas recirculation valve TURBO | 1 | |
| 1 | 75 08 393 Exhaust gas recirculation valve I | 1 | |
| 1 | 93 50 208 Exhaust gas recirculation valve I | 1 | |
| 2 | 75 06 652 Nipple 1985-1985 • TURBO | 1 | |
| 3 | 75 07 973 Gasket 1985-1986 • (8357485) | 1 | |
| 4 | 80 19 929 Screw | 2 | |
| 5 | 75 04 897 Valve TURBO, I | 1 | |
| 6 | 81 24 141 92 150 435 Gasket | 1 | |
| 8 | 75 28 425 Switch TURBO • MARKED BLUE | 1 | |
| 8 | 75 28 433 Switch I • MARKED BLACK | 1 | |
| 8 | 75 90 870 Switch TURBO | 1 | |
| 9 | 79 22 891 Screw 1985-1985 | 2 | |
| 10 | 93 89 313 Hose -1987 | 1 | |
| 11 | 91 36 243 Vacuum hose 1985-1985 • TURBO, I • L=115 MM | Sold... | 1 | |
| 13 | 91 36 243 Vacuum hose L=200 MM | Sold... | 1 | |
| 18 | 75 22 519 EGR-pipe TURBO | 1 | |
| 18 | 75 60 246 Tube 1985-1986 • I | 1 | |
| 19 | 81 45 559 Nut | 2 | |
| 20 | 81 32 235 Ferrule | 2 | |
| 21 | 81 31 989 Nipple | 1 | |
| 22 | 75 20 042 Protection | 1 | |
| 28 | 73 98 621 Clamp | 1 | |
91 36 243 Vacuum hose L=5000 | Sold in... | X |
