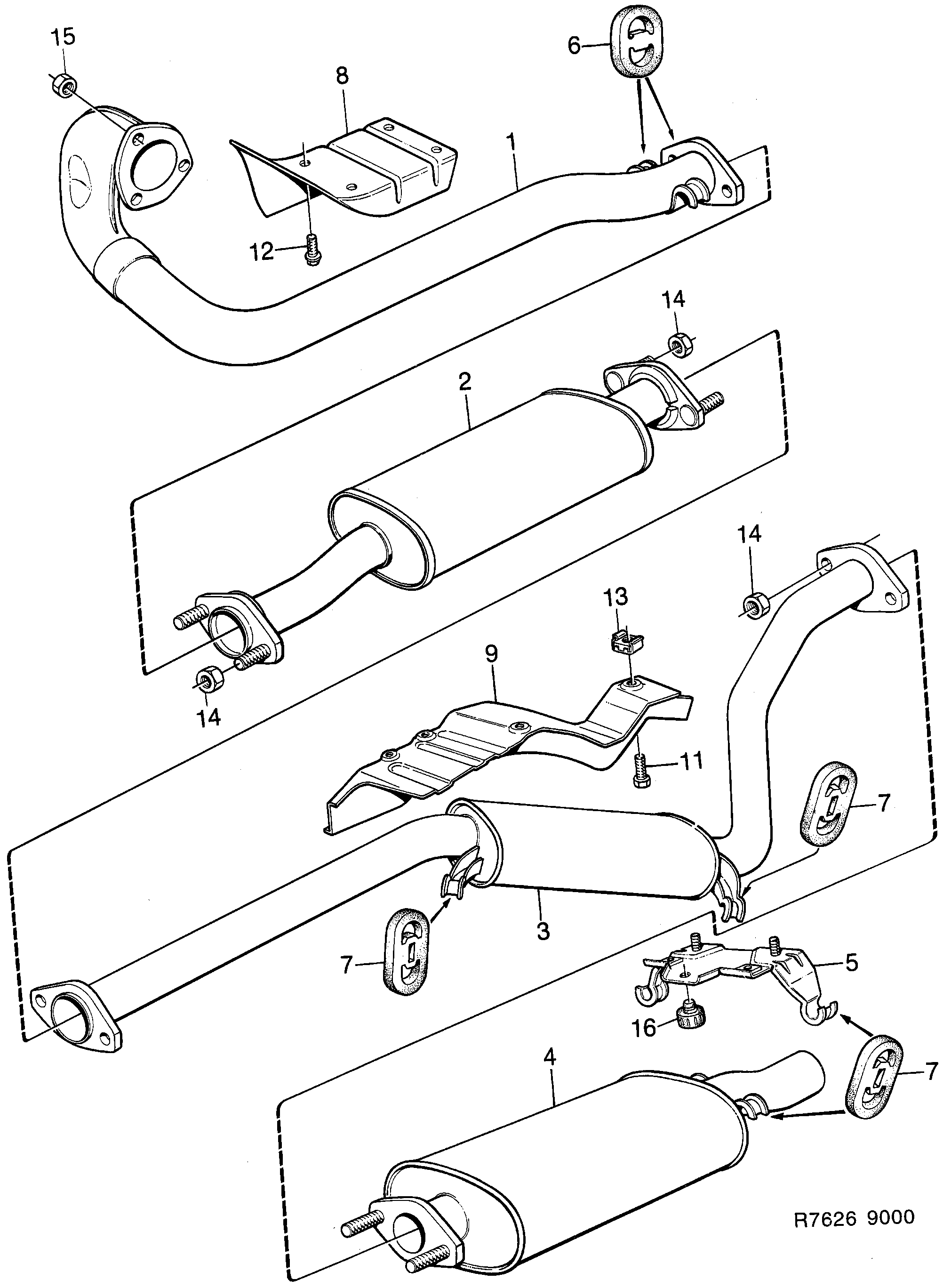

1090: Engine - Intake and exhaust system - Exhaust system
(1985 | TURBO) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 89 560 54 66 859 Exhaust pipe 44 • (9388174) | 1 | |
| 2 | 88 22 322 54 66 891 Silencer 44 • (7539927) | 1 | |
| 3 | 54 66 149 Silencer 44 • (9379124) | 1 | |
| 4 | 88 22 207 Silencer 44 • (8975062) | 1 | |
| 5 | 93 94 685 Hook 44 • (9386848) | 1 | |
| 6 | 93 92 465 Rubber mounting 44 • (9388943) | 2 | |
| 7 | 93 28 105 Rubber mounting 44 | 4 | |
| 8 | 93 73 598 Shield 44 | 1 | |
| 9 | 93 86 269 Shield 44 | 1 | |
| 11 | 79 71 757 75 28 953 Screw 44 | 4 | |
| 12 | 81 25 130 Screw 44 | 4 | |
| 13 | 79 70 437 Cage nut 44 • (7970429) | 4 | |
| 14 | 79 67 953 11 900 429 Nut 44 | 8 | |
| 15 | 75 19 432 92 152 032 Nut 44 | 3 | |
| 16 | 93 88 588 Plug 44 | 1 |
