Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9000 1985?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9000 1985. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	93 93 455 40 19 535 Exhaust pipe 45	Exhaust pipe	45	1
2	93 92 598 47 50 030 Three way catalytic converter 1985-1987 • 45	Three way catalytic converter	1985-1987 45	1
2	44 40 020 Three way catalytic converter 45	Three way catalytic converter	45	1
3	54 66 107 Silencer 1985-1988 • 45 • (8975419)	Silencer	1985-1988 45 (8975419)	1
4	54 66 131 Silencer 1985-1988 • 45 • (8822256)	Silencer	1985-1988 45 (8822256)	1
6	93 92 465 Rubber mounting 45 • (9388943)	Rubber mounting	45 (9388943)	2
7	93 28 105 Rubber mounting 45	Rubber mounting	45	4
9	93 86 244 Shield 1985-1986 • 45	Shield	1985-1986 45	1
12	75 28 953 Screw -1987 • 45	Screw	-1987 45	12
13	79 67 953 11 900 429 Nut 45	Nut	45	8
14	79 70 437 Cage nut -1987 • 45	Cage nut	-1987 45	6
15	93 88 588 Plug 45	Plug	45	1
17	81 25 130 Screw 45	Screw	45	4
18	75 64 321 Heat shield 45	Heat shield	45	1
22	89 80 328 Gasket 45 • (9368572)	Gasket	45 (9368572)	2
23	79 67 870 79 79 503 Nut 45	Nut	45	4
24	79 77 374 Cage nut -1987 • 45	Cage nut	-1987 45	6
25	82 62 958 Screw -1987 • 45	Screw	-1987 45	2

Pos.	Part No.	Description	Usage	Qty
1	93 93 455 40 19 535 Exhaust pipe 45	Exhaust pipe	45	1
2	93 92 598 47 50 030 Three way catalytic converter 1985-1987 • 45	Three way catalytic converter	1985-1987 45	1
2	44 40 020 Three way catalytic converter 45	Three way catalytic converter	45	1
3	54 66 107 Silencer 1985-1988 • 45 • (8975419)	Silencer	1985-1988 45 (8975419)	1
4	54 66 131 Silencer 1985-1988 • 45 • (8822256)	Silencer	1985-1988 45 (8822256)	1
6	93 92 465 Rubber mounting 45 • (9388943)	Rubber mounting	45 (9388943)	2
7	93 28 105 Rubber mounting 45	Rubber mounting	45	4
9	93 86 244 Shield 1985-1986 • 45	Shield	1985-1986 45	1
12	75 28 953 Screw -1987 • 45	Screw	-1987 45	12
13	79 67 953 11 900 429 Nut 45	Nut	45	8
14	79 70 437 Cage nut -1987 • 45	Cage nut	-1987 45	6
15	93 88 588 Plug 45	Plug	45	1
17	81 25 130 Screw 45	Screw	45	4
18	75 64 321 Heat shield 45	Heat shield	45	1
22	89 80 328 Gasket 45 • (9368572)	Gasket	45 (9368572)	2
23	79 67 870 79 79 503 Nut 45	Nut	45	4
24	79 77 374 Cage nut -1987 • 45	Cage nut	-1987 45	6
25	82 62 958 Screw -1987 • 45	Screw	-1987 45	2

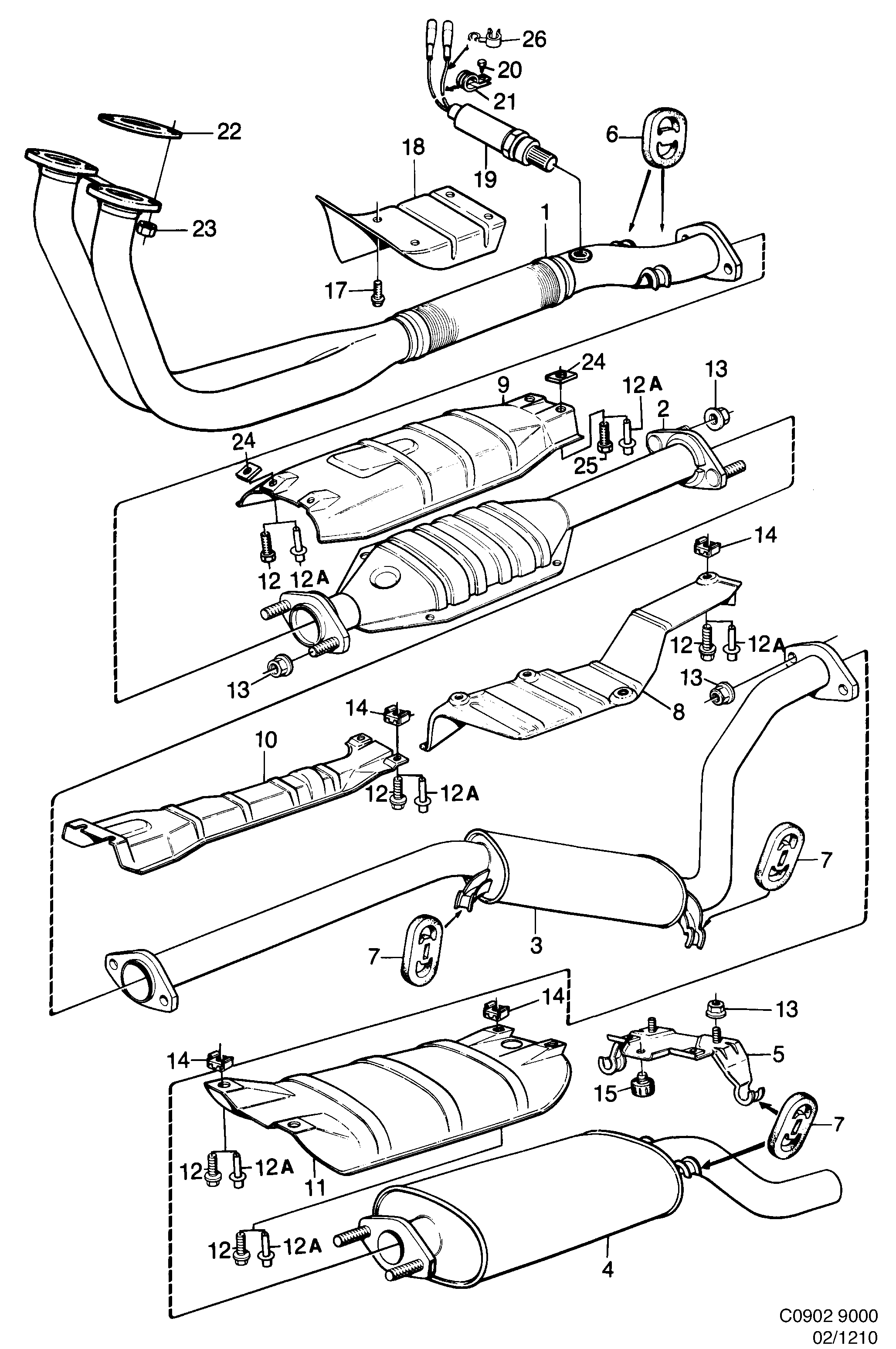

1210: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
