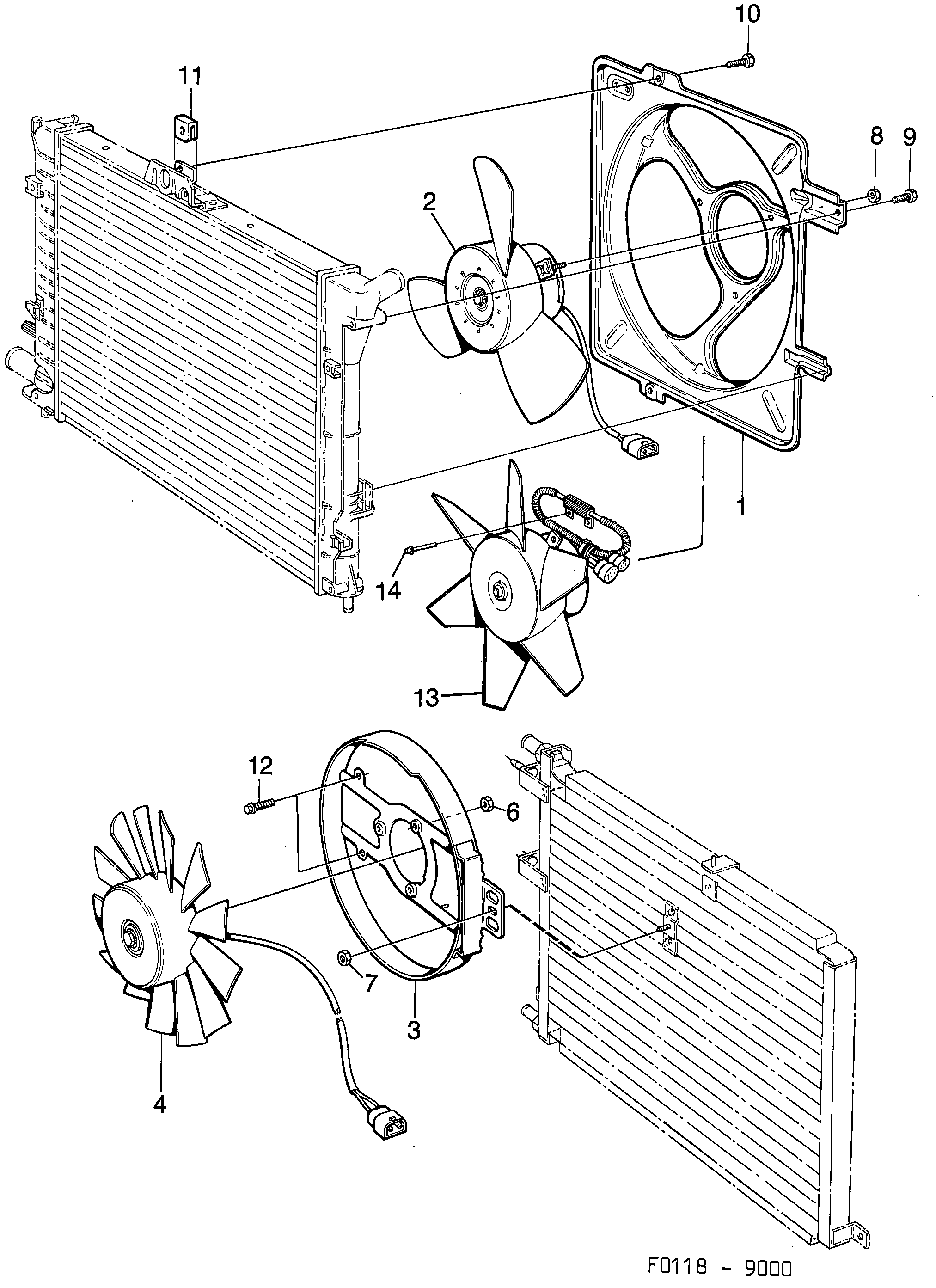

1270: Engine - Cooling system - Fan, etc
(1985 - 1989 | TURBO) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 92 918 Fan shroud 1988-1988 • 44 • (7552029) | 1 | |
| 2 | 93 82 144 Fan unit 44 • Fan motor and blade... | 1 | |
| 3 | 75 77 885 Fan shroud 1985-1986 • 44 • (7553977) | 1 | |
| 4 | 40 27 595 Fan motor -1988 • 44 • AC,(7550106) | 1 | |
| 6 | 79 73 365 92 150 136 Nut -1987 • 44 | 3 | |
| 7 | 80 29 555 81 51 227 Nut 1985-1985 • 44 | 1 | |
| 8 | 79 71 658 11 900 428 Nut -1987 • 44 | 3 | |
| 9 | 79 71 823 Screw 44 | 1 | |
| 10 | 79 22 800 Screw 44 | 2 | |
| 11 | 79 72 573 92 150 164 Clip nut 1985-1987 • 44 | 2 | |
| 12 | 79 72 607 92 153 146 Screw 44 | 2 | |
96 27 373 | X |
