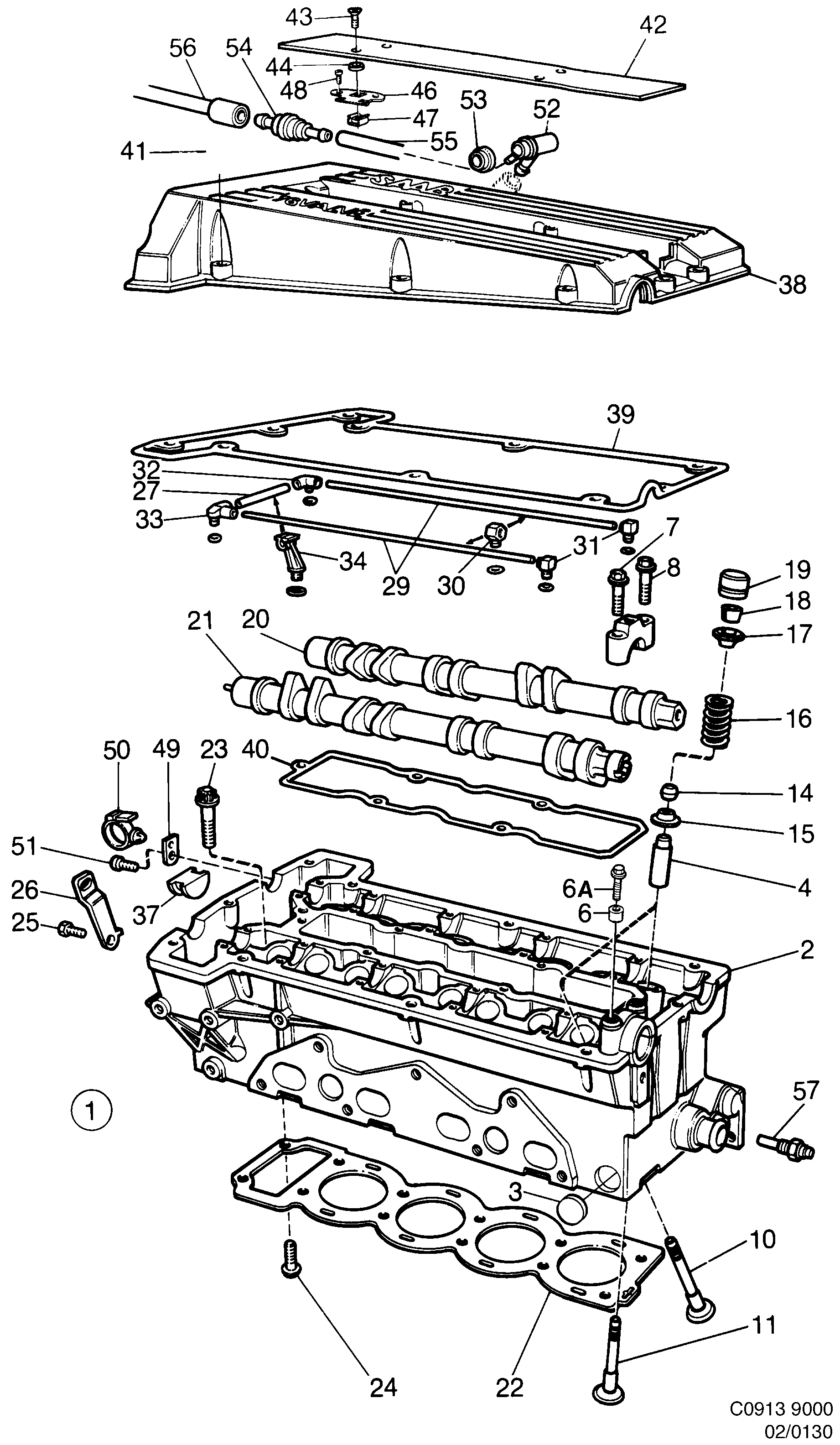

130: Engine - Short block - Cylinder head

(1985) | For 9000 (1985)

100%

(N°100)

Section 130

(N°190)

Pos.	Part No.	Description	Usage	Qty
1	75 86 100 Cylinder head (9358219) \| With valves....	Cylinder head	(9358219) \| With valves....	1
2	93 58 235 Cylinder head	Cylinder head		1
3	81 23 218 Sealing washer	Sealing washer		2
4	75 60 154 Valve guide	Valve guide		16
6	75 04 566 Guide sleeve	Guide sleeve		2
6A	75 04 178 92 151 833 Screw	Screw		2
7	81 25 213 Screw	Screw		12
8	93 58 870 Screw	Screw		8
10	75 62 002 74 84 801 Inlet valve INLET,(7500077)	Inlet valve	INLET,(7500077)	8
11	75 00 085 91 65 598 Exhaust valve OUTLET	Exhaust valve	OUTLET	8
14	75 00 713 Seal	Seal		16
15	75 05 134 Washer	Washer		16
16	93 58 391 91 29 651 Spring	Spring		16
17	75 01 349 Washer	Washer		16
18	75 15 547 Valve cone	Valve cone		32
19	93 57 716 55 557 388 Tappet	Tappet		16
20	75 60 808 Camshaft (7509227) \| Intake.	Camshaft	(7509227) \| Intake.	1
21	75 60 964 Camshaft (7509235) \| Exhaust.	Camshaft	(7509235) \| Exhaust.	1
22	75 16 529 91 81 348 Gasket	Gasket		1
23	75 18 335 59 55 794 Screw	Screw		10
24	81 25 189 Screw	Screw		2
25	75 04 749 Screw	Screw		1
26	75 21 222 Lifting eye	Lifting eye		1
27	75 08 468 Pipe	Pipe		1
29	75 08 476 Pipe	Pipe		2
30	74 80 429 Nipple (7518434)	Nipple	(7518434)	6
31	74 80 437 Nipple (7518442)	Nipple	(7518442)	2
32	74 80 445 Nipple (7518459)	Nipple	(7518459)	1
33	74 80 452 Nipple (7518467)	Nipple	(7518467)	1
34	74 80 460 Nipple (7519523)	Nipple	(7519523)	1
37	75 00 069 Plug	Plug		3
38	75 22 303 88 22 041 Valve cover	Valve cover		1
39	75 20 380 Gasket	Gasket		1
40	93 59 647 Gasket	Gasket		1
41	75 60 931 Screw	Screw		16
42	75 03 709 Cover	Cover		1
43	75 03 725 75 61 673 Screw Superseded by 7522790 and...	Screw	Superseded by 7522790 and...	2
44	81 23 465 53 31 673 E-circlip Superseded by 7522790 and...	E-circlip	Superseded by 7522790 and...	2
46	75 03 469 Bracket	Bracket		2
47	79 70 403 Cage nut	Cage nut		2
48	75 20 240 Screw	Screw		4
49	75 11 975 Bracket	Bracket		2
50	75 12 015 Tensioning band	Tensioning band		2
51	80 82 935 Screw (8082919)	Screw	(8082919)	2
52	75 17 048 Nipple	Nipple		1
53	75 15 190 95 49 593 Bushing (8360257)	Bushing	(8360257)	1
54	75 21 313 91 89 564 Positive crankcase ventilation valve	Positive crankcase ventilation valve		1
55	91 36 243 Vacuum hose L=85 MM \| Sold...	Vacuum hose	L=85 MM \| Sold...	1
56	91 36 243 Vacuum hose L=360 MM \| Sold...	Vacuum hose	L=360 MM \| Sold...	1
57	88 00 914 30 539 720 Sensor	Sensor		1
	88 17 512 Gasket kit Intake and exhaust system	Gasket kit Intake and exhaust system		X
	88 18 007 Gasket kit Intake and exhaust system	Gasket kit Intake and exhaust system		X
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X
