Question 1

Where to find the exploded diagram for Cooling system on my Saab 9000 1985?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9000 1985. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

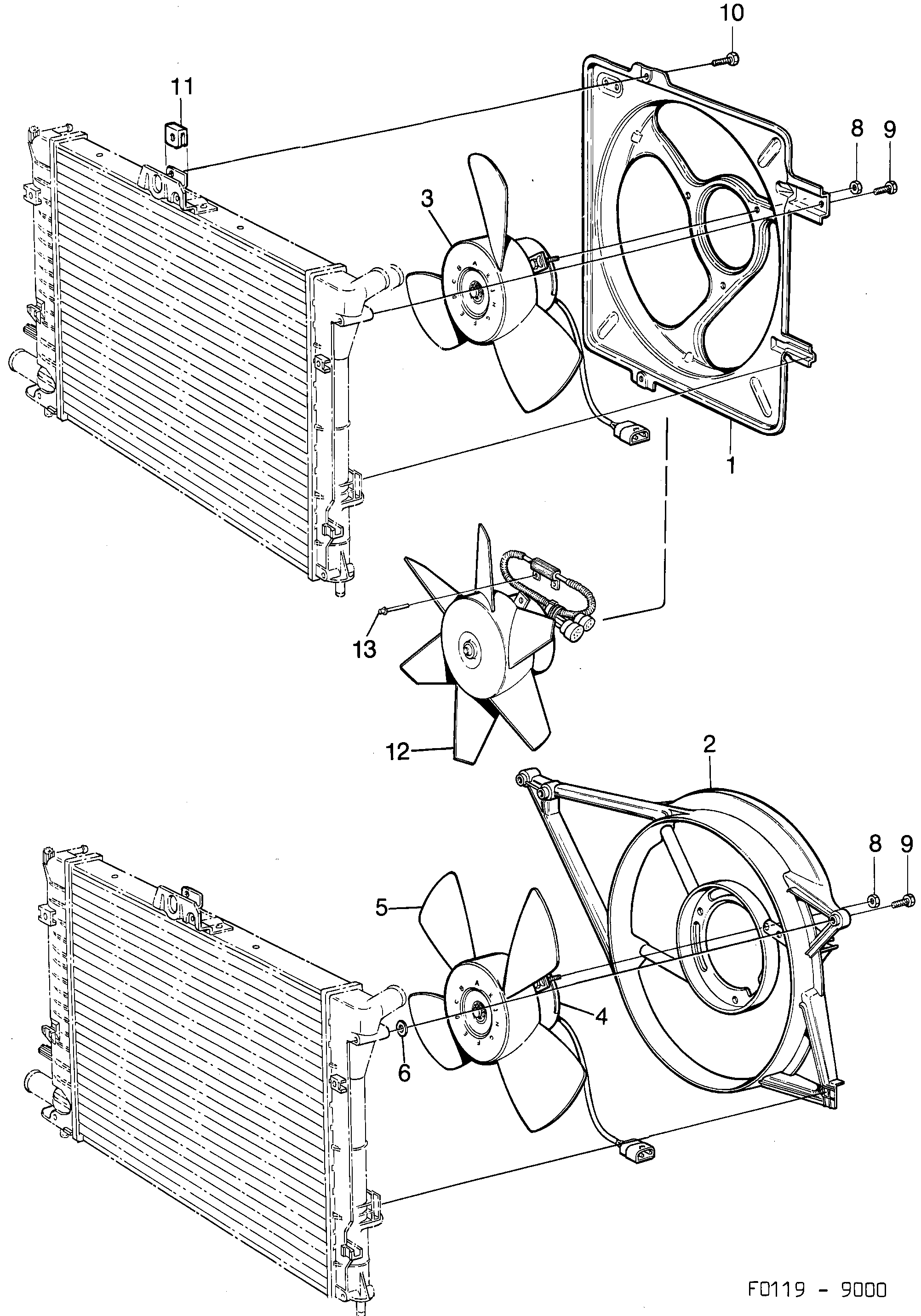

Pos.	Part No.	Description	Usage	Qty
1	75 92 918 Fan shroud 45 • (7552029) \| sheet metal	Fan shroud	45 (7552029) \| sheet metal	1
2	93 82 102 42 37 061 Fan shroud 45 • plastic	Fan shroud	45 plastic	1
3	93 82 144 Fan unit 45 • AC \| Fan motor...	Fan unit	45 AC \| Fan motor...	1
4	93 82 110 Fan motor 45 • Fan motor and blade...	Fan motor	45 Fan motor and blade...	1
5	75 41 725 Fan 45 • Not as separate spare...	Fan	45 Not as separate spare...	1
6	75 41 733 Clip 45 • Fan motor and blade...	Clip	45 Fan motor and blade...	1
8	79 71 658 11 900 428 Nut -1987 • 45	Nut	-1987 45	3
9	79 71 823 Screw 45	Screw	45	1
10	79 22 800 Screw 45	Screw	45	2
11	79 72 573 92 150 164 Clip nut 1985-1987 • 45	Clip nut	1985-1987 45	2

Pos.	Part No.	Description	Usage	Qty
1	75 92 918 Fan shroud 45 • (7552029) \| sheet metal	Fan shroud	45 (7552029) \| sheet metal	1
2	93 82 102 42 37 061 Fan shroud 45 • plastic	Fan shroud	45 plastic	1
3	93 82 144 Fan unit 45 • AC \| Fan motor...	Fan unit	45 AC \| Fan motor...	1
4	93 82 110 Fan motor 45 • Fan motor and blade...	Fan motor	45 Fan motor and blade...	1
5	75 41 725 Fan 45 • Not as separate spare...	Fan	45 Not as separate spare...	1
6	75 41 733 Clip 45 • Fan motor and blade...	Clip	45 Fan motor and blade...	1
8	79 71 658 11 900 428 Nut -1987 • 45	Nut	-1987 45	3
9	79 71 823 Screw 45	Screw	45	1
10	79 22 800 Screw 45	Screw	45	2
11	79 72 573 92 150 164 Clip nut 1985-1987 • 45	Clip nut	1985-1987 45	2

1300: Engine - Cooling system - Fan, etc
