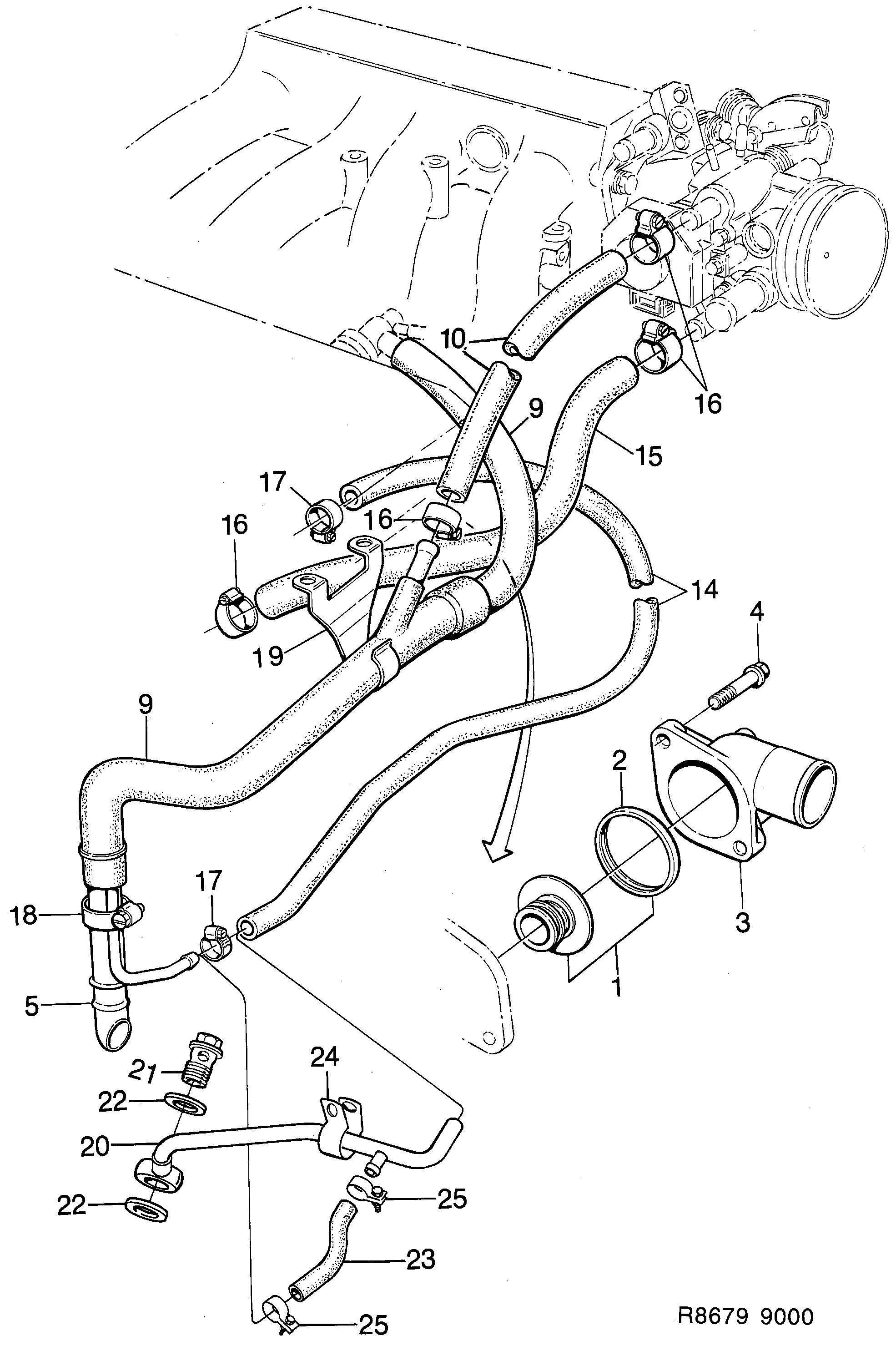

1480: Engine - Cooling system - Thermostat, etc
(1985 - 1989) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 1 | ||
| 1 | 88 17 538 | 1 | |
| 2 | 83 52 692 91 76 165 Gasket | 1 | |
| 3 | 75 00 218 Cover | 1 | |
| 4 | 81 25 189 Screw | 2 | |
| 5 | 75 22 493 Tube 1985-1986 | 1 | |
| 10 | 75 20 018 Hose TURBO | 1 | |
| 10 | 75 20 034 Hose I | 1 | |
| 14 | 75 20 026 Hose | 1 | |
| 15 | 75 20 034 Hose | 1 | |
| 16 | 79 63 515 90 572 589 Hose clamp | 4 | |
| 17 | 83 59 275 90 530 642 Hose clamp | 2 | |
| 18 | 79 63 523 79 70 064 Hose clamp | 1 | |
| 19 | 75 19 788 30 539 192 Bracket | 1 |
