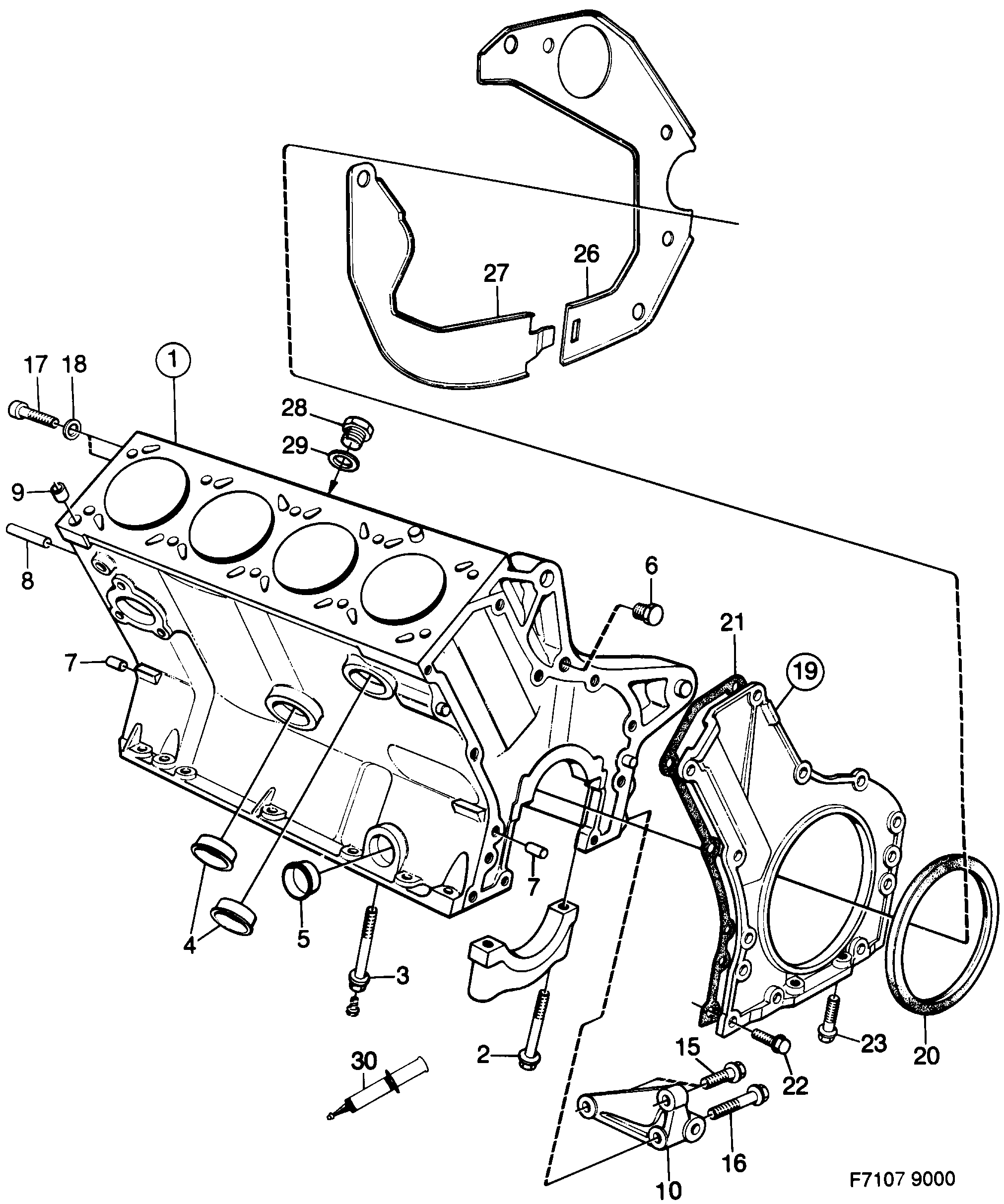

190: Engine - Short block - Cylinder block
(1985 - 1989) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 16 859 Cylinder block | 1 | |
| 2 | 83 52 502 91 28 687 Screw | 6 | |
| 3 | 93 08 537 Screw | 4 | |
| 5 | 81 23 218 Sealing washer 1985-1987 | 1 | |
| 6 | 83 48 047 Plug | 1 | |
| 7 | 83 66 007 Guide | 4 | |
| 8 | 80 34 761 Pin | 1 | |
| 9 | 83 46 470 Guide | 4 | |
| 10 | 93 57 203 Bracket | 1 | |
| 15 | 81 25 205 Screw | 2 | |
| 16 | 81 25 262 Screw | 1 | |
| 17 | 80 97 867 Screw 1985-1986 | 2 | |
| 18 | 80 73 223 Washer | 2 | |
| 19 | 75 16 248 Plate | 1 | |
| 20 | 93 50 158 55 557 240 Seal | 1 | |
| 21 | 75 63 679 Gasket 1985-1986 • (9354267) | 1 | |
| 22 | 81 25 163 Screw | 9 | |
| 23 | 81 25 189 Screw | 2 | |
| 26 | 93 88 653 Splash guard | 1 | |
| 26 | 93 89 990 Splash guard | 1 | |
| 27 | 93 88 661 Splash guard | 1 | |
| 28 | 75 64 222 75 63 042 Plug 1985-1988 • I | 1 | |
| 29 | 81 24 141 92 150 435 Gasket I | 1 | |
| 30 | 90 297 970 Flange sealant 50 ML | X |
