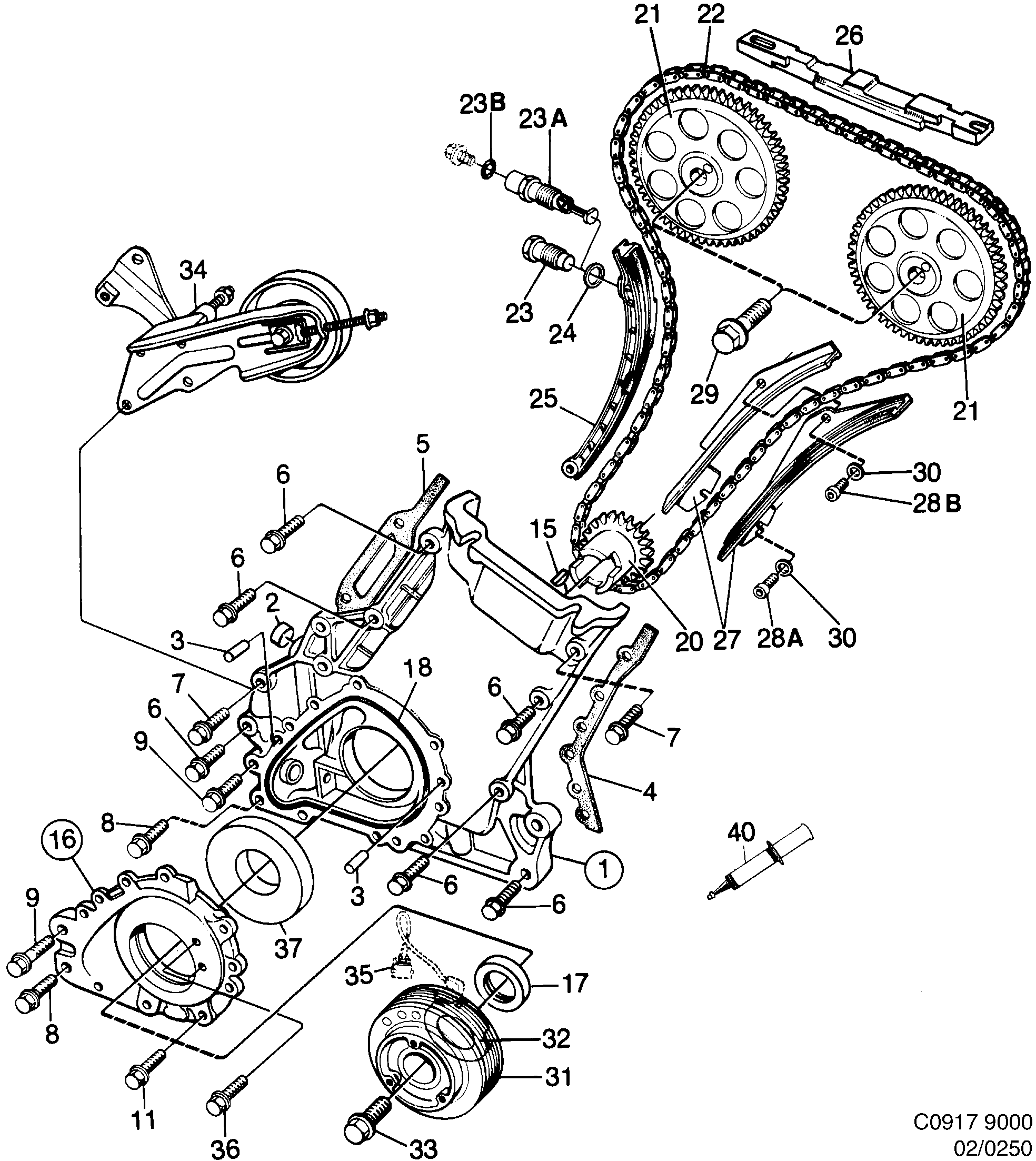

250: Engine - Short block - Transmission
(1985 - 1989) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 17 113 Cover | 1 | |
| 2 | 81 23 176 Plug | 1 | |
| 3 | 80 34 456 Pin | 2 | |
| 4 | 91 17 847 93 21 795 Gasket (7509367,7563646) | 1 | |
| 5 | 91 17 839 Gasket (7509375,7563653,9117060 | 1 | |
| 6 | 81 25 213 Screw | 6 | |
| 7 | 81 25 239 Screw | 3 | |
| 8 | 81 25 247 Screw | 1 | |
| 9 | 81 25 262 Screw | 1 | |
| 11 | 81 25 049 Screw | 8 | |
| 15 | 83 47 122 Key | 1 | |
| 16 | 75 18 848 Oil pump housing 1985-1988 | 1 | |
| 17 | 93 09 204 55 557 231 Seal | 1 | |
| 18 | 83 69 829 30 543 193 Seal | 1 | |
| 20 | 75 18 640 Chain gear | 1 | |
| 21 | 75 00 127 Chain gear | 2 | |
| 22 | 75 00 697 Chain | 1 | |
| 22 | 93 21 837 Chain ALTERNATIV | Open, with... | 1 | |
| 23 | 75 85 086 Chain tensioner 1985-1986 • (9358854) | 1 | |
| 24 | 75 08 690 Seal | 1 | |
| 25 | 75 00 150 88 58 276 Chain control | 1 | |
| 27 | 91 33 505 Chain control 1985-1986 • (7560253) | 1 | |
| 28A | 80 97 883 Screw 1985-1986 | 1 | |
| 28B | 80 97 883 Screw 1985-1986 | 1 | |
| 29 | 30 37 140 91 07 541 Screw | 2 | |
| 30 | 80 29 951 Washer | 2 | |
| 31 | 75 01 380 Pulley 1985-1986 | 1 | |
| 32 | Aperture discLighting | ||
| 32 | Aperture discIgnition system | ||
| 33 | 83 48 534 Screw | 1 | |
| 34 | Tension pulleySteering assembly | ||
| 35 | SensorLighting | ||
| 37 | Pump kitShort block | ||
| 40 | 90 297 970 Flange sealant 50 ML | X |
