Question 1

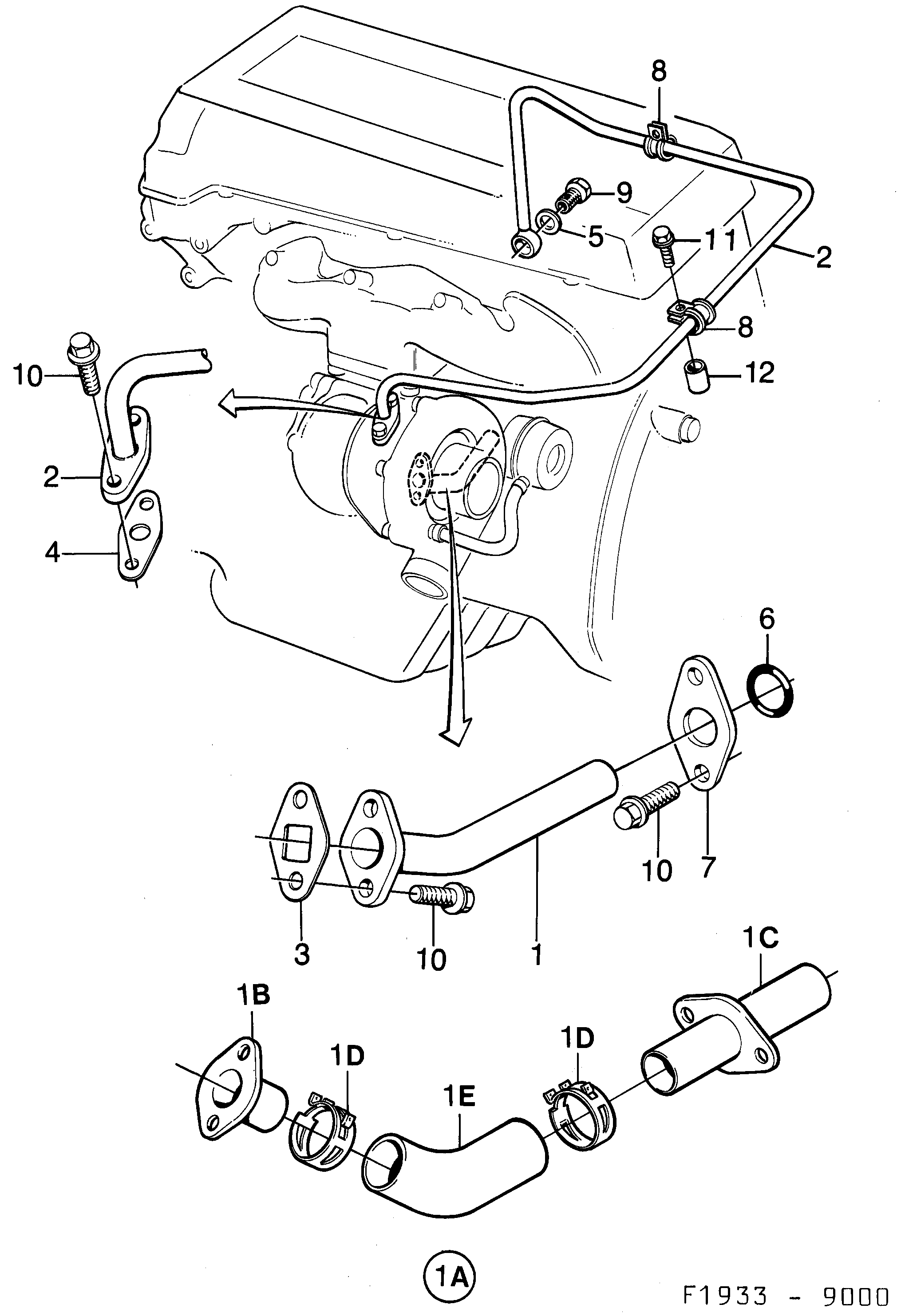

Where to find the exploded diagram for Lubricating system on my Saab 9000 1985?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lubricating system on Saab 9000 1985. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lubricating system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lubricating system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lubricating system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lubricating system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1B	74 81 062 Tube Not as separate spare...	Tube	Not as separate spare...	1
1C	74 81 088 Tube Not as separate spare...	Tube	Not as separate spare...	1
1D	75 86 050 Clamp Not as separate spare...	Clamp	Not as separate spare...	2
1E	91 18 506 Hose Not as separate spare...	Hose	Not as separate spare...	1
2	75 84 998 Tube (7505910)	Tube	(7505910)	1
2	75 67 910 Tube 1985-1986 • For cars with parted...	Tube	1985-1986 For cars with parted...	1
3	75 18 970 Gasket	Gasket		1
4	75 07 700 Gasket (2303279)	Gasket	(2303279)	1
5	81 24 141 92 150 435 Gasket	Gasket		2
6	34 89 937 O-ring 1985-1985	O-ring	1985-1985	1
7	75 17 741 Flange 1985-1985	Flange	1985-1985	1
8	17 54 506 Clamp	Clamp		2
9	81 23 903 92 150 977 Banjo screw	Banjo screw		1
10	81 25 163 Screw	Screw		6
11	79 70 288 Screw	Screw		1
11	79 71 757 75 28 953 Screw	Screw		1
12	93 90 121 Spacer	Spacer		1

Pos.	Part No.	Description	Usage	Qty
1B	74 81 062 Tube Not as separate spare...	Tube	Not as separate spare...	1
1C	74 81 088 Tube Not as separate spare...	Tube	Not as separate spare...	1
1D	75 86 050 Clamp Not as separate spare...	Clamp	Not as separate spare...	2
1E	91 18 506 Hose Not as separate spare...	Hose	Not as separate spare...	1
2	75 84 998 Tube (7505910)	Tube	(7505910)	1
2	75 67 910 Tube 1985-1986 • For cars with parted...	Tube	1985-1986 For cars with parted...	1
3	75 18 970 Gasket	Gasket		1
4	75 07 700 Gasket (2303279)	Gasket	(2303279)	1
5	81 24 141 92 150 435 Gasket	Gasket		2
6	34 89 937 O-ring 1985-1985	O-ring	1985-1985	1
7	75 17 741 Flange 1985-1985	Flange	1985-1985	1
8	17 54 506 Clamp	Clamp		2
9	81 23 903 92 150 977 Banjo screw	Banjo screw		1
10	81 25 163 Screw	Screw		6
11	79 70 288 Screw	Screw		1
11	79 71 757 75 28 953 Screw	Screw		1
12	93 90 121 Spacer	Spacer		1

370: Engine - Lubricating system - Oil pipe
