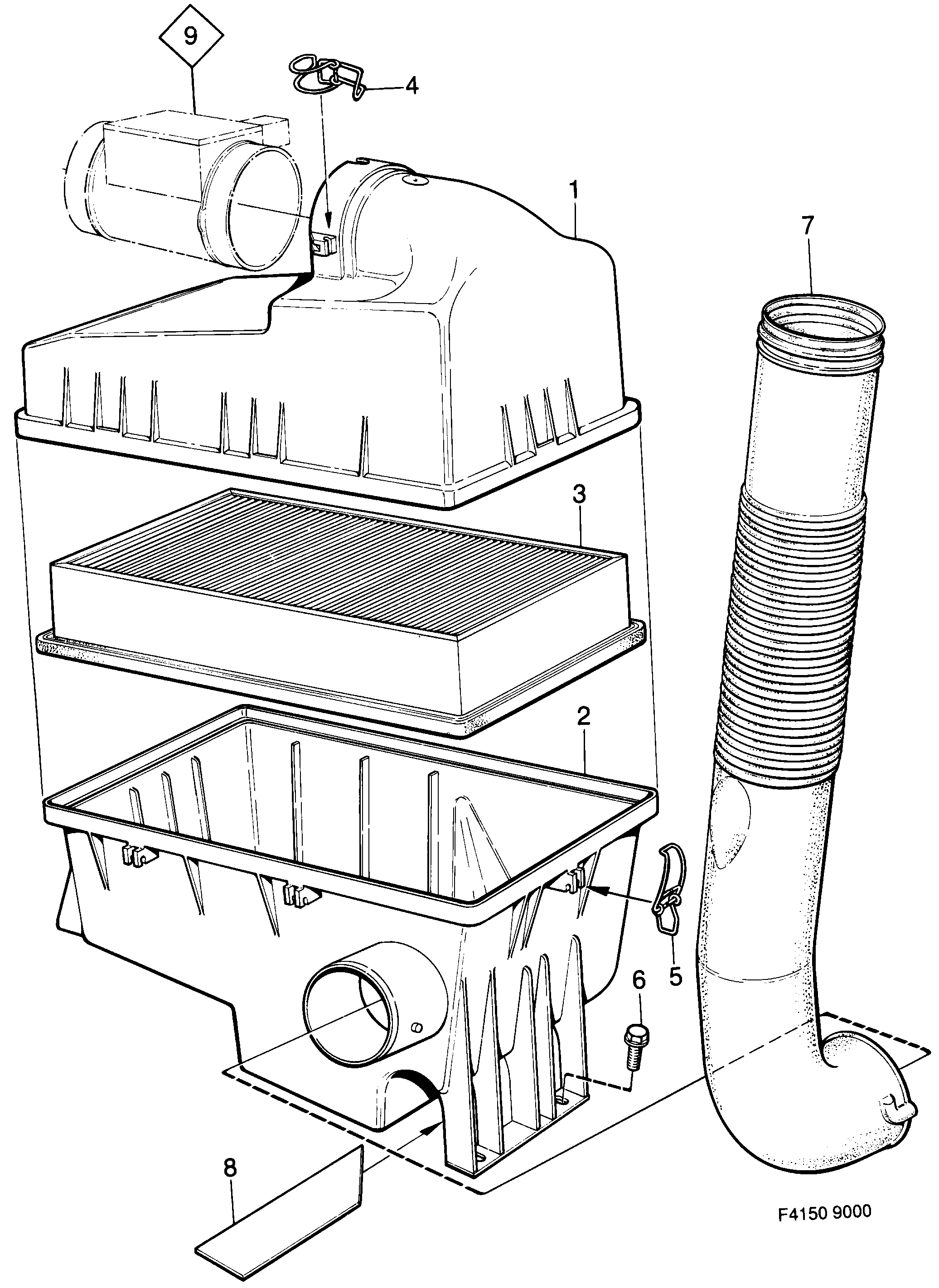

400: Engine - Fuel system - Air cleaner - engine
(1985 - 1987 | TURBO) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 82 524 Air cleaner 44 | 1 | |
| 2 | 93 85 147 Air cleaner housing 44 | 1 | |
| 3 | 93 81 971 Air filter 44 | 1 | |
| 4 | 93 75 601 Clamp 44 | 2 | |
| 5 | 93 77 920 Clamp 44 | 6 | |
| 6 | 79 72 888 Screw 44 | 4 | |
| 7 | 93 89 271 Tube 44 | 1 | |
| 8 | 93 88 018 Stay pad 44 | 1 | |
| 9 | Mass air flow sensorFuel system 44 • Gearbox: 02 |
