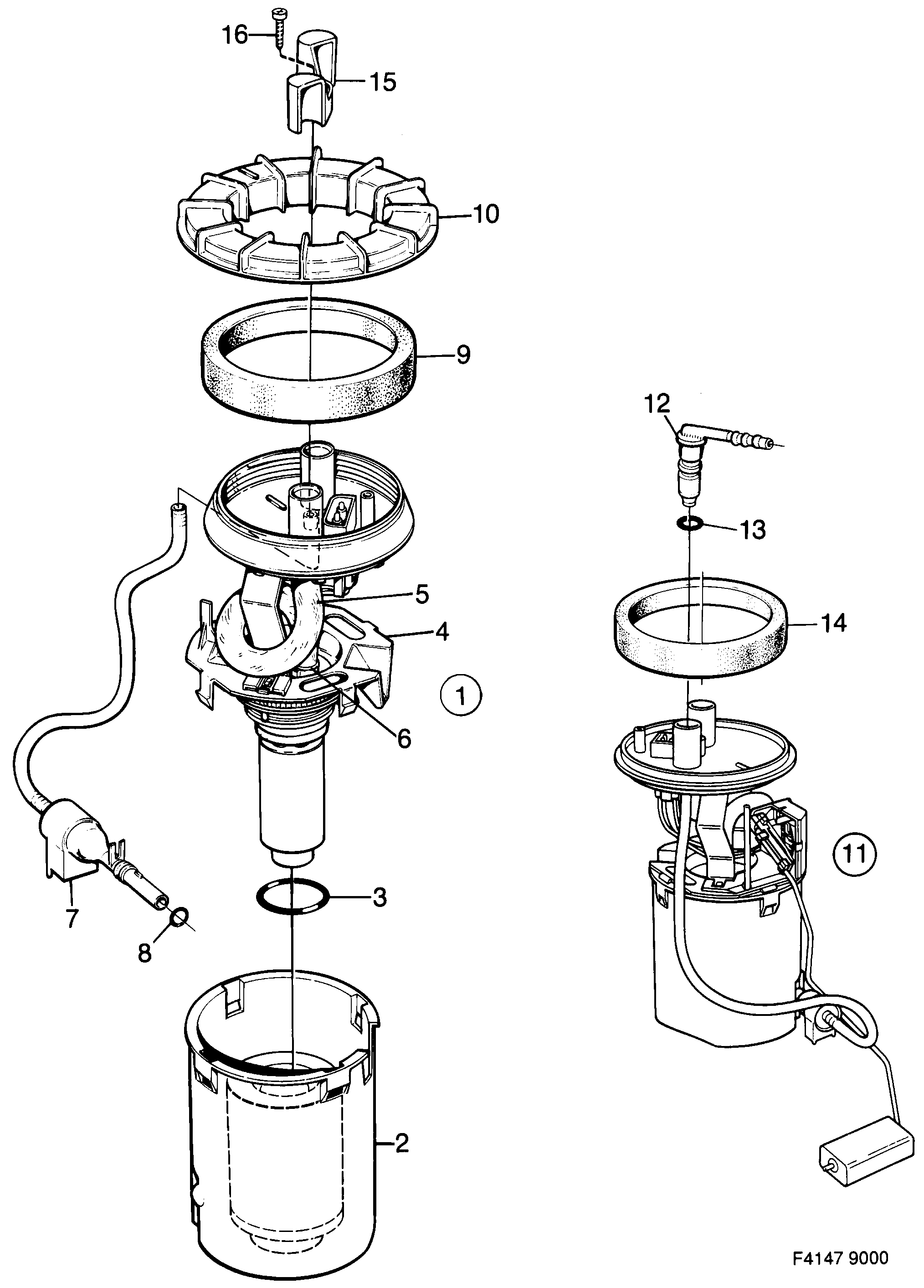

640: Engine - Fuel system - Fuel pump

VIN J1006799-, J2003029-, J8000558-, I WITHOUT CATALYTIC CONVERTER. | VIN J1026230--, J2015406--, J8001594--. I WITH CATALYTIC CONVERTER.

Previous (N°610)

Section 640

Next (N°670)

Pos.	Part No.	Description	Usage	Qty
1	75 90 854 Fuel pump -1988 • I • VIN J1006799-, J2003029-, J8000558-,...	Fuel pump	-1988 I VIN J1006799-, J2003029-, J8000558-,...	1
2	89 80 021 Reservoir 45	Reservoir	45	1
3	75 91 902 O-ring 45	O-ring	45	1
4	89 80 039 Fuel pump -1989 • 45 • Not as separate spare...	Fuel pump	-1989 45 Not as separate spare...	1
5	40 19 998 Hose 45	Hose	45	1
6	79 68 308 Hose clamp 45	Hose clamp	45	2
7	89 80 047 Ejector unit 45	Ejector unit	45	1
8	93 94 602 O-ring 45	O-ring	45	1
9	93 94 529 Seal 45	Seal	45	1
10	93 94 503 Cover 45	Cover	45	1
12	41 61 766 Non-return valve 45	Non-return valve	45	1
13	79 74 546 O-ring 45	O-ring	45	2
14	93 94 529 Seal 45	Seal	45	1
15	93 94 628 Lock brace 45	Lock brace	45	1
16	79 71 344 Screw 45	Screw	45	1
	40 20 848 Hose Intake and exhaust system 45	Hose Intake and exhaust system	45	X
