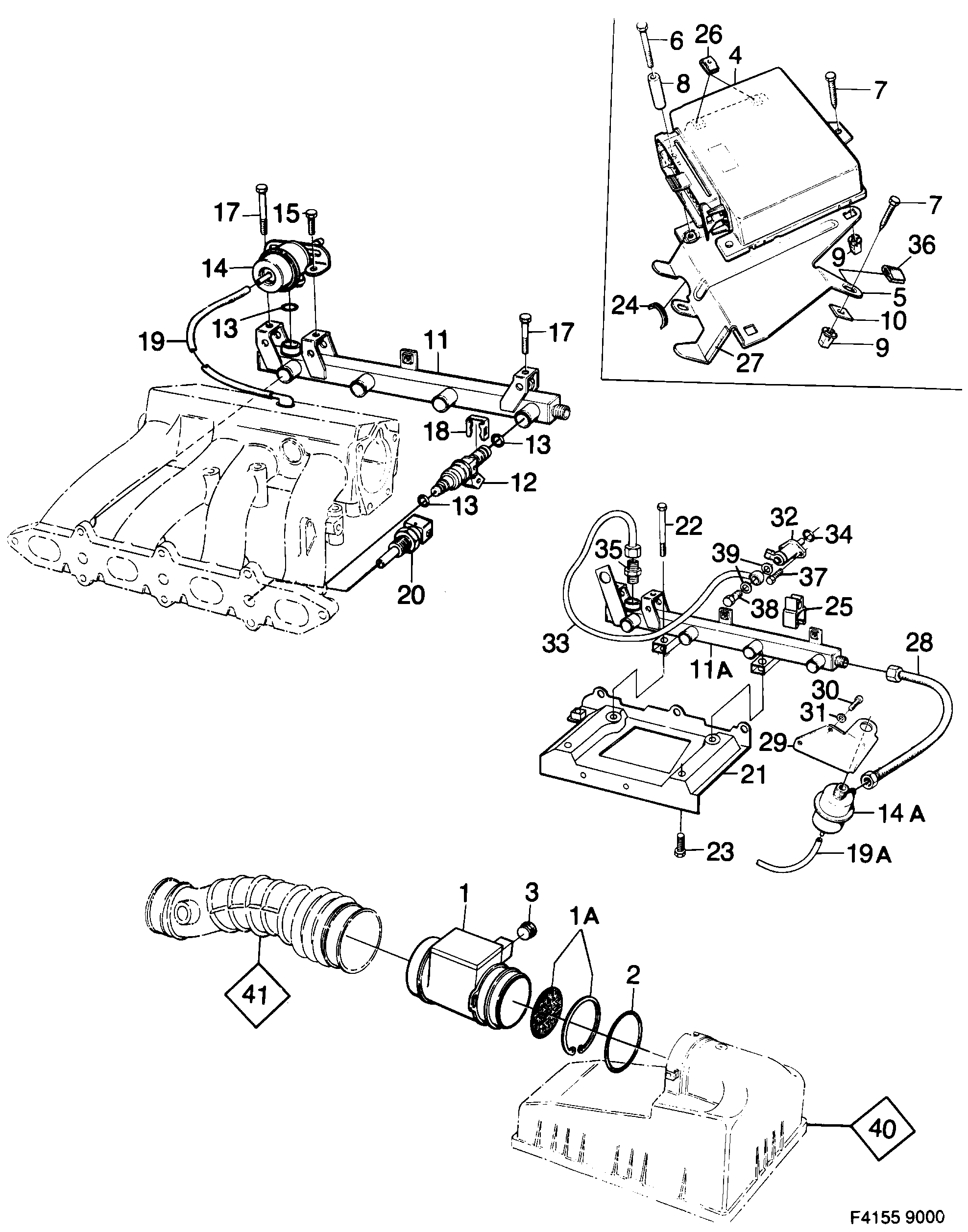

670: Engine - Fuel system - Mass air flow sensor
(1985 - 1989) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 75 643 Mass air flow sensor 1985-1988 • TURBO • Also available as exchange... | 1 | |
| 1A | 75 35 446 Service kit | 1 | |
| 2 | 79 74 306 O-ring | 1 | |
| 3 | 75 25 710 Plug Without catalytic converter. | 1 | |
| 3 | 93 83 076 Plug 1985-1988 • With catalytic converter. | 1 | |
| 4 | 93 88 471 Electronic unit 1985-1985 • Also available as exchange... | 1 | |
| 5 | 93 87 168 Bracket 1985-1986 | 1 | |
| 6 | 80 21 743 Screw | 1 | |
| 7 | 79 72 672 Screw 1985-1987 | 5 | |
| 8 | 93 87 895 Spacer sleeve 1985-1987 | 1 | |
| 9 | 79 75 261 Nut | 5 | |
| 10 | 93 89 198 Stay pad | 5 | |
| 11 | 75 86 456 Tube 1985-1986 • (7521461) | 1 | |
| 11A | 75 86 464 Tube 1985-1986 • (7564081) | For cars... | 1 | |
| 12 | 75 60 170 Injection valve TURBO | 4 | |
| 12 | 75 60 162 Injection valve I | 4 | |
| 13 | 75 61 210 O-ring | 9 | |
| 14 | 75 18 681 Regulator 1985-1985 | 1 | |
| 15 | 80 19 887 Screw | 1 | |
| 17 | 80 21 974 Screw 1985-1987 | 2 | |
| 18 | 93 56 486 Clamp | 4 | |
| 19 | 91 36 243 Vacuum hose 1985-1985 • L=565 MM | Sold... | 1 | |
| 20 | 93 57 021 Temperature sensor | 1 | |
| 20 | 75 63 562 Sensor For TURBO with catalytic... | 1 | |
| 21 | 75 64 073 Bracket 1985-1987 • For cars with parted... | 1 | |
| 22 | 75 66 730 Screw 1985-1987 • For cars with parted... | 2 | |
| 23 | 81 25 155 55 562 121 Screw 1985-1986 • For cars with parted... | 2 | |
| 25 | 75 39 950 Clamp | 1 | |
| 26 | 73 99 355 Clip | 2 | |
| 27 | 75 35 487 Protecting moulding | 1 | |
| 37 | 75 07 072 Screw | 2 | |
| 38 | 83 20 319 Banjo bolt | 1 | |
| 39 | 89 81 987 Seal | 2 | |
| 40 | Air cleaner housingShort block 1985-1987 • TURBO • Gearbox: M | ||
| 40 | Air cleaner housingLubricating system TURBO • Gearbox: A | ||
| 41 | TURBO | ||
91 36 243 Vacuum hose L=5000 MM | Sold... | X |
