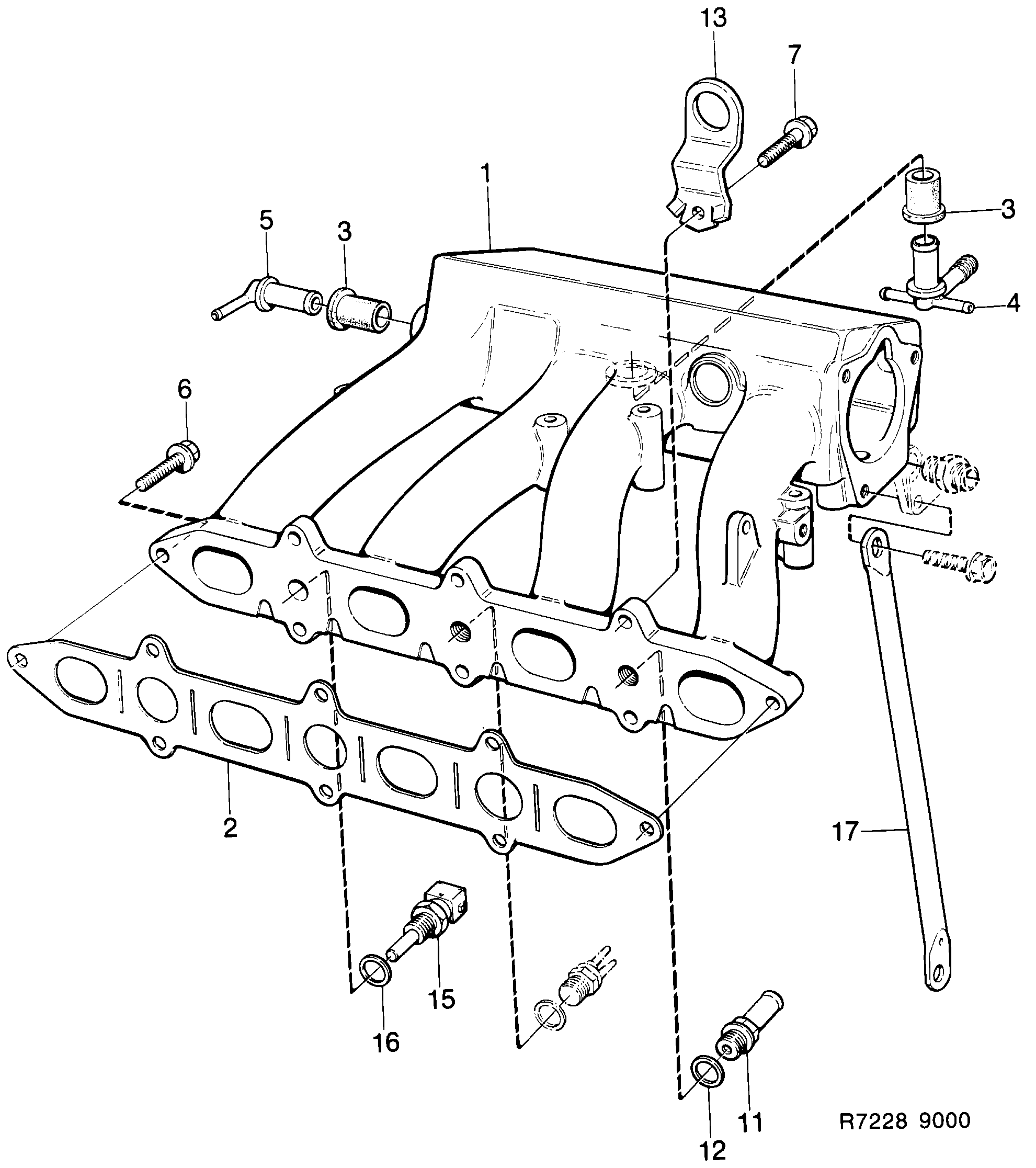

730: Engine - Intake and exhaust system - Intake manifold
(1985) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 17 006 Intake manifold | 1 | |
| 2 | 75 15 885 75 84 436 Gasket | 1 | |
| 3 | 75 15 208 Bushing | 2 | |
| 4 | 75 22 477 Nipple | 1 | |
| 5 | 83 59 937 Nipple | 1 | |
| 6 | 81 25 197 Screw | 7 | |
| 7 | 81 25 205 Screw | 1 | |
| 11 | 75 88 098 Nipple (7517634) | 1 | |
| 12 | 81 24 141 92 150 435 Gasket | 1 | |
| 13 | 75 21 230 Lifting eye | 1 | |
| 15 | 93 57 021 Temperature sensor | 1 | |
| 16 | 83 26 704 Seal | 1 | |
| 17 | 75 17 444 Brace | 1 |
