Question 1

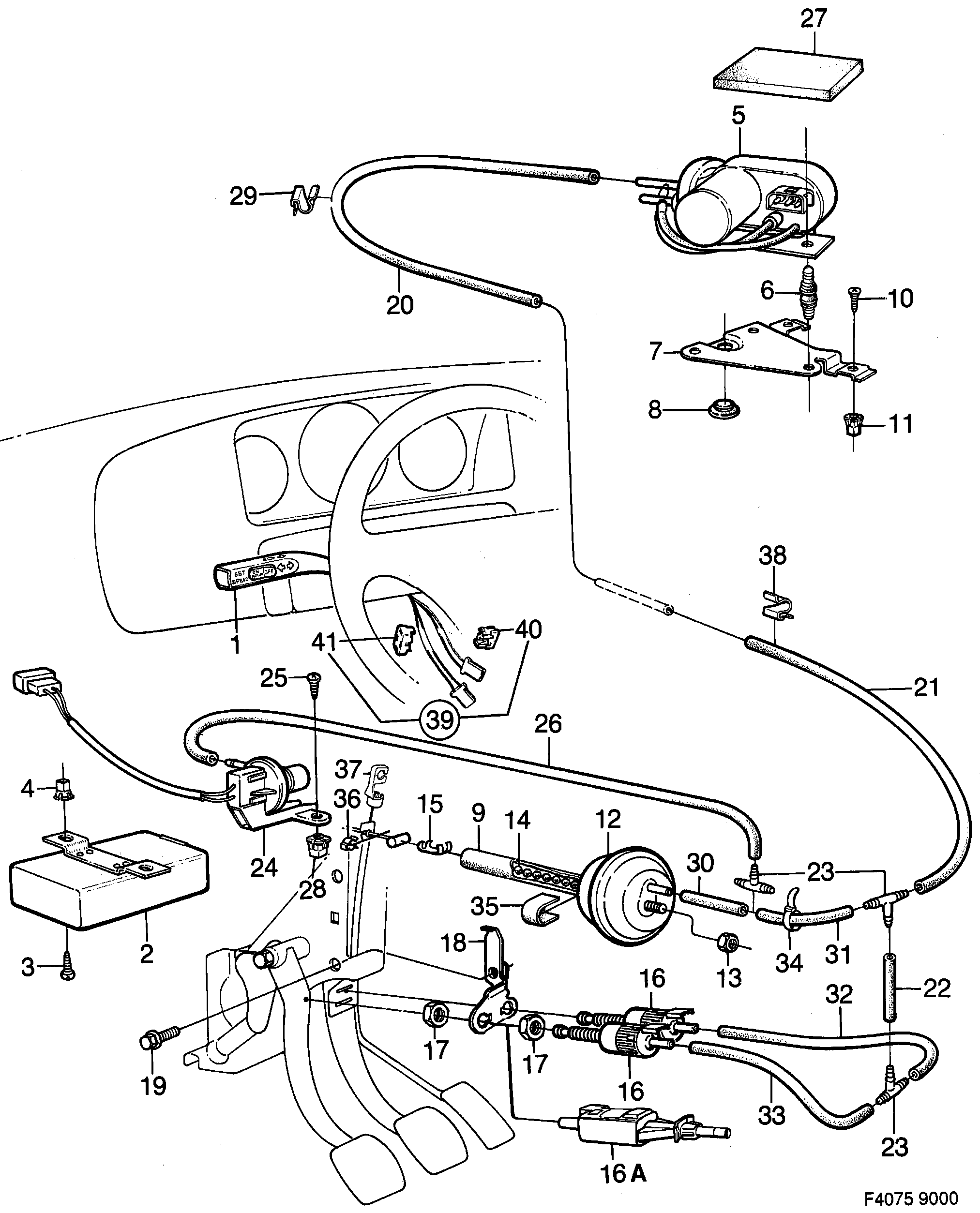

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1985?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1985. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	SwitchElectric equipment, other	SwitchElectric equipment, other
2	85 87 016 Electronic unit 1985-1986	Electronic unit	1985-1986	1
3	79 22 891 Screw 1985-1987	Screw	1985-1987	2
4	79 75 261 Nut 1985-1987	Nut	1985-1987	2
5	85 87 024 Vacuum pump (9505991) \| Cars before...	Vacuum pump	(9505991) \| Cars before...	1
6	95 55 194 Suspension	Suspension		3
7	95 06 858 Bracket 1985-1985 • Cars before VIN F4001938,...	Bracket	1985-1985 Cars before VIN F4001938,...	1
8	82 06 096 Plug	Plug		1
10	79 22 891 Screw	Screw		2
11	79 75 261 Nut	Nut		2
12	95 12 302 Vacuum regulator	Vacuum regulator		1
13	80 74 288 11 900 440 Nut	Nut		1
14	85 87 081 Chain	Chain		1
14	40 61 917 Chain	Chain		1
15	85 87 099 Clamp	Clamp		1
16	95 12 294 Contact 1985-1988	Contact	1985-1988	2
17	85 66 259 Nut 1985-1988	Nut	1985-1988	4
18	95 06 882 Bracket 1985-1988	Bracket	1985-1988	1
19	79 71 757 75 28 953 Screw	Screw		1
20	95 66 548 Hose 1985-1985 • (8599458)	Hose	1985-1985 (8599458)	1
21	95 16 337 Hose 1985-1987	Hose	1985-1987	1
22	85 90 689 95 66 423 Hose L=210 MM	Hose	L=210 MM	1
23	85 87 107 Manifold -1988	Manifold	-1988	3
24	85 98 195 Vacuum switch 1985-1987	Vacuum switch	1985-1987	1
25	79 22 818 Screw 1985-1985	Screw	1985-1985	2
26	95 16 329 Hose LHD	Hose	LHD	1
26	85 90 689 95 66 423 Hose RHD	Hose	RHD	1
30	95 66 381 Hose (8587354)	Hose	(8587354)	1
31	95 66 381 Hose TURBO • (8587354)	Hose	TURBO (8587354)	1
32	85 87 347 Hose	Hose		1
33	85 87 347 Hose	Hose		1
33	95 16 337 Hose 1985-1987 • I, TURBO	Hose	1985-1987 I, TURBO	1
39	95 60 012 Cable joint 1985-1985	Cable joint	1985-1985	1
