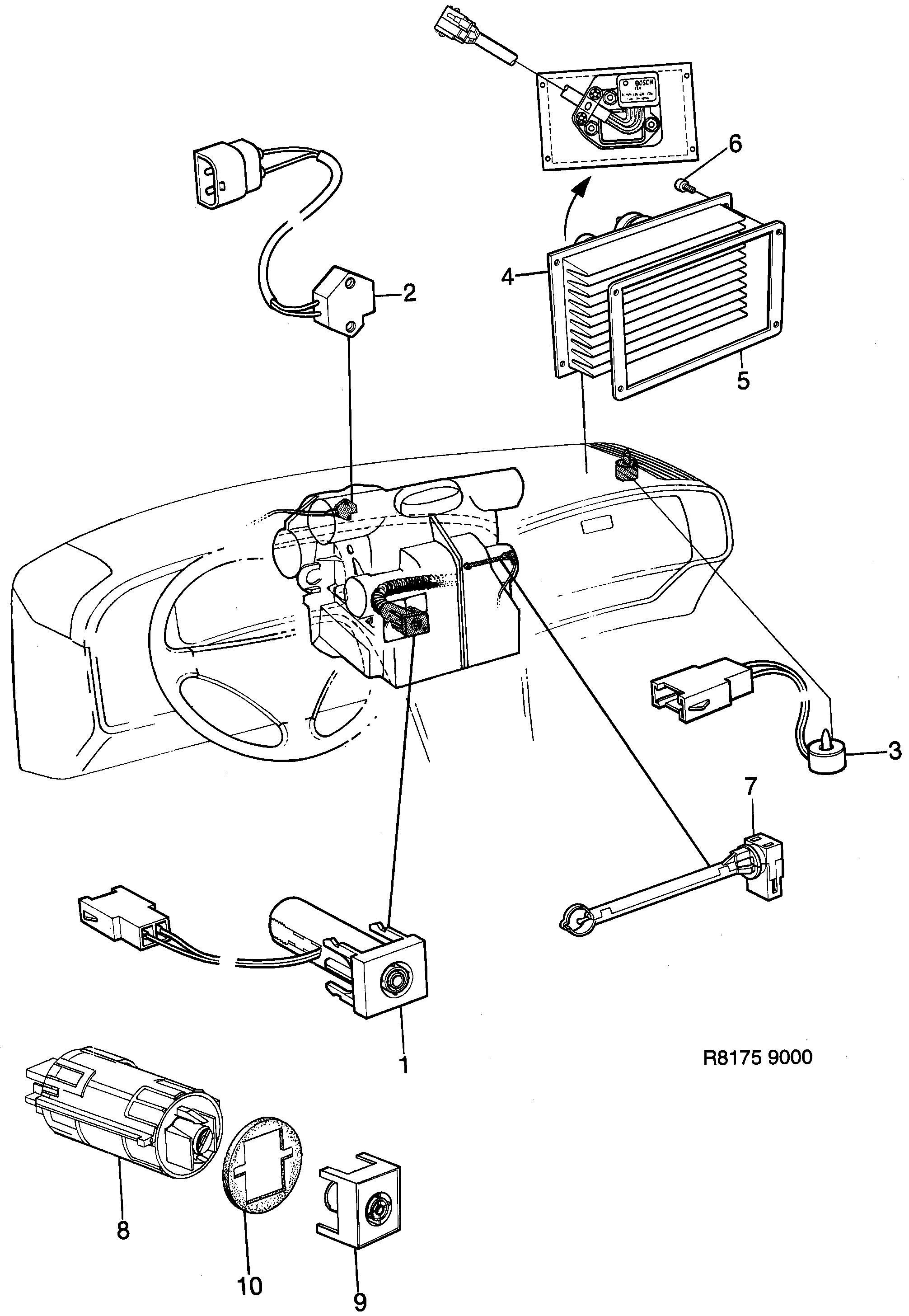

1090: Electrical, general - Electric equipment, other - Sensor ACC
(1985 - 1989) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 96 22 747 Sensor 1985-1986 • cabin temperature | 1 | |
| 2 | 96 23 265 Sensor outdoor air temperature | 1 | |
| 3 | 96 26 375 Sensor sunlight intensity | 1 | |
| 3 | 96 28 033 Sensor sunlight intensity | 1 | |
| 4 | 96 22 788 Control unit -1988 | 1 | |
| 5 | 96 25 823 Seal -1988 | 1 | |
| 6 | 79 22 214 Screw | 4 | |
| 7 | 96 22 762 Sensor mixed-air temperature | 1 | |
Servo unitHeating and ventilation | |||
Control panelHeating and ventilation |
