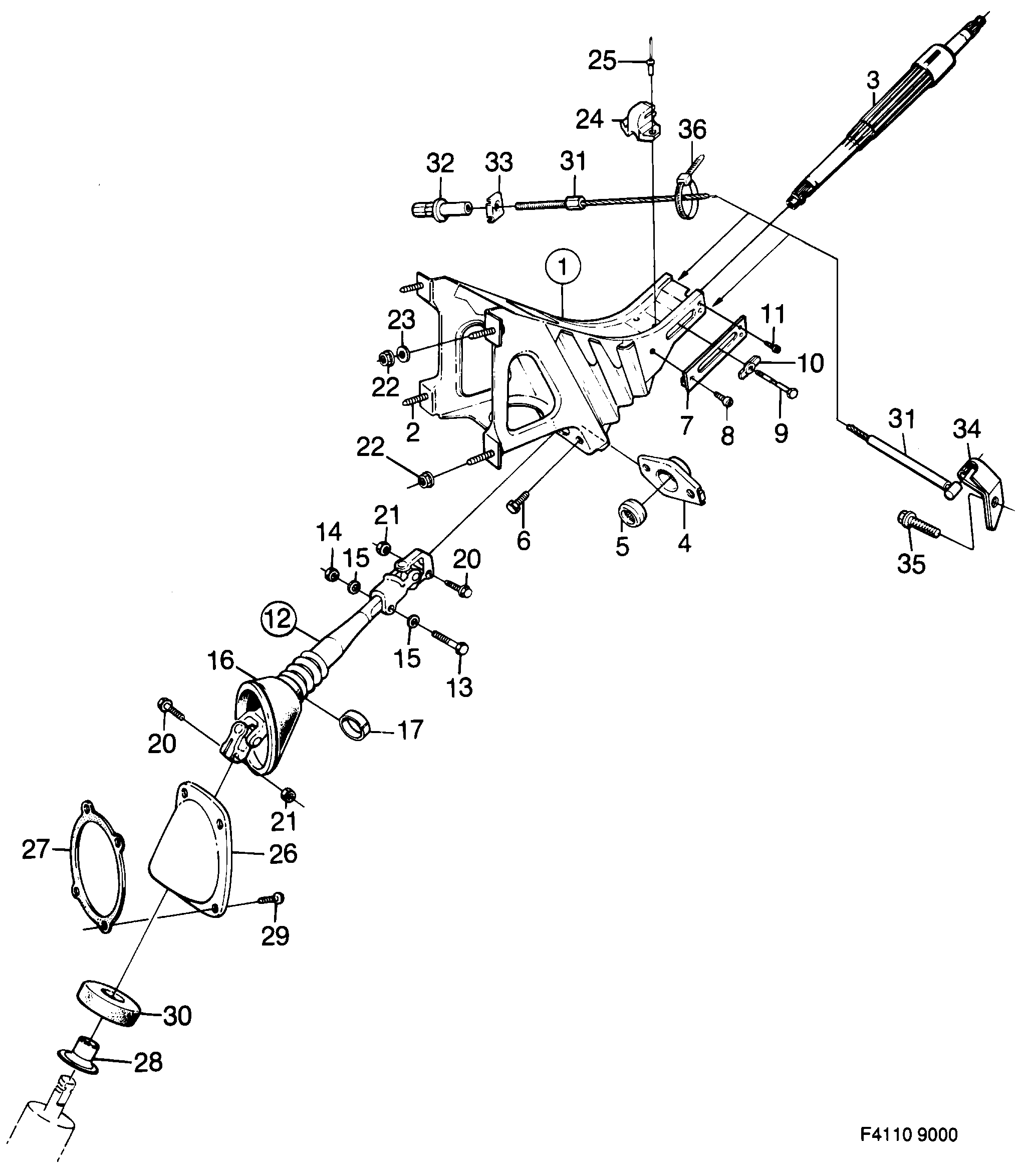

190: Steering - Steering assembly - Countershaft - Bracket
(1985 - 1989) | For 9000 (1985)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 73 448 Bracket LHD • (8966053,8969917) | 1 | |
| 1 | 40 02 994 30 565 428 Bracket AIR-BAG | 1 | |
| 1 | 89 73 455 Bracket RHD • (8966061) | 1 | |
| 2 | 89 54 497 Screw 1985-1985 | 4 | |
| 3 | Steering shaftSteering assembly | ||
| 4 | 89 52 194 Bearing housing | 1 | |
| 5 | 89 56 104 Needle bearing | 1 | |
| 6 | 73 99 934 Screw (8082919) | 2 | |
| 7 | 89 63 332 89 71 343 Slide rail -1988 | 2 | |
| 7 | 89 71 657 89 71 343 Slide rail AIR-BAG | 2 | |
| 8 | 79 73 761 79 74 512 Screw 1985-1986 | 2 | |
| 9 | ScrewSteering assembly | ||
| 10 | SpacerSteering assembly | ||
| 11 | 79 73 753 49 40 292 Screw | 4 | |
| 12 | 89 67 549 73 99 934 Countershaft 1988-1988, RHD • I | 1 | |
| 13 | 79 72 334 79 85 898 Hexagon screw (8083958) | 1 | |
| 14 | 79 68 415 Lock nut (7965767) | 1 | |
| 15 | 80 29 985 92 153 033 Washer | 1 | |
| 16 | 89 56 252 48 46 408 Bellows | 1 | |
| 17 | 40 04 206 40 01 400 Bushing 1985-1988 | 1 | |
| 20 | 79 72 334 79 85 898 Hexagon screw | 2 | |
| 21 | 79 68 415 Lock nut | 2 | |
| 22 | 79 74 371 Nut 1985-1987 | 4 | |
| 24 | 89 55 809 Bracket | 1 | |
| 25 | 79 61 675 Rivet | 2 | |
| 26 | 89 56 211 Protecting casing | 1 | |
| 27 | 89 56 245 Seal | 2 | |
| 28 | 89 56 534 Bushing | 1 | |
| 29 | 79 71 294 Screw | 4 | |
| 30 | 89 67 572 Seal | 1 | |
| 31 | 95 86 900 Cable AIR-BAG | 1 | |
| 32 | 91 01 221 Adjusting nut AIR-BAG | 1 | |
| 33 | 95 87 171 Washer AIR-BAG | 1 | |
| 34 | 95 86 918 Bracket AIR-BAG | 1 | |
| 35 | 79 75 113 Screw AIR-BAG | 1 | |
| 36 | 79 71 864 Tensioning band AIR-BAG | 1 |
