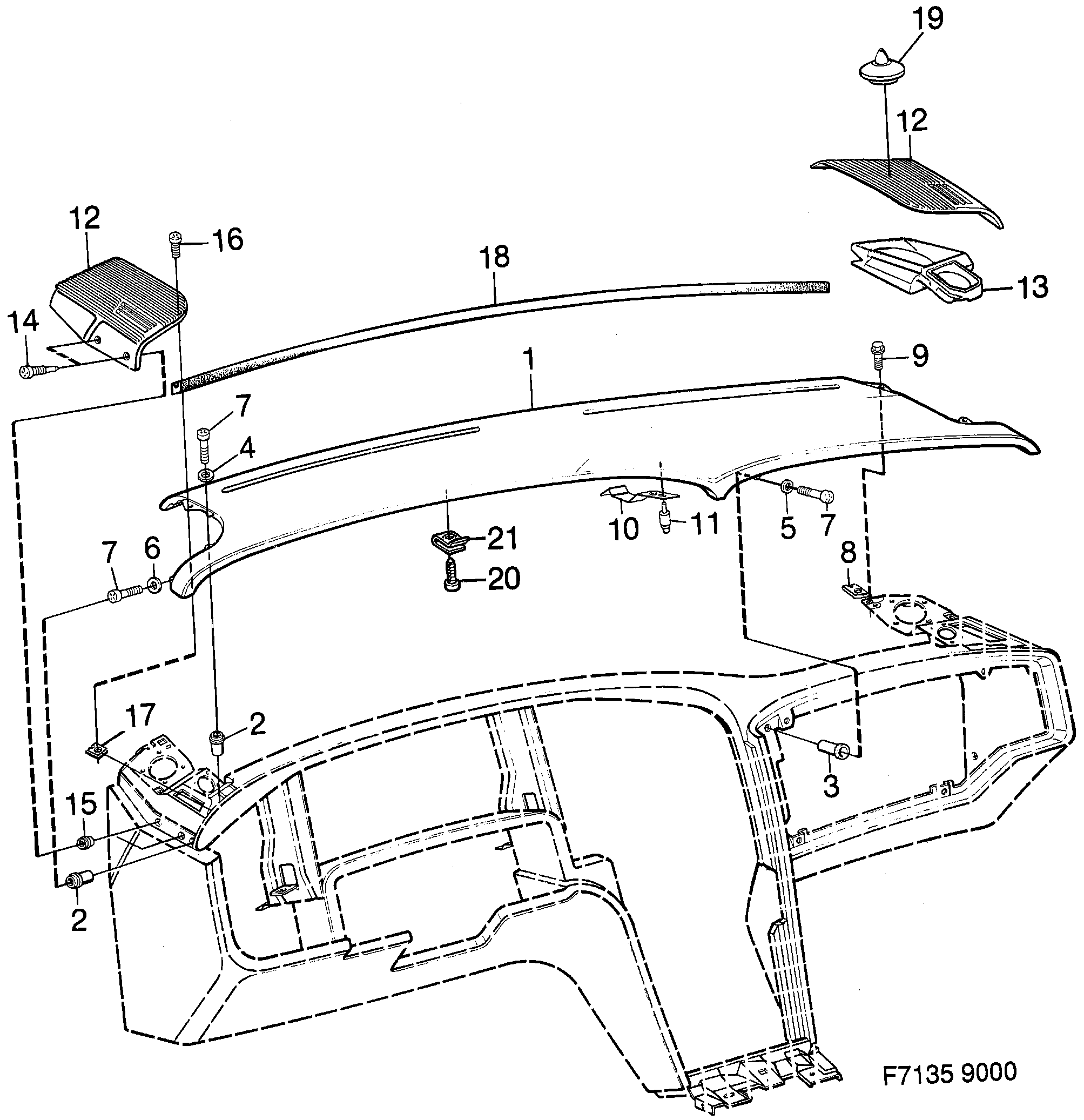

100: Car body, internal - Dashboard - Upper section

(1985 - 1989) | For 9000 (1985)

100%

(N°1420)

Section 100

(N°130)

Pos.	Part No.	Description	Usage	Qty
1	40 80 206 Cover -1988, LHD • (9768524) (9570318 \| Red	Cover	-1988, LHD (9768524) (9570318 \| Red	1
1	97 68 565 Cover -1987, RHD • Red	Cover	-1987, RHD Red	1
1	97 68 540 Cover 1985-1986 • Blue	Cover	1985-1986 Blue	1
1	97 68 581 Cover 1985-1986, RHD • Blue	Cover	1985-1986, RHD Blue	1
1	97 68 532 Cover 1985-1986 • Yellow.	Cover	1985-1986 Yellow.	1
1	97 68 573 Cover 1985-1986, RHD • Yellow.	Cover	1985-1986, RHD Yellow.	1
1	96 79 762 Cover (9798489,9570300) \| Brown	Cover	(9798489,9570300) \| Brown	1
2	97 55 729 Nut 1985-1986	Nut	1985-1986	4
3	97 59 846 Blind rivet nut 1985-1986	Blind rivet nut	1985-1986	1
4	70 45 776 Washer	Washer		2
5	80 29 936 32 000 431 Washer	Washer		1
6	80 29 936 32 000 431 Washer 1985-1987	Washer	1985-1987	2
7	80 59 263 92 150 458 Screw	Screw		5
8	79 72 573 92 150 164 Clip nut	Clip nut		2
9	79 73 126 Screw	Screw		2
10	97 61 933 Spring	Spring		1
11	79 61 634 Rivet 1985-1986	Rivet	1985-1986	2
12	97 68 243 Grille, loudspeaker LH \| Red	Grille, loudspeaker	LH \| Red	1
12	97 68 326 Grille, loudspeaker RHD • LH \| Red	Grille, loudspeaker	RHD LH \| Red	1
12	97 68 284 Grille, loudspeaker 1985-1987 • LH \| Blue	Grille, loudspeaker	1985-1987 LH \| Blue	1
12	97 68 367 Grille, loudspeaker 1985-1987, RHD • LH \| Blue	Grille, loudspeaker	1985-1987, RHD LH \| Blue	1
12	97 68 268 Grille, loudspeaker 1985-1986 • LH \| Yellow.	Grille, loudspeaker	1985-1986 LH \| Yellow.	1
12	97 68 342 Grille, loudspeaker 1985-1986, RHD • LH \| Yellow.	Grille, loudspeaker	1985-1986, RHD LH \| Yellow.	1
12	97 68 250 Grille, loudspeaker -1986 • RH \| Red	Grille, loudspeaker	-1986 RH \| Red	1
12	97 68 334 Grille, loudspeaker RHD • RH \| Red	Grille, loudspeaker	RHD RH \| Red	1
12	97 68 292 Grille, loudspeaker -1986 • RH \| Blue	Grille, loudspeaker	-1986 RH \| Blue	1
12	97 68 375 Grille, loudspeaker 1985-1987, RHD • RH \| Blue	Grille, loudspeaker	1985-1987, RHD RH \| Blue	1
12	97 68 276 Grille, loudspeaker -1986 • RH \| Yellow.	Grille, loudspeaker	-1986 RH \| Yellow.	1
12	97 68 359 Grille, loudspeaker 1985-1986, RHD • RH \| Yellow.	Grille, loudspeaker	1985-1986, RHD RH \| Yellow.	1
12	40 41 166 Grille, loudspeaker -1986, LHD • RH (9768318) \| Grey.	Grille, loudspeaker	-1986, LHD RH (9768318) \| Grey.	1
13	97 79 802 Sealing collar 1985-1986, LHD • LH	Sealing collar	1985-1986, LHD LH	1
13	97 79 828 Sealing collar 1985-1986, RHD • LH	Sealing collar	1985-1986, RHD LH	1
13	96 60 440 Sealing collar 1985-1986, LHD • RH	Sealing collar	1985-1986, LHD RH	1
13	97 79 836 Sealing collar 1985-1986, RHD • RH	Sealing collar	1985-1986, RHD RH	1
14	79 77 648 79 68 084 Screw (9781618)	Screw	(9781618)	4
15	79 35 703 Clip nut (9781626)	Clip nut	(9781626)	4
16	79 75 535 Screw	Screw		2
17	79 72 771 Clip nut	Clip nut		2
18	98 91 367 Strip 1985-1985	Strip	1985-1985	1
19	96 60 747 Cover 1985-1986 • Yellow.	Cover	1985-1986 Yellow.	1
19	96 60 754 Cover 1985-1987 • Blue	Cover	1985-1987 Blue	1
