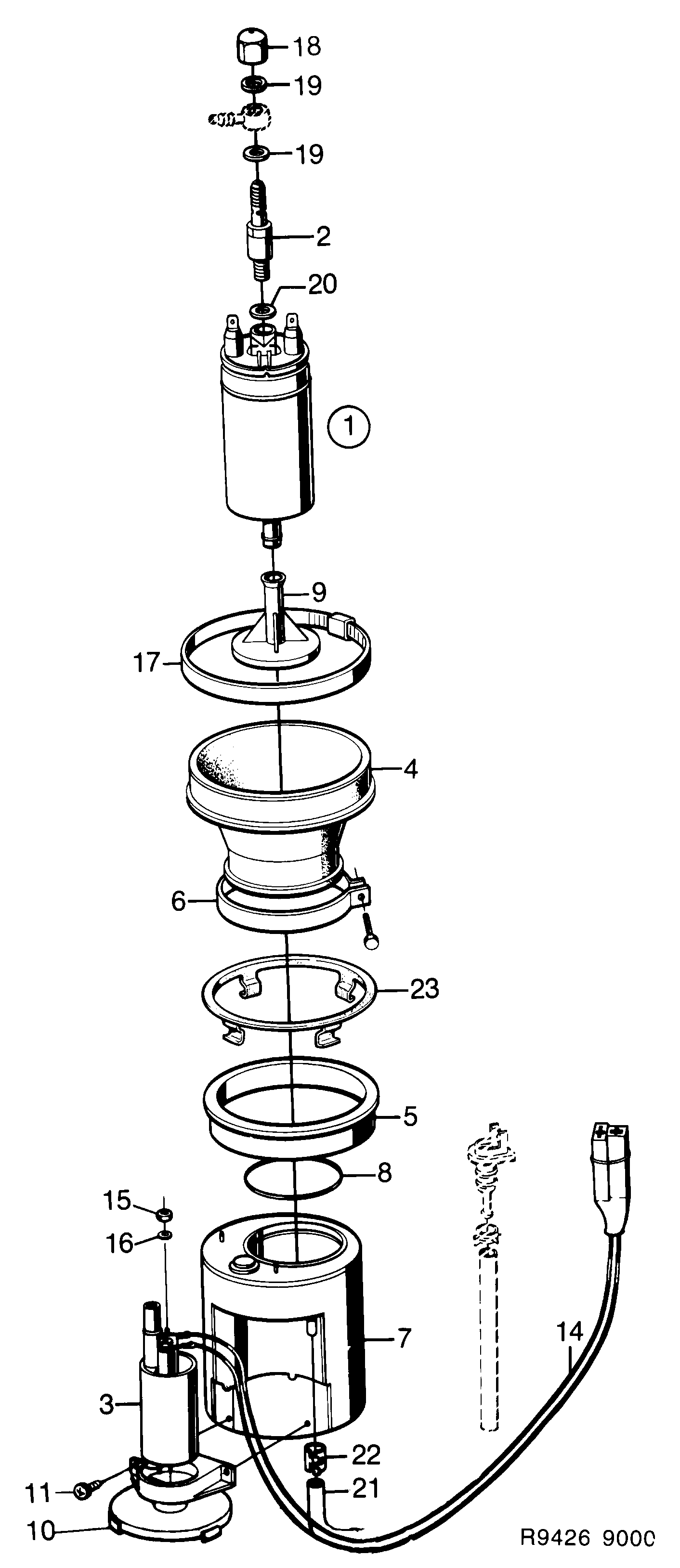

610: Engine - Fuel system - Fuel pump
(1985 - 1989) | For 9000 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 92 911 Fuel pump 1986-1986 • (9367798) | 1 | |
| 1 | 93 93 935 Fuel pump 1987-1989 • I, TURBO • VIN -J1006798, -J2003028, -J8000557.... | 1 | |
| 1 | Fuel pumpFuel system I • VIN J1006799-, J2003029-, J8000558-, I WITHOUT CATALYTIC CONVERTER. VIN J1026230--, J2015406--, J8001594--. I WITH CATALYTIC CONVERTER. | 1 | |
| 2 | 88 17 553 Valve PART OF 9392911 | 1 | |
| 2 | 93 37 510 Valve PART OF 9393935 | 1 | |
| 3 | 75 26 163 Fuel pump 1986-1986 • (9349671) | 1 | |
| 4 | 93 67 756 Collar | 1 | |
| 5 | 93 94 016 75 91 399 Support ring 1986-1988 | 1 | |
| 6 | 93 67 731 Hose clamp | 1 | |
| 7 | 93 86 798 Reservoir | 1 | |
| 8 | 93 83 522 O-ring | 1 | |
| 9 | 93 83 969 Strainer | 1 | |
| 10 | 93 86 491 Strainer | 1 | |
| 11 | 79 73 613 Screw | 2 | |
| 14 | 93 63 540 Cable harness | 1 | |
| 15 | 79 73 993 Nut | 2 | |
| 16 | 79 10 516 Washer | 2 | |
| 17 | 93 31 554 Hose clamp | 1 | |
| 18 | 93 61 668 Cap nut | 1 | |
| 19 | 83 26 704 Seal | 2 | |
| 20 | 93 37 528 Washer | 1 | |
| 21 | 89 75 484 Return pipe (9362260) | 1 | |
| 22 | 79 73 522 Hose clamp | 1 |
