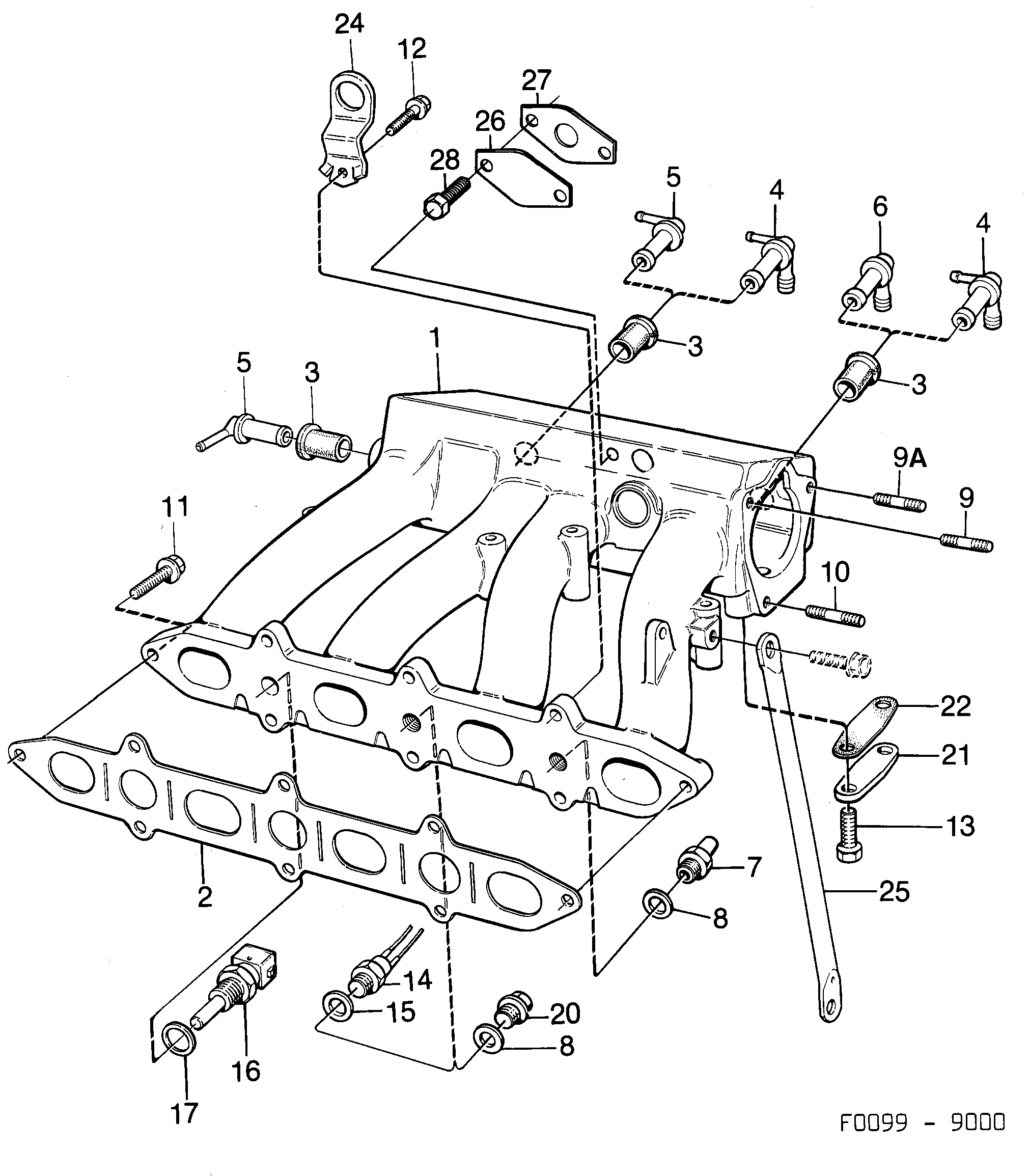

760: Engine - Intake and exhaust system - Intake manifold
(1986 - 1989) | For 9000 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 81 846 Intake manifold 1987-1987 | 1 | |
| 2 | 75 15 885 75 84 436 Gasket 1986-1987 | 1 | |
| 4 | 93 12 802 Nipple | 1 | |
| 5 | 83 59 937 Nipple With catalytic converter. | 2 | |
| 6 | 83 57 543 Nipple | 1 | |
| 7 | 75 88 098 Nipple (7517634,7567449) (7486806) | 1 | |
| 8 | 81 24 141 92 150 435 Gasket -1989 | 2 | |
| 9 | 80 05 910 Stud 1987-1989 | 1 | |
| 9A | 80 05 928 Stud | 1 | |
| 10 | 80 05 936 Stud | 1 | |
| 11 | 81 25 197 Screw | 7 | |
| 12 | 81 25 205 Screw | 1 | |
| 13 | 80 19 903 79 85 930 Screw | 2 | |
| 14 | 75 19 416 Thermostat With catalytic converter. | 1 | |
| 15 | 81 24 141 92 150 435 Gasket 1986-1987 • With catalytic converter. | 1 | |
| 16 | 93 57 021 Temperature sensor | 1 | |
| 17 | 83 26 704 Seal | 1 | |
| 20 | 75 64 222 75 63 042 Plug 1986-1988 | 1 | |
| 21 | 93 58 177 Flange | 1 | |
| 24 | 75 21 230 Lifting eye | 1 | |
| 25 | 75 17 444 Brace -1989 | 1 | |
| 26 | 75 86 860 Flange | 1 | |
| 27 | 75 86 878 Gasket | 1 | |
| 28 | 80 19 895 Screw | 1 |
