Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9000 1989?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9000 1989. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	93 50 216 Exhaust gas recirculation valve I • Without catalytic converter.	Exhaust gas recirculation valve	I Without catalytic converter.	1
1	93 50 224 Exhaust gas recirculation valve TURBO • Without catalytic converter.	Exhaust gas recirculation valve	TURBO Without catalytic converter.	1
2	75 06 652 Nipple TURBO, I	Nipple	TURBO, I	1
2	75 83 933 Nipple I	Nipple	I	1
3	75 07 973 Gasket	Gasket		1
4	80 19 929 Screw	Screw		2
5	75 04 897 Valve	Valve		1
6	81 24 141 92 150 435 Gasket	Gasket		1
10	91 36 243 Vacuum hose L=215 MM \| Sold...	Vacuum hose	L=215 MM \| Sold...	1
11	91 36 243 Vacuum hose L=410 MM \| Sold...	Vacuum hose	L=410 MM \| Sold...	1
18	75 22 519 EGR-pipe TURBO	EGR-pipe	TURBO	1
18	75 69 916 EGR-pipe I	EGR-pipe	I	1
19	81 45 559 Nut	Nut		2
20	81 32 235 Ferrule	Ferrule		2
21	81 31 989 Nipple	Nipple		1
22	75 20 042 Protection	Protection		1
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X

Pos.	Part No.	Description	Usage	Qty
1	93 50 216 Exhaust gas recirculation valve I • Without catalytic converter.	Exhaust gas recirculation valve	I Without catalytic converter.	1
1	93 50 224 Exhaust gas recirculation valve TURBO • Without catalytic converter.	Exhaust gas recirculation valve	TURBO Without catalytic converter.	1
2	75 06 652 Nipple TURBO, I	Nipple	TURBO, I	1
2	75 83 933 Nipple I	Nipple	I	1
3	75 07 973 Gasket	Gasket		1
4	80 19 929 Screw	Screw		2
5	75 04 897 Valve	Valve		1
6	81 24 141 92 150 435 Gasket	Gasket		1
10	91 36 243 Vacuum hose L=215 MM \| Sold...	Vacuum hose	L=215 MM \| Sold...	1
11	91 36 243 Vacuum hose L=410 MM \| Sold...	Vacuum hose	L=410 MM \| Sold...	1
18	75 22 519 EGR-pipe TURBO	EGR-pipe	TURBO	1
18	75 69 916 EGR-pipe I	EGR-pipe	I	1
19	81 45 559 Nut	Nut		2
20	81 32 235 Ferrule	Ferrule		2
21	81 31 989 Nipple	Nipple		1
22	75 20 042 Protection	Protection		1
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X

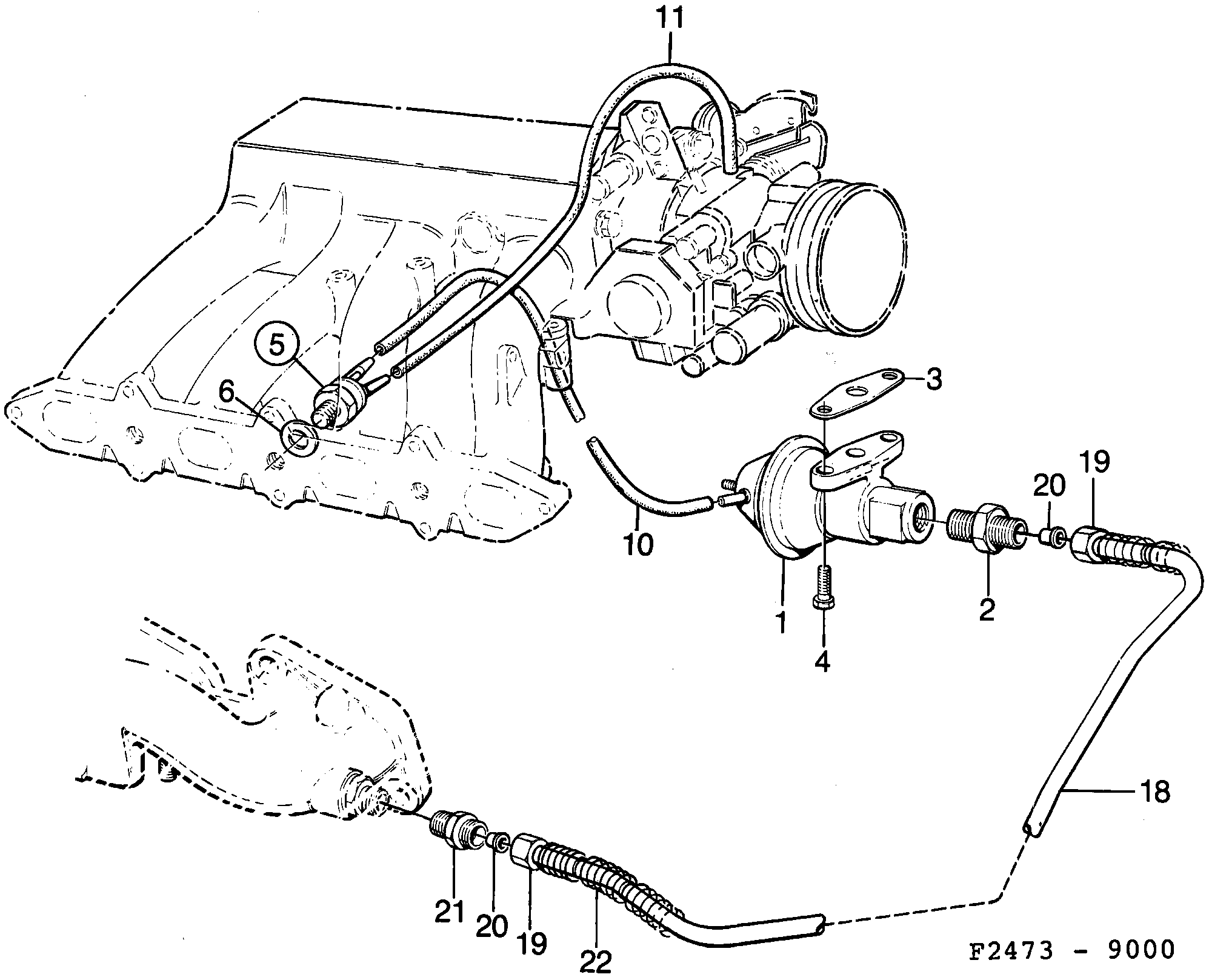

1030: Engine - Intake and exhaust system - EGR system
