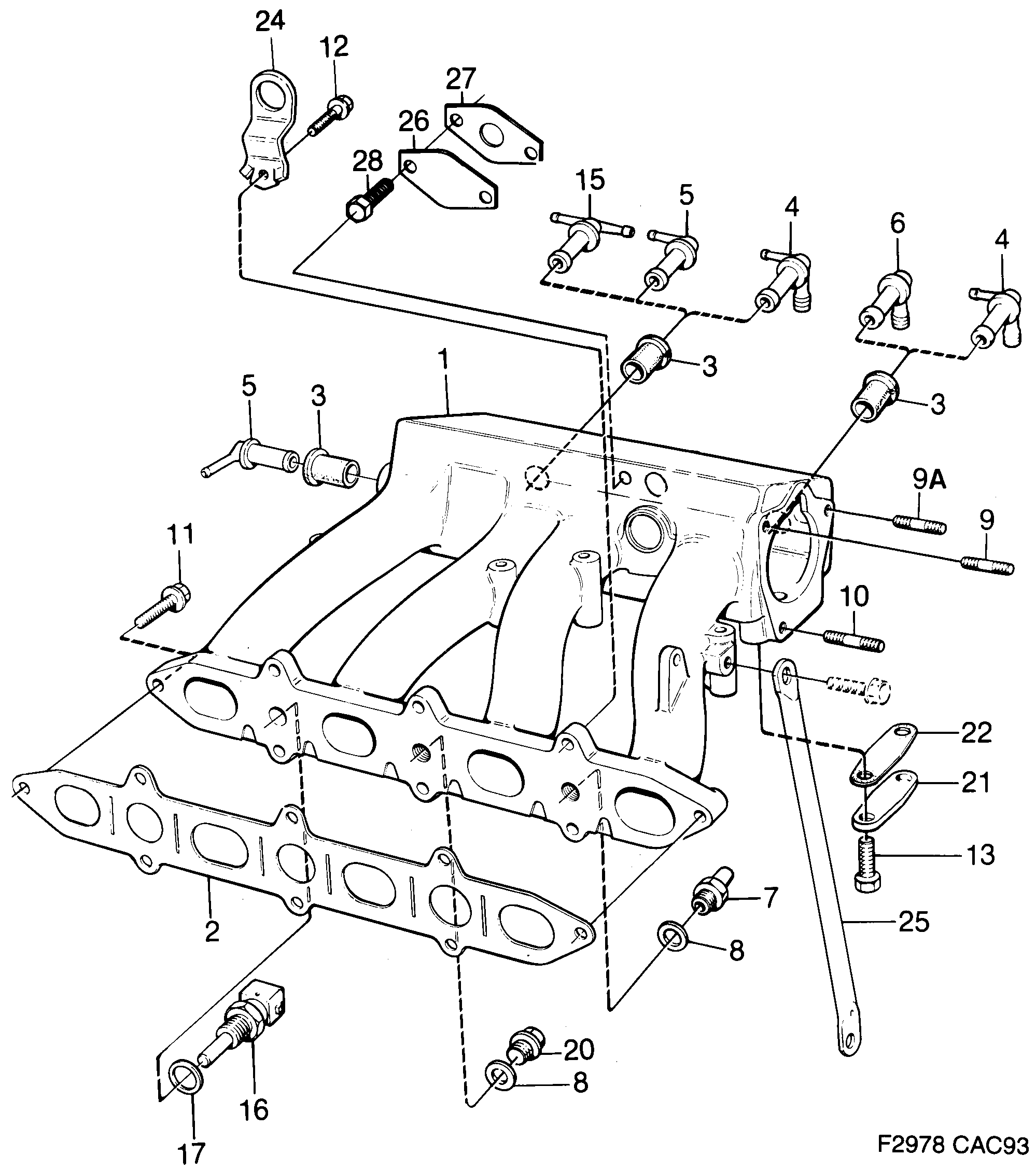

1070: Engine - Intake and exhaust system - Intake manifold - Not US
(1990 - 1993) | For 9000 (1990)
NOT US
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 87 86 477 Intake manifold 05 | 1 | |
| 1 | 88 58 300 Intake manifold 05 • ETS | 1 | |
| 2 | 75 84 436 Gasket 05 | 1 | |
| 3 | 75 15 208 Bushing 05 | 2 | |
| 4 | 93 12 802 Nipple 05 | 1 | |
| 5 | 83 59 937 Nipple 05 • With catalytic converter. | 2 | |
| 6 | 83 57 543 Nipple 05 | 1 | |
| 7 | 74 86 806 Nipple 05 | 1 | |
| 8 | 83 26 712 41 61 162 Seal 05 | 2 | |
| 9 | 80 05 910 Stud 05 | 1 | |
| 9A | 80 05 928 Stud 1990-1991 • 05 | 1 | |
| 10 | 80 05 936 Stud 05 | 1 | |
| 11 | 81 25 197 Screw 05 | 7 | |
| 12 | 81 25 205 Screw 05 | 1 | |
| 13 | 80 19 903 79 85 930 Screw 05 | 2 | |
| 15 | 75 22 477 Nipple 05 • ETS | 1 | |
| 16 | SensorFuel system 05 | 1 | |
| 17 | SealFuel system 05 | 1 | |
| 20 | 81 23 721 75 63 042 Plug 05 | 1 | |
| 21 | 93 58 177 Flange 05 | 1 | |
| 22 | 75 07 973 Gasket 05 | 1 | |
| 24 | 75 21 230 Lifting eye 05 | 1 | |
| 25 | 87 88 572 Brace 05 | 1 | |
| 26 | 75 86 860 Flange 05 | 1 | |
| 27 | 75 86 878 Gasket 05 | 1 | |
| 28 | 80 19 895 Screw 05 | 1 |
