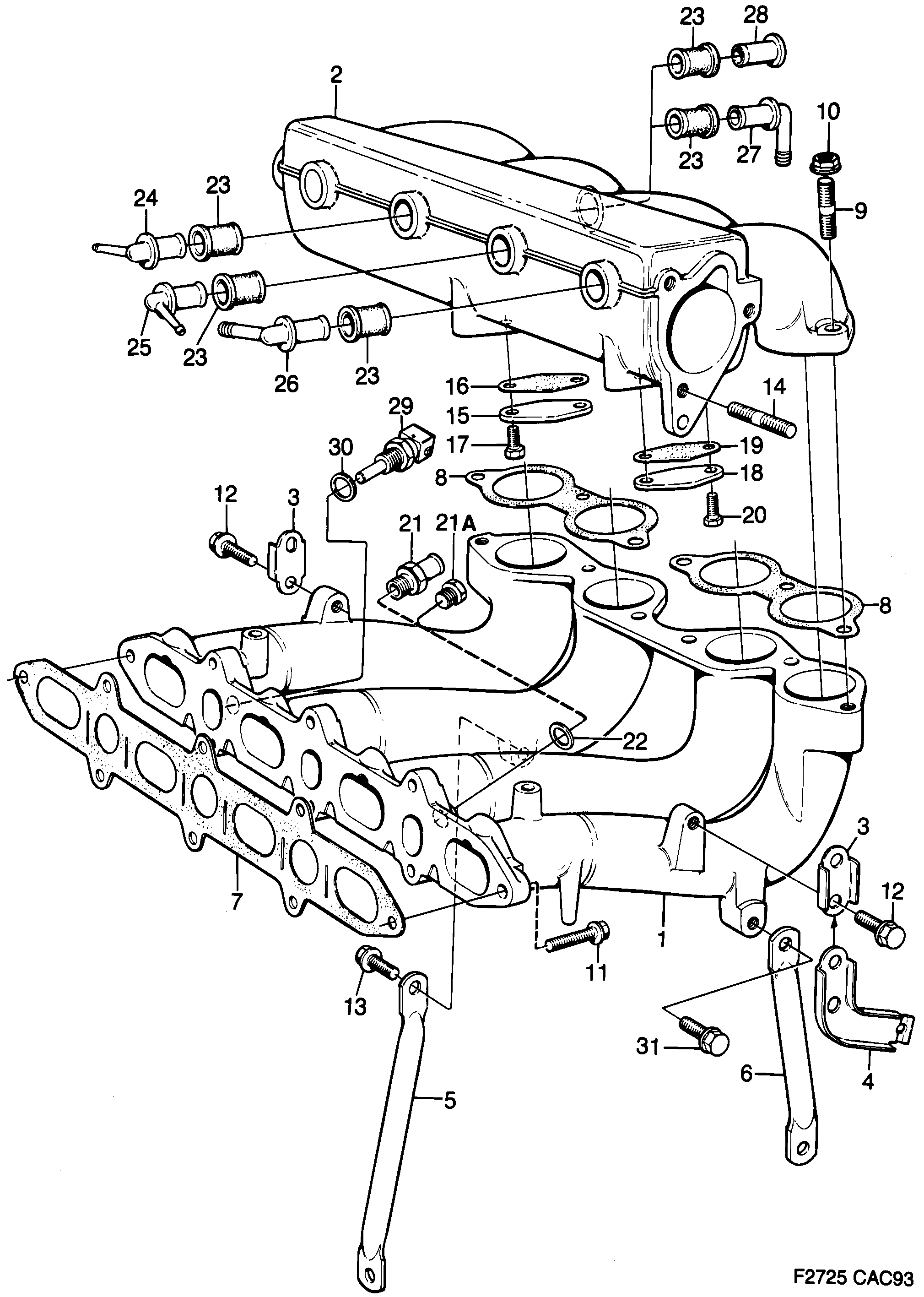

1130: Engine - Intake and exhaust system - Intake manifold
(1990 | PETROL) | For 9000 (1990)
NOT US
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 87 88 317 Intake manifold PETROL | 1 | |
| 2 | 87 88 333 Intake manifold PETROL | 1 | |
| 3 | 91 13 556 Brace PETROL | 2 | |
| 4 | 91 18 365 Brace PETROL | 1 | |
| 5 | 91 13 531 Brace PETROL | 1 | |
| 6 | 87 89 695 Brace PETROL | 1 | |
| 7 | 75 84 451 91 26 277 Gasket PETROL | 1 | |
| 8 | 91 15 460 Gasket PETROL | 2 | |
| 9 | 80 05 936 Stud PETROL | 6 | |
| 10 | 81 51 326 11 900 429 Nut PETROL | 6 | |
| 11 | 81 25 197 Screw PETROL | 8 | |
| 12 | 81 25 155 55 562 121 Screw PETROL | 4 | |
| 13 | 81 25 163 Screw PETROL | 2 | |
| 14 | 80 05 910 Stud PETROL | 3 | |
| 15 | 75 86 860 Flange PETROL | 1 | |
| 16 | 75 86 878 Gasket PETROL | 1 | |
| 17 | 80 19 895 Screw PETROL | 2 | |
| 18 | 93 58 177 Flange PETROL | 1 | |
| 19 | 75 07 973 Gasket PETROL | 1 | |
| 20 | 80 19 895 Screw PETROL | 2 | |
| 21 | 74 86 806 Nipple -1990 • PETROL | 1 | |
| 21A | 81 23 721 75 63 042 Plug 1990- • PETROL | 1 | |
| 22 | 89 81 961 41 61 162 Seal -1990 • PETROL | 1 | |
| 22 | 83 26 712 41 61 162 Seal 1990- • PETROL | 1 | |
| 23 | 75 15 208 Bushing PETROL | 4 | |
| 24 | 83 59 937 Nipple PETROL | 1 | |
| 25 | 83 59 937 Nipple PETROL | 1 | |
| 26 | 83 57 543 Nipple PETROL | 1 | |
| 27 | 83 57 543 Nipple PETROL | 1 | |
| 28 | 91 14 000 Plug PETROL • ABS | 1 | |
| 29 | SensorFuel system PETROL | 1 | |
| 30 | SealFuel system PETROL | 1 | |
| 31 | 79 78 208 92 150 014 Screw PETROL | 1 |
