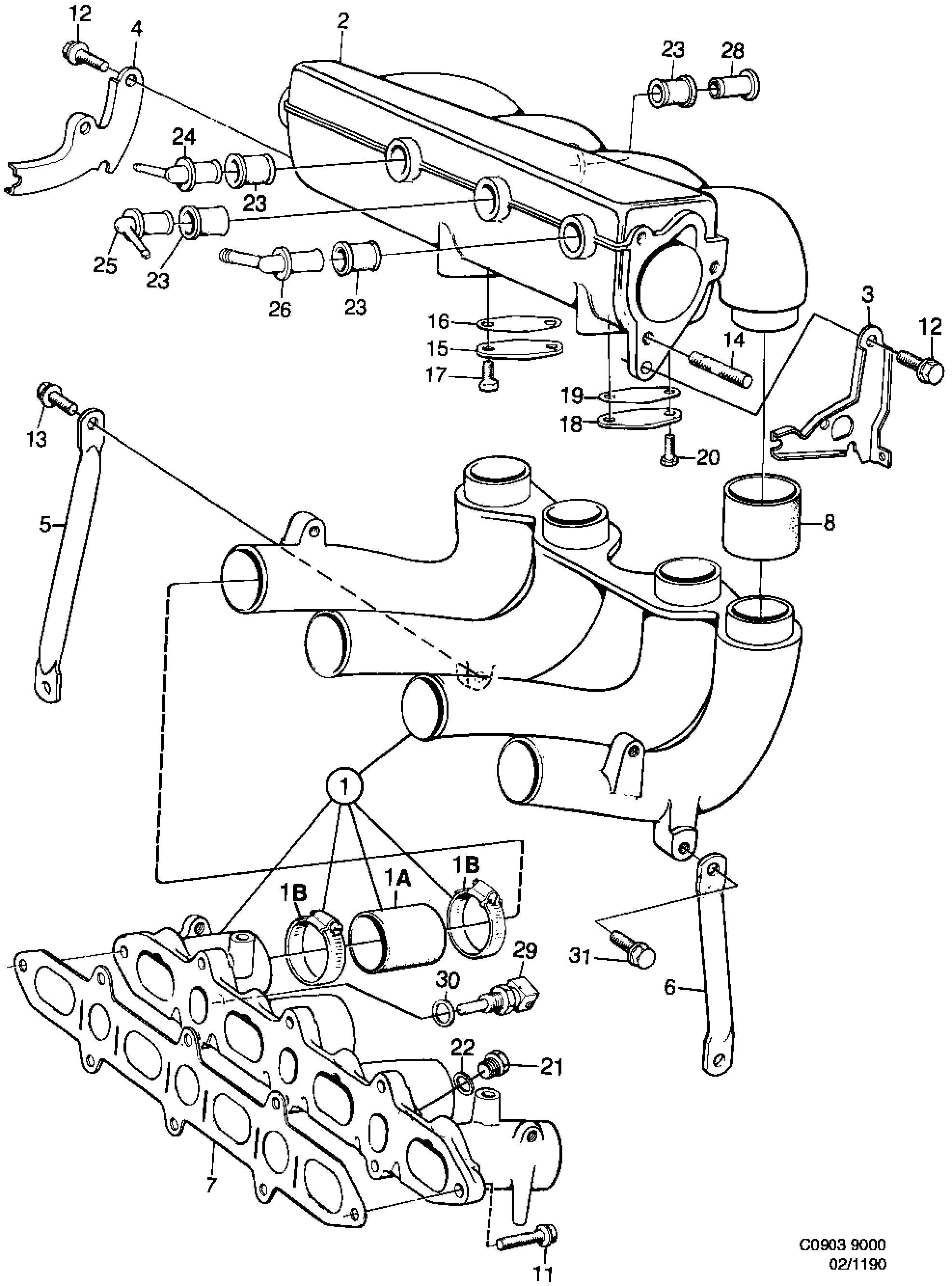

1190: Engine - Intake and exhaust system - Intake manifold
(1990 - 1991 | PETROL) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 87 89 513 Intake manifold PETROL | 1 | |
| 1A | 87 89 588 93 167 178 Hose PETROL | 4 | |
| 1B | 79 70 130 92 153 077 Hose clamp PETROL | 8 | |
| 2 | 87 89 489 Intake manifold PETROL | 1 | |
| 3 | 87 89 570 Anchorage PETROL | 1 | |
| 4 | 87 89 562 Anchorage PETROL | 1 | |
| 5 | 91 13 531 Brace PETROL | 1 | |
| 6 | 87 89 695 Brace PETROL | 1 | |
| 7 | 75 84 451 91 26 277 Gasket PETROL | 1 | |
| 8 | 87 89 596 93 167 179 Hose PETROL | 4 | |
| 11 | 81 25 197 Screw PETROL | 8 | |
| 12 | 81 25 155 55 562 121 Screw PETROL | 8 | |
| 13 | 81 25 163 Screw PETROL | 2 | |
| 14 | 80 05 910 Stud PETROL | 3 | |
| 15 | 75 86 860 Flange PETROL | 1 | |
| 16 | 75 86 878 Gasket PETROL | 1 | |
| 17 | 80 19 895 Screw 1990-1990 • PETROL | 2 | |
| 18 | 93 58 177 Flange PETROL | 1 | |
| 19 | 75 07 973 Gasket PETROL | 1 | |
| 20 | 80 19 895 Screw 1990-1990 • PETROL | 2 | |
| 21 | 87 89 323 Plug PETROL | 1 | |
| 22 | 81 24 125 Gasket PETROL | 1 | |
| 23 | 75 15 208 Bushing PETROL | 4 | |
| 24 | 83 59 937 Nipple PETROL | 1 | |
| 25 | 83 59 937 Nipple PETROL | 1 | |
| 26 | 83 57 543 Nipple PETROL | 1 | |
| 28 | 91 14 000 Plug PETROL | 1 | |
| 29 | SensorFuel system PETROL | 1 | |
| 30 | SealFuel system PETROL | 1 | |
| 31 | 79 78 208 92 150 014 Screw PETROL | 1 |
