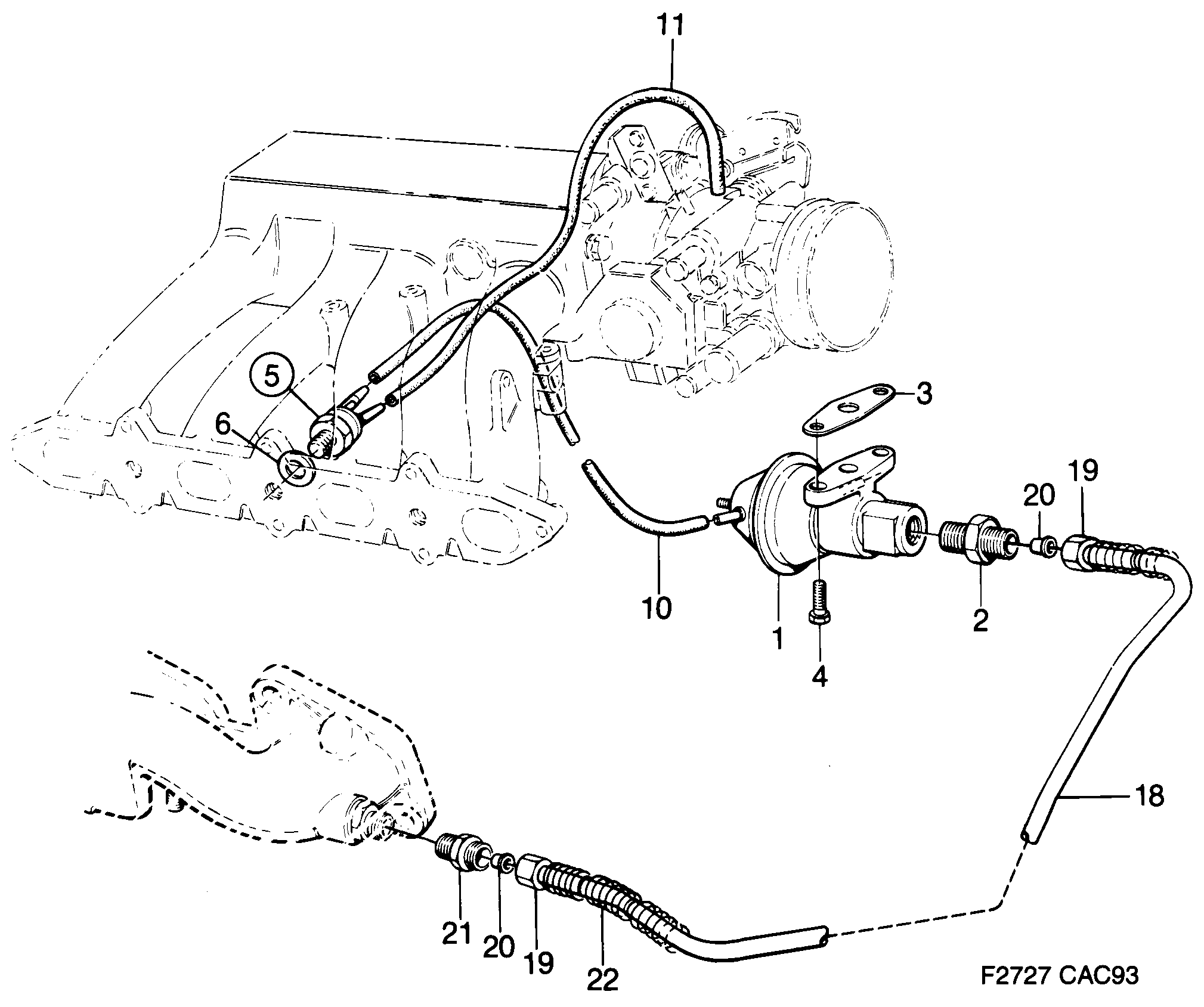

1520: Engine - Intake and exhaust system - EGR system
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 50 216 Exhaust gas recirculation valve -1990 • B202I • Without catalytic converter. | 1 | |
| 1 | 88 59 969 Exhaust gas recirculation valve 1990- • B202I • Without catalytic converter. | 1 | |
| 1 | 93 50 224 Exhaust gas recirculation valve -1990 • B202TURBO • Without catalytic converter. | 1 | |
| 1 | 88 59 977 Exhaust gas recirculation valve 1990- • B202TURBO • Without catalytic converter. | 1 | |
| 1 | 78 73 284 Exhaust gas recirculation valve B234I | 1 | |
| 2 | 75 06 652 Nipple B202TURBO, B202I, B234I | 1 | |
| 2 | 75 83 933 Nipple B202I | 1 | |
| 3 | 75 07 973 Gasket | 1 | |
| 4 | 80 19 929 Screw 1990-1992 | 2 | |
| 5 | 75 04 897 Valve | 1 | |
| 6 | 81 24 141 92 150 435 Gasket B202 | 1 | |
| 6 | 83 26 712 41 61 162 Seal B234 | 1 | |
| 10 | 91 36 243 Vacuum hose 1990-1990 • B202, B234I • L=215 MM | Sold... | 1 | |
| 11 | 91 36 243 Vacuum hose 1990-1990 • B202, B234I • L=410 MM | Sold... | 1 | |
| 18 | 75 22 519 EGR-pipe 1990-1990 • B202TURBO | 1 | |
| 18 | 75 69 916 EGR-pipe B202I, B234I | 1 | |
| 19 | 81 45 559 Nut | 2 | |
| 20 | 81 32 235 Ferrule | 2 | |
| 21 | 81 31 989 Nipple | 1 | |
| 22 | 75 20 042 Protection B202TURBO, B234 | 1 | |
| 22 | 75 17 642 Protection B202I | 1 | |
91 36 243 Vacuum hose L=5000 MM | Sold... | X |
