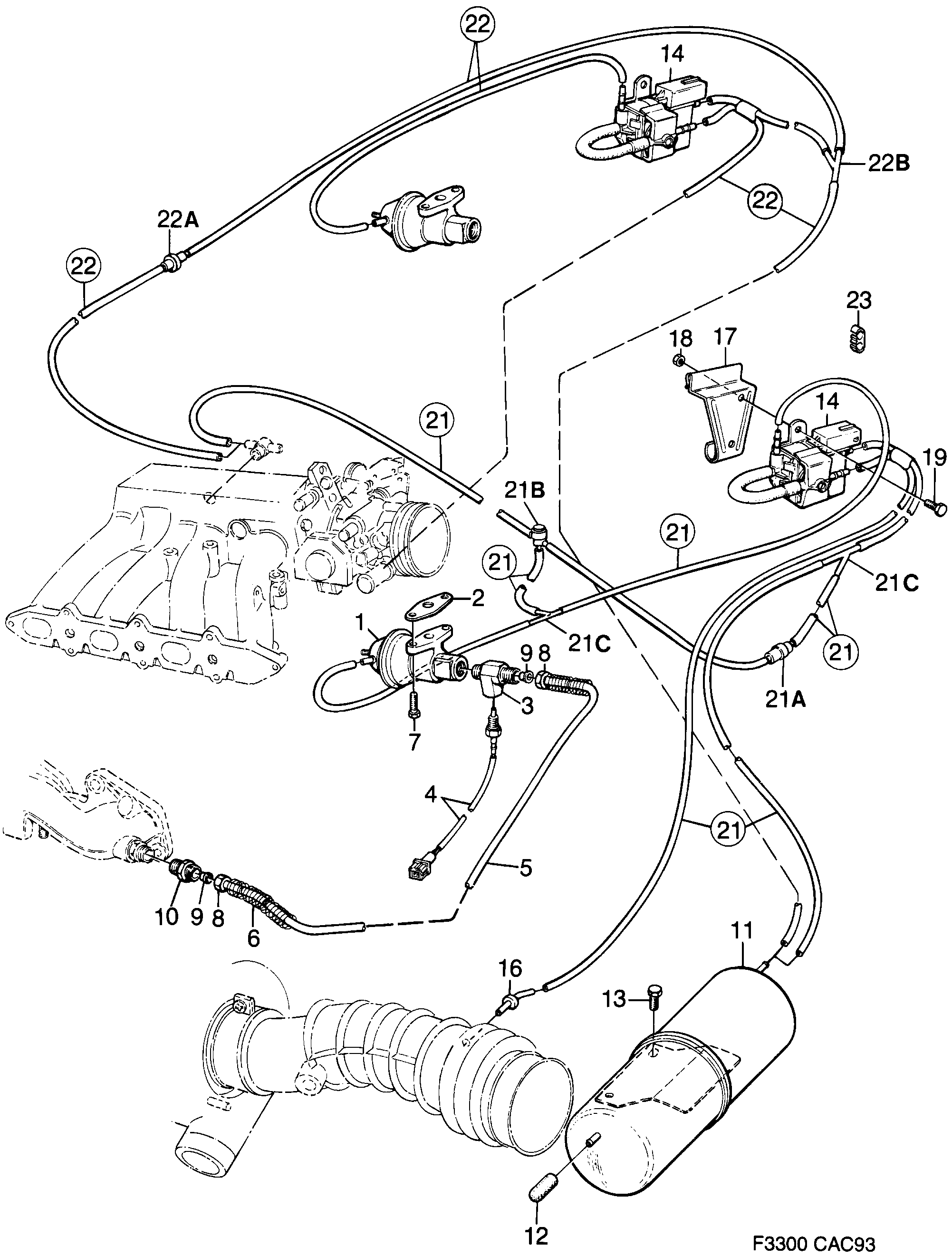

1550: Engine - Intake and exhaust system - EGR system - Electronic
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 87 88 721 Valve | 1 | |
| 2 | 75 07 973 Gasket | 1 | |
| 3 | 91 19 728 Nipple | 1 | |
| 4 | 91 19 512 Sensor | 1 | |
| 5 | 75 22 519 EGR-pipe TURBO | 1 | |
| 5 | 75 69 916 EGR-pipe I | 1 | |
| 6 | 75 20 042 Protection | 1 | |
| 7 | 80 19 929 Screw 1990-1992 | 2 | |
| 8 | 81 45 559 Nut | 2 | |
| 9 | 81 32 235 Ferrule | 2 | |
| 10 | 81 31 989 Nipple | 1 | |
| 11 | 40 16 101 Vacuum tank TURBO | 1 | |
| 11 | 41 59 489 Vacuum tank I | 1 | |
| 12 | 83 35 614 Plug | 1 | |
| 13 | 79 72 888 Screw | 2 | |
| 14 | 91 19 504 Timing valve | 1 | |
| 16 | 40 16 036 Nipple TURBO | 1 | |
| 17 | 40 16 028 Bracket | 1 | |
| 18 | 79 73 456 Expanding nut | 2 | |
| 19 | 80 59 396 Screw | 2 | |
| 21 | 91 36 243 Vacuum hose TURBO • L=3615 MM | Sold... | 1 | |
| 21A | 40 23 297 12 793 343 Non-return valve | 1 | |
| 21B | 40 23 701 Delivery valve | 1 | |
| 21C | 85 09 002 Tube | 2 | |
| 22 | 91 36 243 Vacuum hose I • L=2440 MM | Sold... | 1 | |
| 22A | 40 23 297 12 793 343 Non-return valve | 1 | |
| 22B | 85 09 002 Tube | 1 | |
| 23 | 73 98 621 Clamp | 1 | |
91 36 243 Vacuum hose L=5000 MM | Sold... | X |
