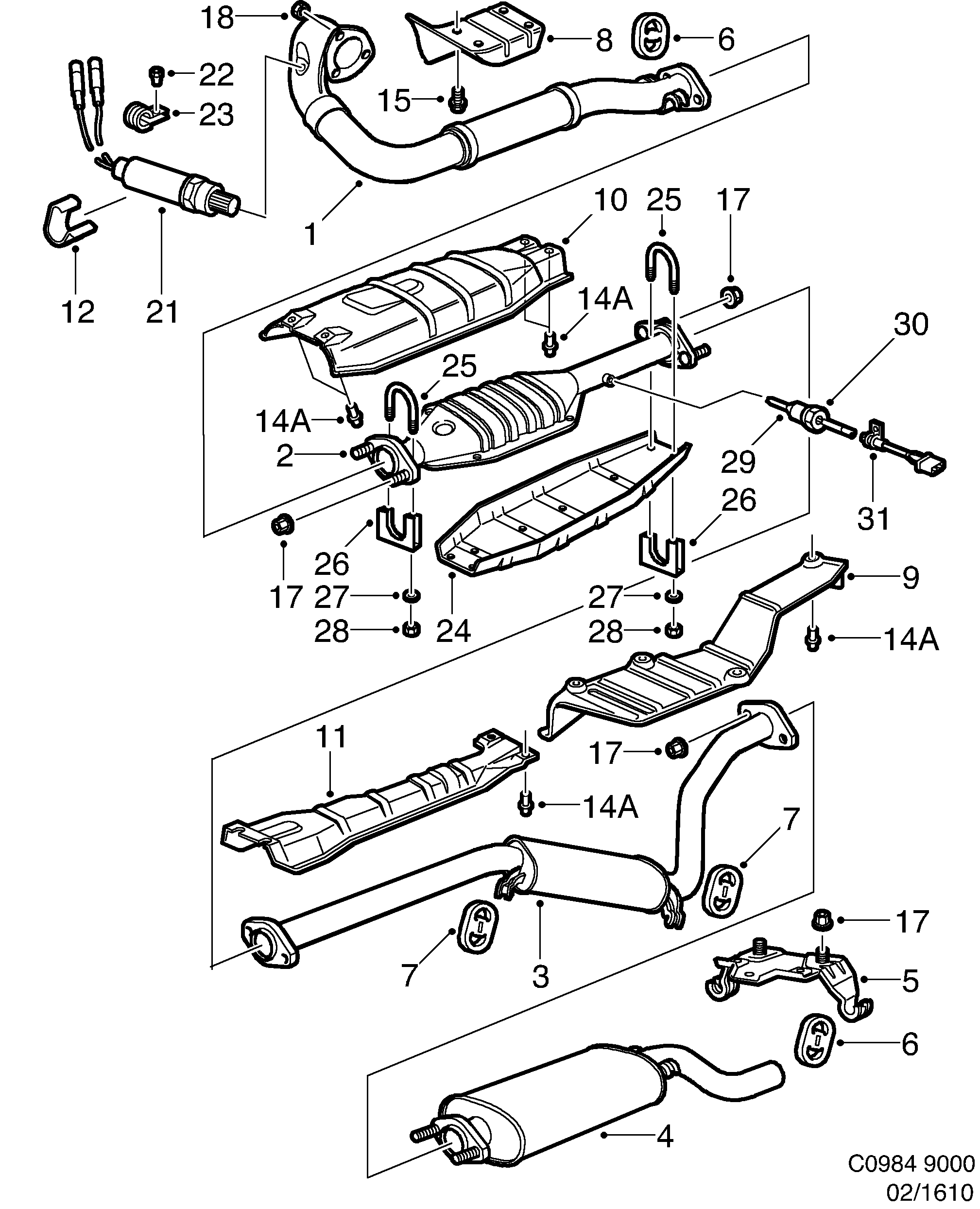

1610: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1990 - 1993 | TURBO) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 82 688 54 66 800 Exhaust pipe 1990-1990 • 44 | 1 | |
| 2 | 93 92 457 47 50 030 Three way catalytic converter 44 | 1 | |
| 2 | 44 40 020 Three way catalytic converter 1990-1991 • 44 | 1 | |
| 2 | 40 24 253 47 50 048 Three way catalytic converter 44 | 1 | |
| 3 | 54 66 123 Silencer 1990-1991 • 44 • (8822249) | 1 | |
| 4 | 54 66 115 Silencer 44 • (8977928) | 1 | |
| 4 | 88 22 264 Silencer T16S • (8980542) | 1 | |
| 4 | 89 79 163 Silencer 44 | 1 | |
| 4 | 53 25 006 Silencer 44 | 1 | |
| 4 | 40 15 814 54 67 154 Silencer 44 • 5CSAERO | 1 | |
| 5 | 89 77 936 Hook 44 | 1 | |
| 6 | 93 92 465 Rubber mounting 44 | 4 | |
| 7 | 93 28 105 Rubber mounting 1990-1991 • 44 | 2 | |
| 8 | 75 64 321 Heat shield -1991 • B202 | 1 | |
| 8 | 91 12 780 30 520 365 Heat shield -1991 • B234 | 1 | |
| 9 | 40 22 604 40 22 505 Heat shield 1990-1991 • 44 | 1 | |
| 10 | 40 22 588 Heat shield 44 | 1 | |
| 11 | 40 22 596 Heat shield 44 | 1 | |
| 12 | 41 58 762 Clip B234 | 1 | |
| 14A | 93 93 968 Rivet 44 | 12 | |
| 14A | 75 91 480 Rivet 44 • Alternative to 93 93... | 12 | |
| 15 | 81 25 130 Screw 44 | 4 | |
| 17 | 79 67 953 11 900 429 Nut 44 | 8 | |
| 18 | 75 19 432 92 152 032 Nut 44 | 3 | |
| 21 | 93 92 762 Lambda sonde 1990-1991 • 44 | 1 | |
| 21 | 91 29 743 93 21 696 Lambda sonde 1990-1991 • 44 | 1 | |
| 22 | 79 71 757 75 28 953 Screw 44 | 2 | |
| 23 | 73 98 803 Clamp -1990 • 44 | 1 | |
| 23 | 40 87 078 73 98 803 Clamp 1990- • 44 | 1 | |
| 24 | 40 24 279 Heat shield 44 | 1 | |
| 25 | 40 24 295 Brace 44 | 2 | |
| 26 | 40 24 303 Yoke bracket 44 | 2 | |
| 27 | 80 29 985 92 153 033 Washer 1990-1992 • 44 | 4 | |
| 28 | 79 65 767 55 557 005 Lock nut 44 | 4 | |
| 29 | 41 60 065 Sensor 44 | 1 | |
| 30 | 40 62 329 Nut 44 | 1 | |
| 31 | 79 69 348 Clamp 44 | 1 |
