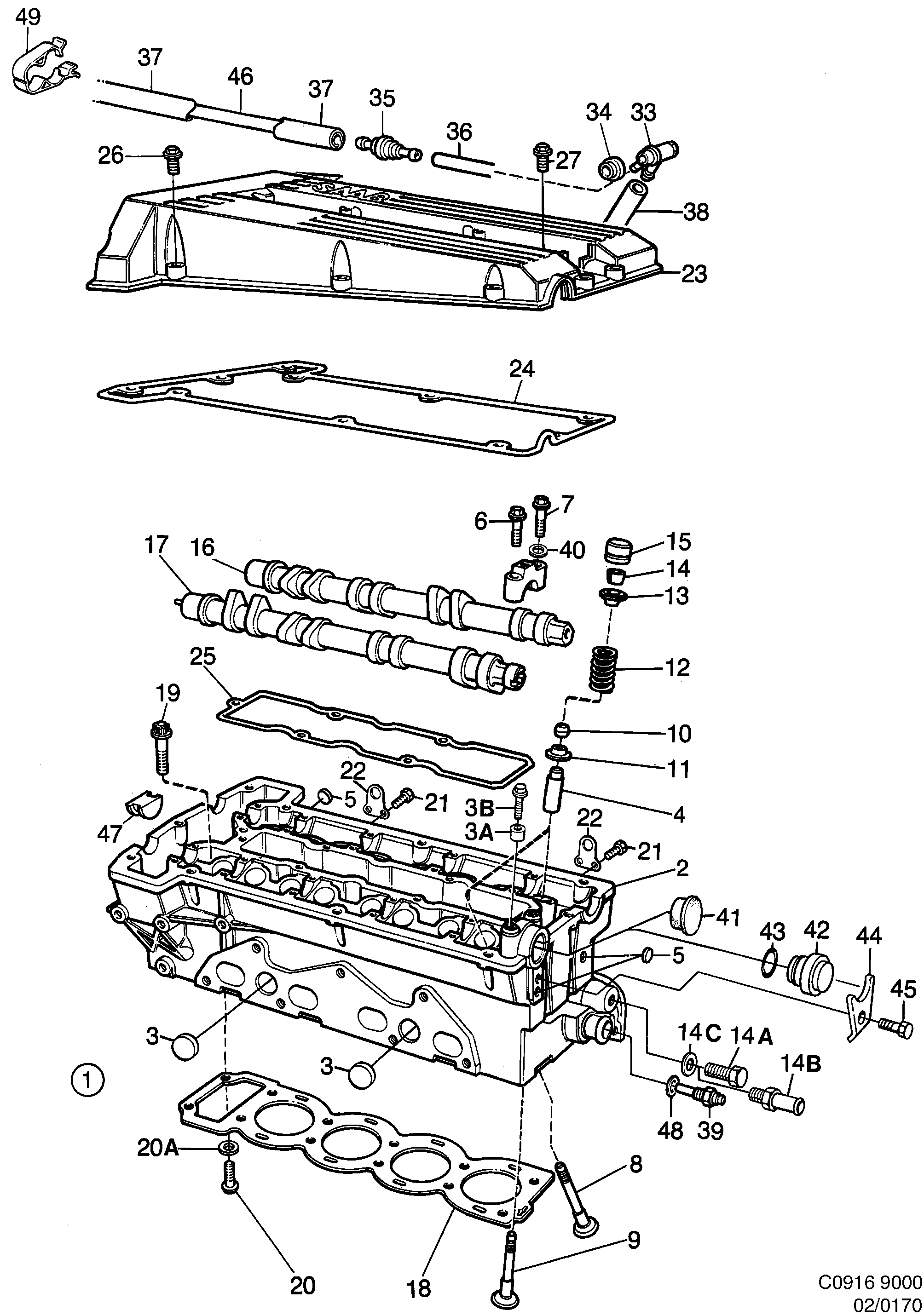

170: Engine - Short block - Cylinder head

(1990 - 1993 | B234I) | For 9000 (1990)

100%

(N°140)

Section 170

(N°200)

Pos.	Part No.	Description	Usage	Qty
1	91 15 346 Cylinder head -1990 • B234I • Also available as exchange...	Cylinder head	-1990 B234I Also available as exchange...	1
1	88 57 765 Cylinder head 1990-1990 • B234I • Also available as exchange...	Cylinder head	1990-1990 B234I Also available as exchange...	1
2	91 15 353 Cylinder head B234I	Cylinder head	B234I	1
3	75 88 320 Sealing washer B234I	Sealing washer	B234I	2
3A	75 04 566 Guide sleeve B234I	Guide sleeve	B234I	2
3B	75 04 178 92 151 833 Screw B234I	Screw	B234I	2
4	74 80 577 Valve guide B234I	Valve guide	B234I	16
4	74 80 569 Valve guide 1990-1990 • B234I • Oversize.	Valve guide	1990-1990 B234I Oversize.	16
5	81 23 143 49 40 466 Plug B234I	Plug	B234I	3
6	81 25 213 Screw B234I	Screw	B234I	12
7	75 85 847 55 559 477 Screw B234I	Screw	B234I	8
8	74 84 801 Inlet valve B234I • With Stellite coated intake...	Inlet valve	B234I With Stellite coated intake...	8
9	75 00 085 91 65 598 Exhaust valve 1990-1991 • B234I	Exhaust valve	1990-1991 B234I	8
10	75 00 713 Seal B234I	Seal	B234I	16
11	75 05 134 Washer B234I	Washer	B234I	16
12	93 58 391 91 29 651 Spring 1990-1991 • I	Spring	1990-1991 I	16
12	91 29 636 Spring 1990-1991 • TURBO	Spring	1990-1991 TURBO	16
13	75 01 349 Washer B234I	Washer	B234I	16
14	75 15 547 Valve cone B234I	Valve cone	B234I	32
14A	81 23 721 75 63 042 Plug -1990 • B234I	Plug	-1990 B234I	1
14B	74 86 806 Nipple 1990- • B234I	Nipple	1990- B234I	1
14C	89 81 961 41 61 162 Seal -1990 • B234I	Seal	-1990 B234I	1
14C	83 26 712 41 61 162 Seal 1990- • B234I	Seal	1990- B234I	1
15	93 57 716 55 557 388 Tappet -1992 • B234I	Tappet	-1992 B234I	16
16	91 16 690 Camshaft 1990-1992 • B234I • Intake.	Camshaft	1990-1992 B234I Intake.	1
17	91 16 708 30 551 900 Camshaft 1990-1992 • B234I • Exhaust.	Camshaft	1990-1992 B234I Exhaust.	1
18	74 84 405 91 81 348 Gasket 1990-1992 • B234I	Gasket	1990-1992 B234I	1
19	75 18 335 59 55 794 Screw -1991 • B234I	Screw	-1991 B234I	10
20	80 98 097 Screw B234I	Screw	B234I	2
20A	80 29 985 92 153 033 Washer 1990-1992 • B234I	Washer	1990-1992 B234I	2
21	75 04 749 Screw B234I	Screw	B234I	4
22	74 81 757 Lifting eye B234I	Lifting eye	B234I	2
23	87 88 135 59 59 416 Valve cover B234I	Valve cover	B234I	1
24	75 88 056 55 555 635 Gasket B234I	Gasket	B234I	1
24	75 69 304 55 555 635 Gasket B234I	Gasket	B234I	1
25	75 23 962 55 555 634 Gasket B234I	Gasket	B234I	1
26	91 19 967 Screw -1993 • B234I	Screw	-1993 B234I	11
27	75 60 931 Screw B234I	Screw	B234I	5
33	75 17 048 Nipple B234I	Nipple	B234I	1
34	75 15 190 95 49 593 Bushing B234I	Bushing	B234I	1
35	75 21 313 91 89 564 Positive crankcase ventilation valve TURBO	Positive crankcase ventilation valve	TURBO	1
36	91 36 243 Vacuum hose I, TURBO • L=130MM \| Sold in...	Vacuum hose	I, TURBO L=130MM \| Sold in...	1
37	87 86 444 Hose TURBO	Hose	TURBO	1
38	87 88 499 Hose I	Hose	I	1
38	75 19 697 Hose TURBO	Hose	TURBO	1
39	88 00 914 30 539 720 Sensor -1990 • B234I	Sensor	-1990 B234I	1
39	88 59 233 30 539 720 Sensor 1990-1990 • B234I	Sensor	1990-1990 B234I	1
40	91 14 885 Sealing washer B234I	Sealing washer	B234I	16
41	75 63 075 Plug 1990-1990 • B234I	Plug	1990-1990 B234I	1
46	91 36 243 Vacuum hose 1990-1992 • TURBO • L=360 MM \| Sold...	Vacuum hose	1990-1992 TURBO L=360 MM \| Sold...	1
47	75 00 069 Plug B234I	Plug	B234I	3
48	89 81 979 44 43 883 Seal B234I	Seal	B234I	1
49	91 17 417 30 520 459 Tensioning band TURBO	Tensioning band	TURBO	1
	88 18 254 88 22 041 Gasket kit Kits B234I	Gasket kit Kits	B234I	X
	93 21 464 88 22 041 Gasket kit Kits B234I	Gasket kit Kits	B234I	X
	93 21 605 Gasket kit Kits B234I	Gasket kit Kits	B234I	X
	91 36 243 Vacuum hose B234I • L=5000 MM \| Sold...	Vacuum hose	B234I L=5000 MM \| Sold...	X
