Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9000 1990?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9000 1990. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	93 93 455 40 19 535 Exhaust pipe 1990-1992 • B202	Exhaust pipe	1990-1992 B202	1
1	40 19 535 Exhaust pipe 1990-1992 • B234	Exhaust pipe	1990-1992 B234	1
2	93 92 457 47 50 030 Three way catalytic converter 45	Three way catalytic converter	45	1
2	44 40 020 Three way catalytic converter 1990-1991 • 45	Three way catalytic converter	1990-1991 45	1
2	40 24 253 47 50 048 Three way catalytic converter 45	Three way catalytic converter	45	1
3	89 79 650 54 66 123 Silencer 1990-1991 • 45	Silencer	1990-1991 45	1
4	88 22 231 54 66 818 Silencer 45 • (8979130)	Silencer	45 (8979130)	1
4	89 79 155 54 67 048 Silencer 45	Silencer	45	1
4	41 62 061 54 66 818 Silencer 45	Silencer	45	1
5	89 77 936 Hook 45	Hook	45	1
6	93 92 465 Rubber mounting 45	Rubber mounting	45	4
7	93 28 105 Rubber mounting 1990-1991 • 45	Rubber mounting	1990-1991 45	2
8	40 22 604 40 22 505 Heat shield 1990-1991 • 45	Heat shield	1990-1991 45	1
9	40 22 588 Heat shield 45	Heat shield	45	1
10	40 22 596 Heat shield 45	Heat shield	45	1
12A	93 93 968 Rivet 45	Rivet	45	8
12A	75 91 480 Rivet 45 • Alternative to 93 93...	Rivet	45 Alternative to 93 93...	8
13	79 67 953 11 900 429 Nut 45	Nut	45	8
15	93 88 588 Plug 45	Plug	45	1
17	81 25 130 Screw 45	Screw	45	4
18	75 64 321 Heat shield B202	Heat shield	B202	1
18	91 12 780 30 520 365 Heat shield B234	Heat shield	B234	1
19	93 92 762 Lambda sonde 1990-1991 • 45	Lambda sonde	1990-1991 45	1
22	89 80 328 Gasket 45	Gasket	45	2
23	79 67 870 79 79 503 Nut 45	Nut	45	4
26	73 99 272 Clamp 45	Clamp	45	1
27	40 24 279 Heat shield 45	Heat shield	45	1
28	40 24 295 Brace 45	Brace	45	2
29	40 24 303 Yoke bracket 45	Yoke bracket	45	2
30	80 29 985 92 153 033 Washer 1990-1992 • 45	Washer	1990-1992 45	4
31	79 65 767 55 557 005 Lock nut 45	Lock nut	45	4
32	41 60 065 Sensor 45	Sensor	45	1
33	40 62 329 Nut 45	Nut	45	1
34	79 69 348 Clamp 45	Clamp	45	1

Pos.	Part No.	Description	Usage	Qty
1	93 93 455 40 19 535 Exhaust pipe 1990-1992 • B202	Exhaust pipe	1990-1992 B202	1
1	40 19 535 Exhaust pipe 1990-1992 • B234	Exhaust pipe	1990-1992 B234	1
2	93 92 457 47 50 030 Three way catalytic converter 45	Three way catalytic converter	45	1
2	44 40 020 Three way catalytic converter 1990-1991 • 45	Three way catalytic converter	1990-1991 45	1
2	40 24 253 47 50 048 Three way catalytic converter 45	Three way catalytic converter	45	1
3	89 79 650 54 66 123 Silencer 1990-1991 • 45	Silencer	1990-1991 45	1
4	88 22 231 54 66 818 Silencer 45 • (8979130)	Silencer	45 (8979130)	1
4	89 79 155 54 67 048 Silencer 45	Silencer	45	1
4	41 62 061 54 66 818 Silencer 45	Silencer	45	1
5	89 77 936 Hook 45	Hook	45	1
6	93 92 465 Rubber mounting 45	Rubber mounting	45	4
7	93 28 105 Rubber mounting 1990-1991 • 45	Rubber mounting	1990-1991 45	2
8	40 22 604 40 22 505 Heat shield 1990-1991 • 45	Heat shield	1990-1991 45	1
9	40 22 588 Heat shield 45	Heat shield	45	1
10	40 22 596 Heat shield 45	Heat shield	45	1
12A	93 93 968 Rivet 45	Rivet	45	8
12A	75 91 480 Rivet 45 • Alternative to 93 93...	Rivet	45 Alternative to 93 93...	8
13	79 67 953 11 900 429 Nut 45	Nut	45	8
15	93 88 588 Plug 45	Plug	45	1
17	81 25 130 Screw 45	Screw	45	4
18	75 64 321 Heat shield B202	Heat shield	B202	1
18	91 12 780 30 520 365 Heat shield B234	Heat shield	B234	1
19	93 92 762 Lambda sonde 1990-1991 • 45	Lambda sonde	1990-1991 45	1
22	89 80 328 Gasket 45	Gasket	45	2
23	79 67 870 79 79 503 Nut 45	Nut	45	4
26	73 99 272 Clamp 45	Clamp	45	1
27	40 24 279 Heat shield 45	Heat shield	45	1
28	40 24 295 Brace 45	Brace	45	2
29	40 24 303 Yoke bracket 45	Yoke bracket	45	2
30	80 29 985 92 153 033 Washer 1990-1992 • 45	Washer	1990-1992 45	4
31	79 65 767 55 557 005 Lock nut 45	Lock nut	45	4
32	41 60 065 Sensor 45	Sensor	45	1
33	40 62 329 Nut 45	Nut	45	1
34	79 69 348 Clamp 45	Clamp	45	1

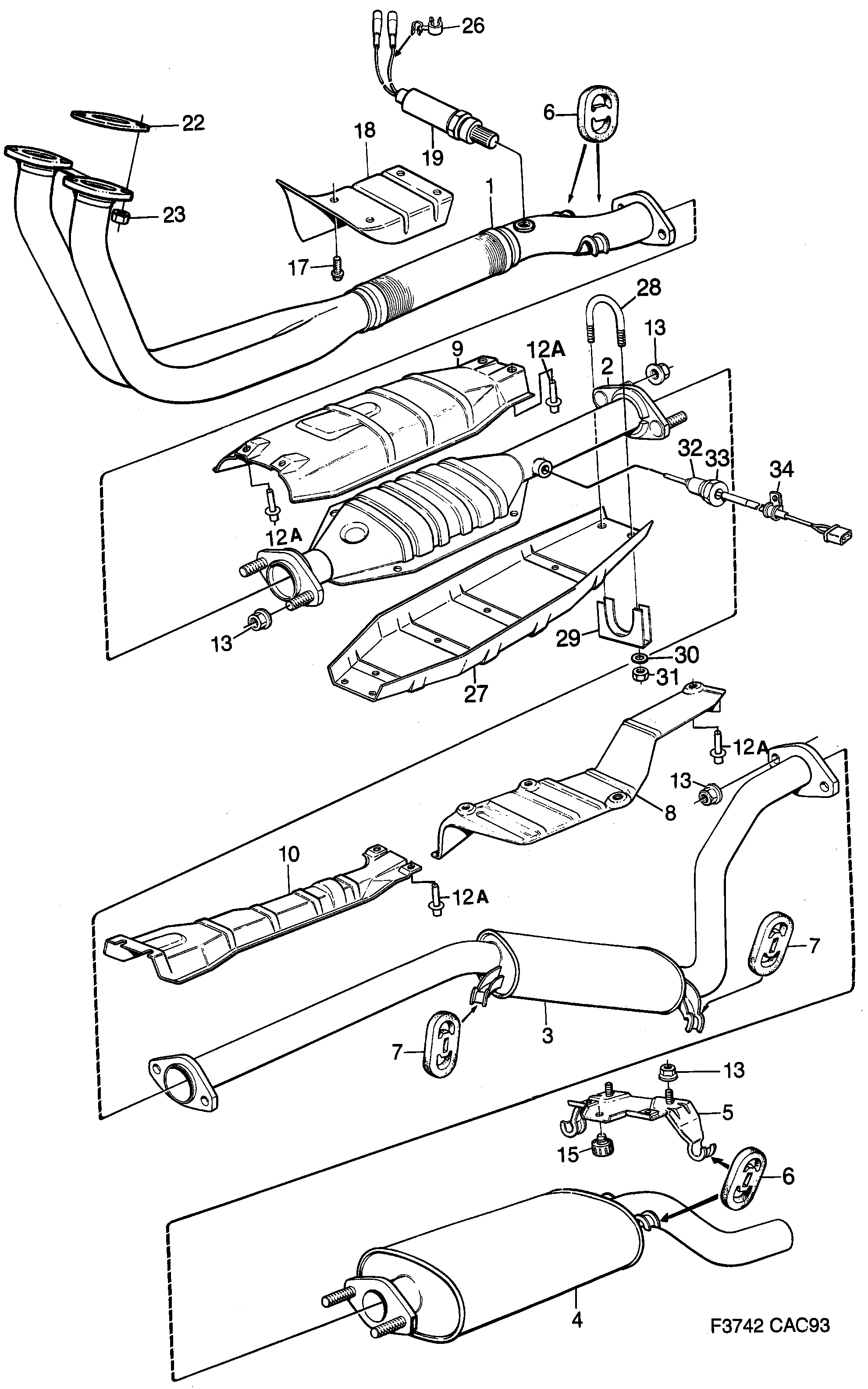

1700: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
