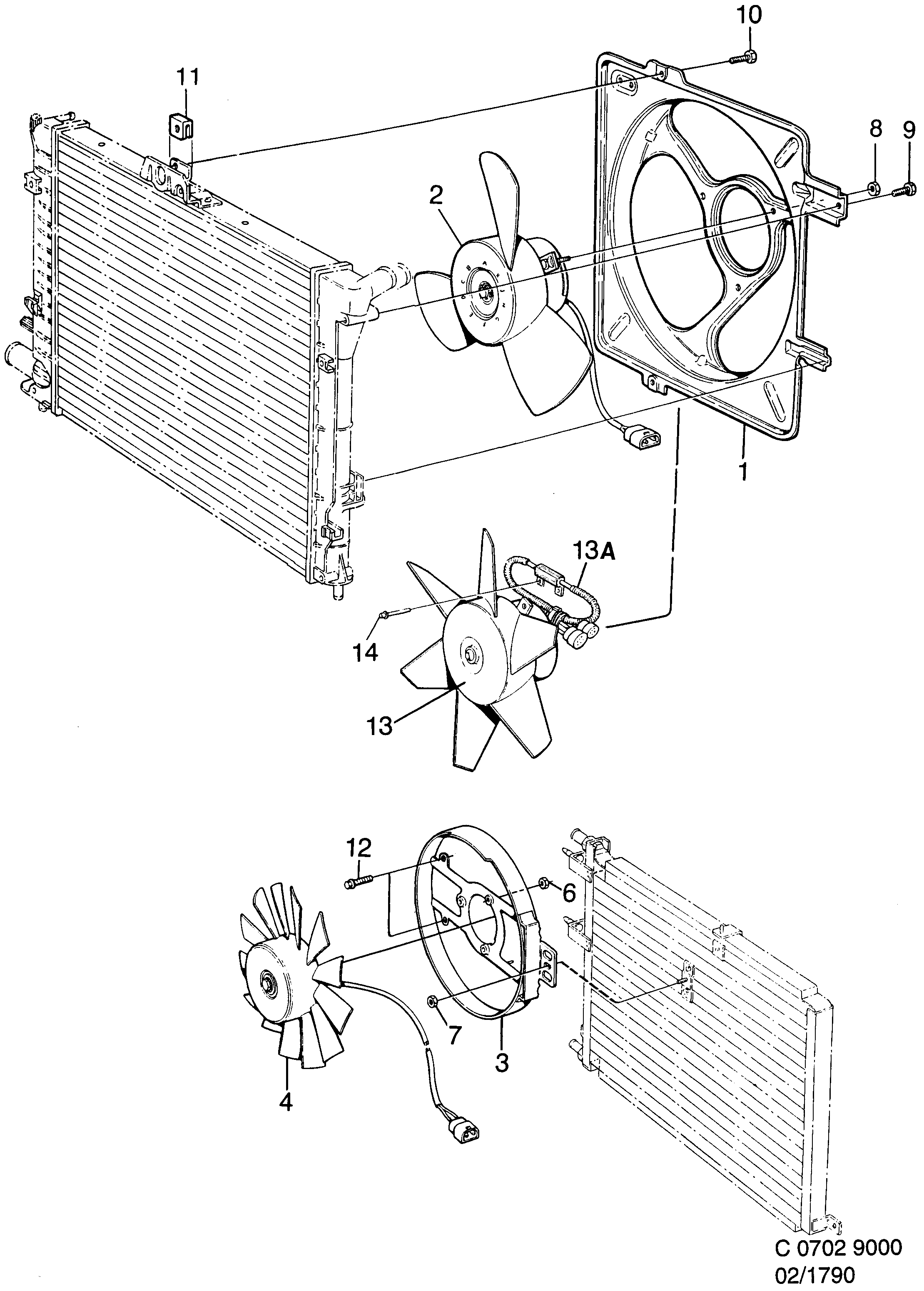

1790: Engine - Cooling system - Fan, etc
(1990 - 1993 | TURBO) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 92 918 Fan shroud 44 | 1 | |
| 2 | 93 82 144 Fan unit 44 • Fan motor and blade... | 1 | |
| 3 | 75 77 885 Fan shroud 44 | 1 | |
| 4 | 75 98 980 Fan unit 44 • AC | 1 | |
| 6 | 79 75 576 92 153 043 Nut 44 | 3 | |
| 7 | 79 71 658 11 900 428 Nut 44 | 1 | |
| 8 | 79 74 298 92 153 044 Nut 44 | 3 | |
| 9 | 79 71 823 Screw 44 | 1 | |
| 10 | 79 22 800 Screw 44 | 2 | |
| 11 | 94 27 014 Clip nut 44 | 2 | |
| 12 | 79 72 607 92 153 146 Screw 44 | 2 | |
| 13 | 75 92 819 Fan unit -1993 • 44 • Two-speed. | 1 | |
| 13A | 43 95 034 Cable harness 44 | 1 | |
| 14 | 79 72 045 Rivet 1990-1991 • 44 | 2 | |
96 27 373 | X |
