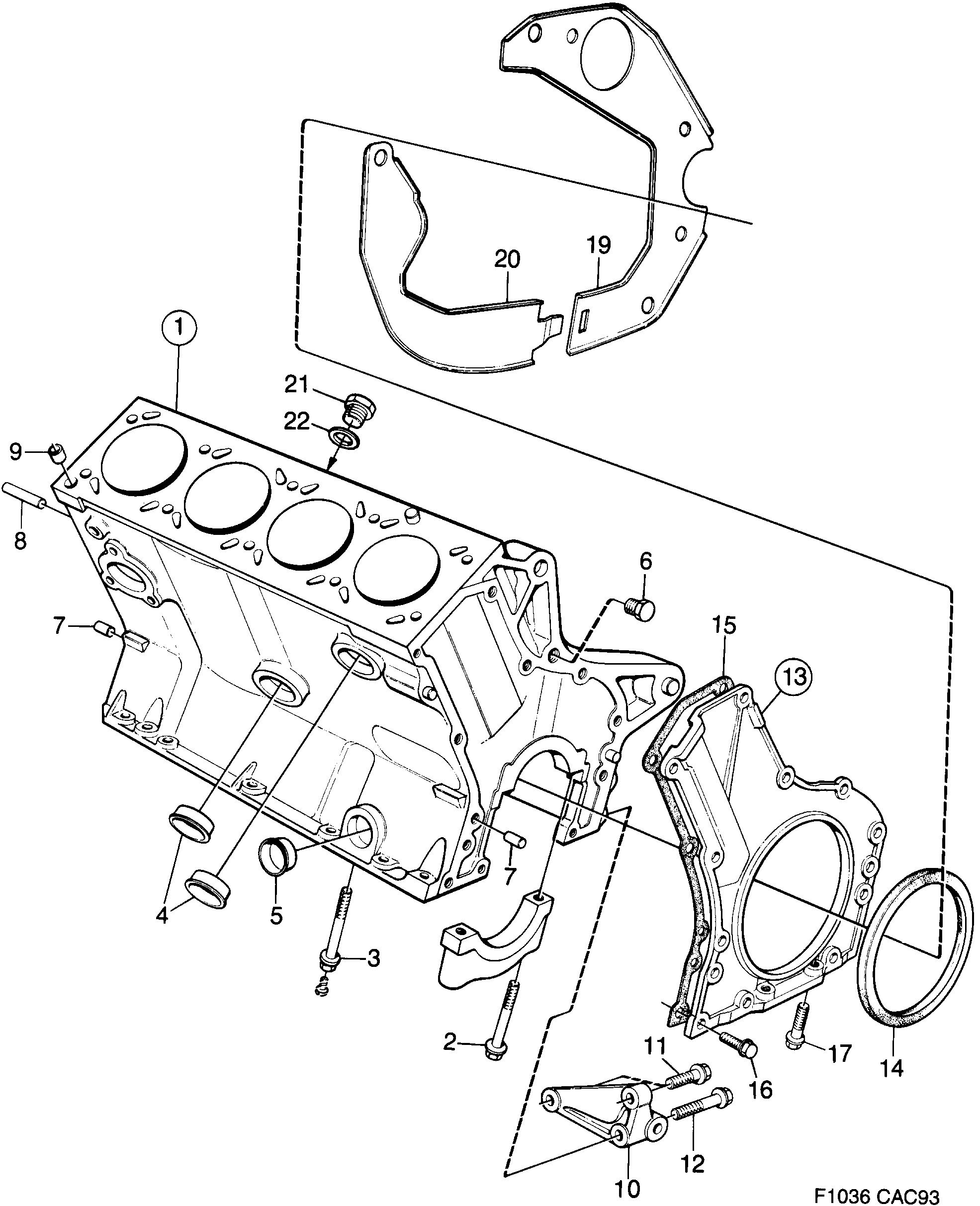

200: Engine - Short block - Cylinder block
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 16 859 Cylinder block 05 | 1 | |
| 2 | 83 52 502 91 28 687 Screw 05 | 6 | |
| 3 | 93 08 537 Screw 05 | 4 | |
| 4 | 91 16 757 32 000 339 Sealing washer 05 | 2 | |
| 5 | 75 88 320 Sealing washer 05 | 1 | |
| 6 | 83 48 047 Plug 05 | 1 | |
| 7 | 83 66 007 Guide 05 | 4 | |
| 8 | 80 34 761 Pin 05 | 1 | |
| 9 | 83 46 470 Guide 05 | 4 | |
| 10 | 93 57 203 Bracket 05 | 1 | |
| 11 | 81 25 205 Screw 05 | 2 | |
| 12 | 81 25 262 Screw 05 | 1 | |
| 13 | 75 16 248 Plate 05 | 1 | |
| 14 | 93 50 158 55 557 240 Seal 1990-1991 • 05 | 1 | |
| 15 | 75 63 679 Gasket -1992 • 05 | 1 | |
| 16 | 81 25 163 Screw 05 | 9 | |
| 17 | 81 25 189 Screw 05 | 2 | |
| 19 | 93 88 653 Splash guard 1990-1990 • 05 | 1 | |
| 20 | 93 88 661 Splash guard 05 | 1 | |
| 21 | 81 23 721 75 63 042 Plug I | 1 | |
| 22 | 81 24 141 92 150 435 Gasket I | 1 |
