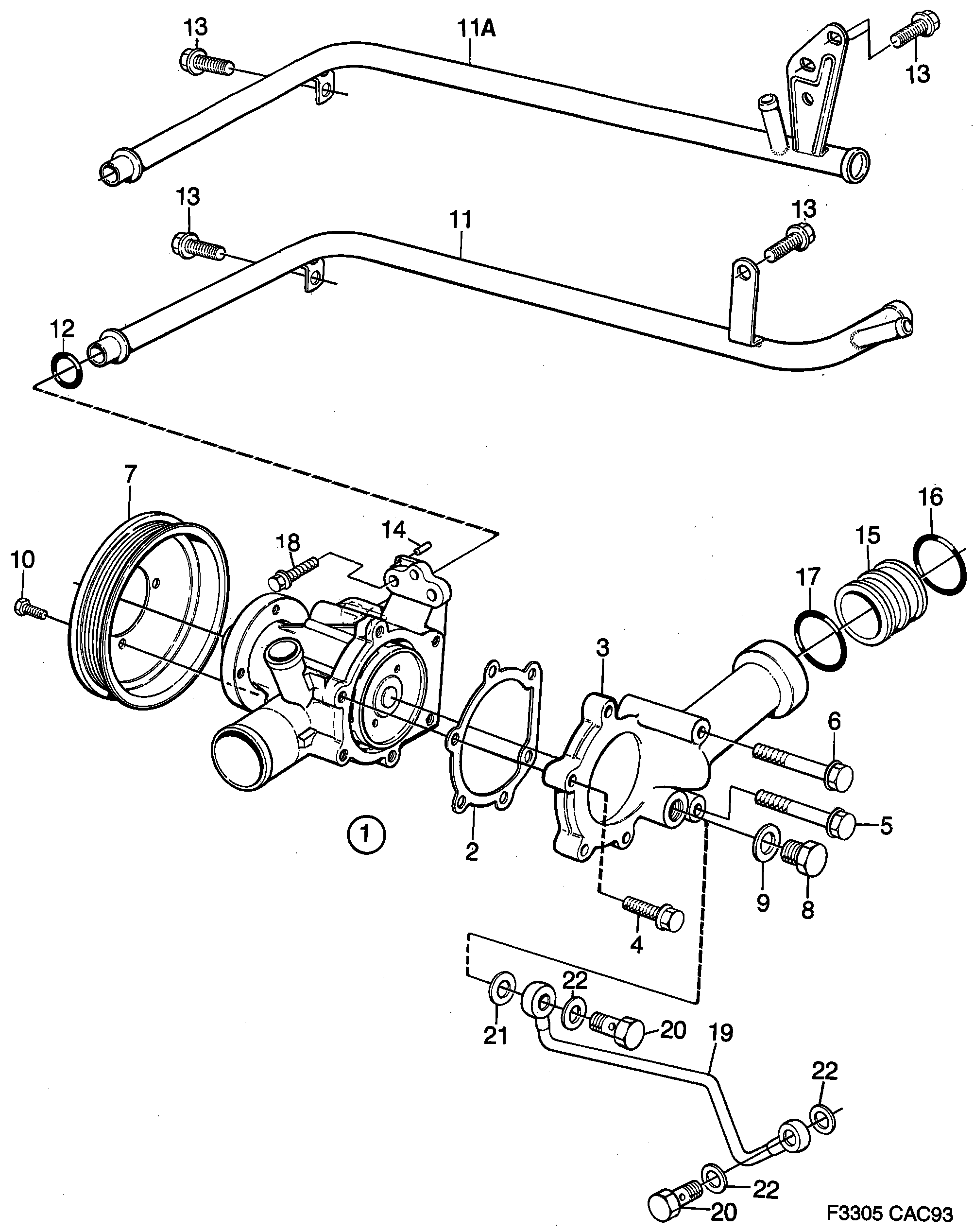

2030: Engine - Cooling system - Coolant pump
(1990 - 1993 | B234I) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 91 13 325 Gasket B234I | 1 | |
| 3 | 91 14 265 Bracket B234I | 1 | |
| 4 | 81 25 189 Screw B234I | 4 | |
| 5 | 81 25 247 Screw B234I | 1 | |
| 6 | 81 25 270 79 85 062 Screw B234I | 1 | |
| 7 | 75 65 104 Pulley B234I | 1 | |
| 8 | 81 23 721 75 63 042 Plug B234I | 1 | |
| 9 | 75 22 709 Gasket B234I | 1 | |
| 10 | 80 19 903 79 85 930 Screw B234I | 4 | |
| 11 | 91 13 358 Tube -1990 • B234I | 1 | |
| 11A | 78 58 921 30 551 951 Tube 1990- • B234I | 1 | |
| 12 | 79 72 698 91 46 598 O-ring B234I | 1 | |
| 13 | 81 25 007 Screw -1990 • B234I | 2 | |
| 13 | 81 29 892 Screw 1990- • B234I | 3 | |
| 14 | 80 49 405 79 18 337 Tube 1990-1992 • B234I | 1 | |
| 15 | 91 13 341 Tube B234I | 1 | |
| 16 | 80 46 674 55 562 943 O-ring B234I | 1 | |
| 17 | 80 46 682 30 551 915 O-ring B234I | 1 | |
| 18 | 81 25 197 Screw B234I | 3 | |
| 19 | 91 14 083 30 539 180 Tube TURBO • T25 | 1 | |
| 19 | 91 37 928 Tube TURBO • TD04 | 1 | |
| 20 | 81 23 903 92 150 977 Banjo screw TURBO • T25 | 2 | |
| 20 | 91 36 524 90 490 324 Banjo screw TURBO • TD04 | 2 | |
| 21 | 83 26 712 41 61 162 Seal TURBO | 1 | |
| 22 | 81 24 141 92 150 435 Gasket TURBO • T25 | 3 | |
| 22 | 81 24 133 11 066 422 Gasket TURBO • TD04 | 3 |
