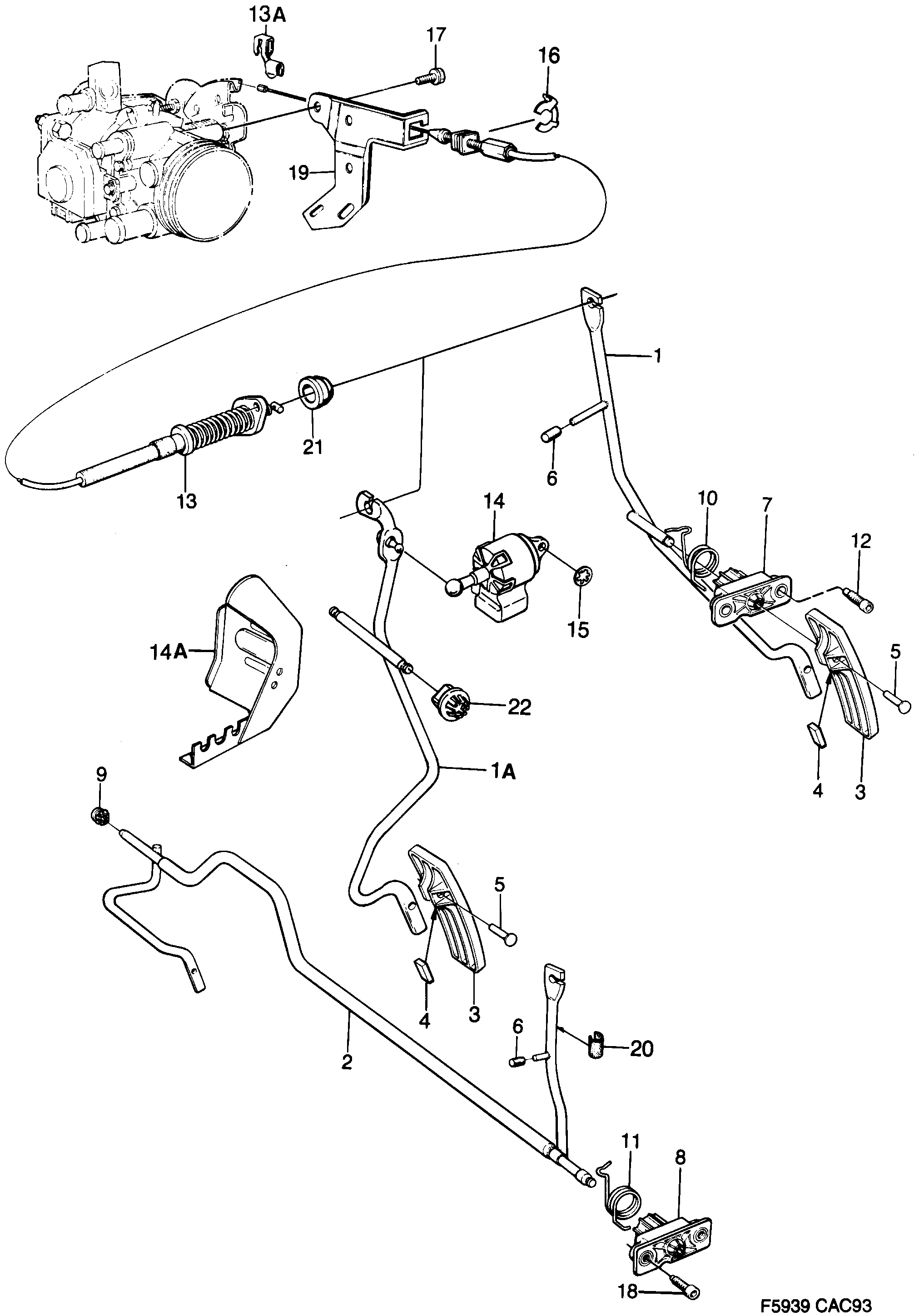

2090: Engine - Engine control - Accelerator linkage
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 67 903 Pedal LHD | 1 | |
| 1A | 40 00 386 Accelerator arm LHD • ETS | 1 | |
| 2 | 89 72 176 Pedal RHD | 1 | |
| 2 | 41 05 276 Accelerator arm RHD • ETS | 1 | |
| 3 | 71 83 965 Pedal plate | 1 | |
| 4 | 71 83 973 Spacer | 1 | |
| 5 | 79 58 770 Rivet | 1 | |
| 6 | 89 50 396 Damper | 1 | |
| 7 | 89 60 924 Bearing centre | 1 | |
| 8 | 89 60 924 Bearing centre RHD | 1 | |
| 9 | 89 57 565 Plastic bushing RHD | 1 | |
| 10 | 89 60 080 Spring | 1 | |
| 10 | 89 65 949 Spring | 1 | |
| 11 | 89 60 080 Spring RHD • WITHOUT ETS | 1 | |
| 12 | 89 61 195 Screw | 2 | |
| 13 | 75 36 444 Cable -1990 • B202 | 1 | |
| 13 | 40 18 289 Throttle control cable 1990- • B202 | 1 | |
| 13A | 40 18 172 Clamp LHD | 1 | |
| 13 | 40 18 263 Throttle control cable 1990-1990 • B234 | 1 | |
| 13 | 75 36 451 Cable -1990 • B202 | 1 | |
| 13 | 40 18 297 Throttle control cable 1990- • B202 | 1 | |
| 13 | 40 18 271 Throttle control cable 1990-1990 • B234 | 1 | |
| 14 | 40 15 194 Pedal sensor ETS | 1 | |
| 14 | 41 61 238 Pedal sensor ETS | 1 | |
| 14A | 44 26 532 Protection RHD • ETS | 1 | |
| 15 | 40 15 574 Lock ring ETS | 1 | |
| 16 | 75 33 136 Lock ring ETS | 1 | |
| 17 | 79 71 294 Screw 1990-1992 | 3 | |
| 18 | 89 61 195 Screw RHD | 2 | |
| 19 | 75 66 292 Bracket 1990-1992 • B202 | 1 | |
| 19 | 74 82 300 Bracket 1990-1990 • B234 | 1 | |
| 20 | 41 90 021 Damper RHD • ETS | 1 | |
| 21 | 75 36 501 Bushing | 1 | |
| 22 | 89 33 392 Plastic bushing ETS | 2 |
