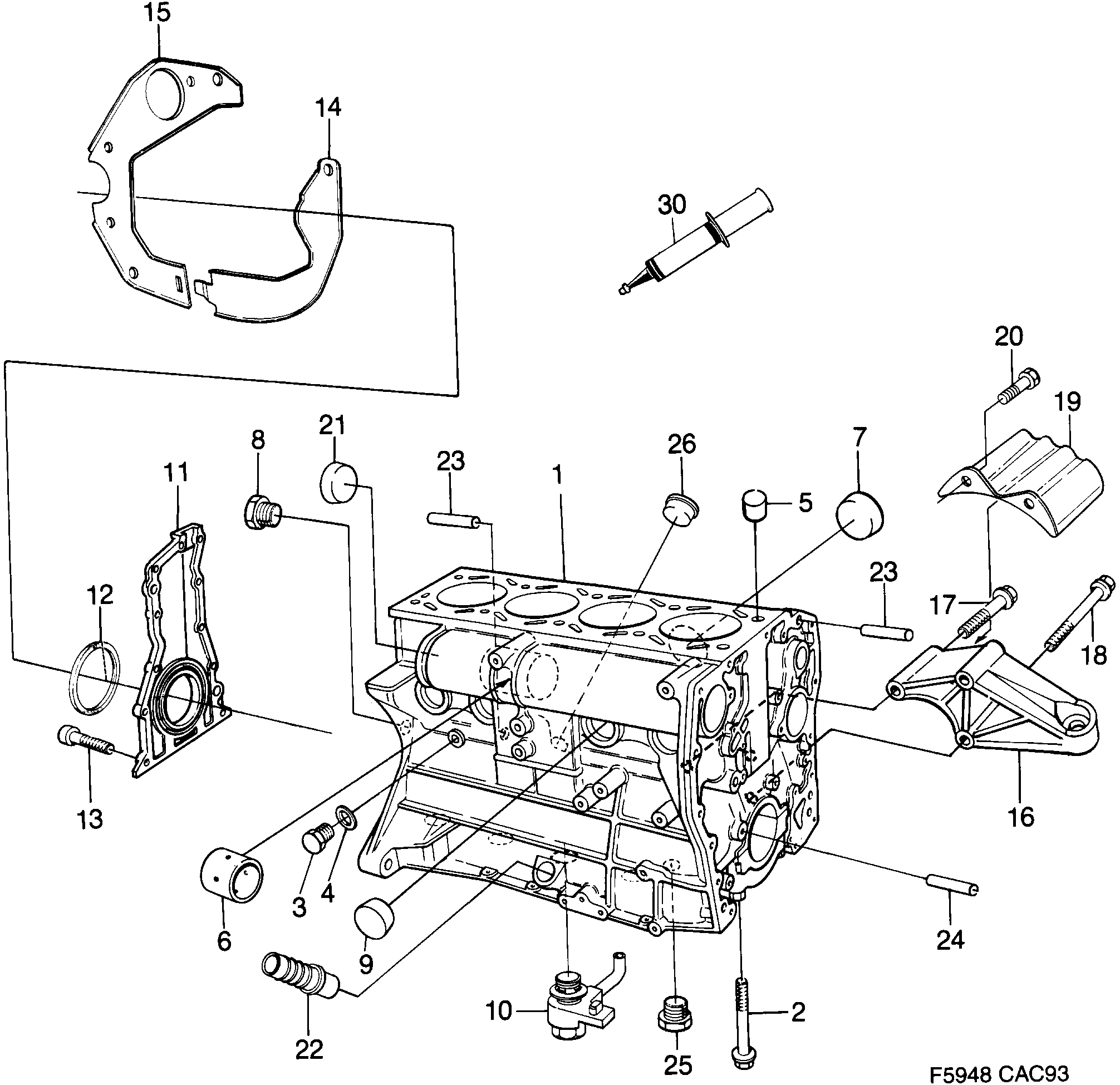

230: Engine - Short block - Cylinder block
(1990 - 1993 | B234I) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 17 821 Compression ring 1990-1991 • I | 1 | |
| 1 | 78 71 965 Cylinder block 1990-1991 • TURBO | 1 | |
| 2 | 83 52 502 91 28 687 Screw B234I | 10 | |
| 3 | 81 23 721 75 63 042 Plug B234I | 1 | |
| 4 | 81 24 141 92 150 435 Gasket B234I | 1 | |
| 5 | 83 46 470 Guide B234I | 5 | |
| 6 | 75 88 684 Bushing B234I | 2 | |
| 7 | 79 85 120 Sealing washer B234I • (3463171) | 6 | |
| 8 | 83 48 047 Plug B234I | 1 | |
| 9 | 34 83 419 Plug B234I | 1 | |
| 10 | 91 09 919 91 67 677 Piston cooling jet TURBO | 4 | |
| 11 | 91 14 372 Plate B234I | 1 | |
| 12 | 93 50 158 55 557 240 Seal 1990-1991 • B234I | 1 | |
| 13 | 81 25 031 79 74 694 Screw B234I | 11 | |
| 14 | 75 87 470 Splash guard B234I | 1 | |
| 15 | 74 83 068 Splash guard B234I | 1 | |
| 16 | 91 17 557 Bracket B234I | 1 | |
| 17 | 81 25 452 Screw B234I | 2 | |
| 18 | 81 25 494 Screw B234I | 1 | |
| 19 | 91 17 284 Heat shield 1990-1992 • TURBO | 1 | |
| 20 | 81 29 876 Screw TURBO | 2 | |
| 21 | 81 23 259 92 151 501 Sealing washer B234I | 2 | |
| 22 | 78 55 950 Nipple B234I | 1 | |
| 23 | 75 85 052 Guide B234I | 4 | |
| 24 | 80 35 040 Pin B234I | 1 | |
| 25 | 91 15 049 30 520 417 Plug I | 4 | |
| 26 | 81 23 218 Sealing washer I | 1 | |
| 30 | 90 297 970 Flange sealant B234I • 50 ML | X |
