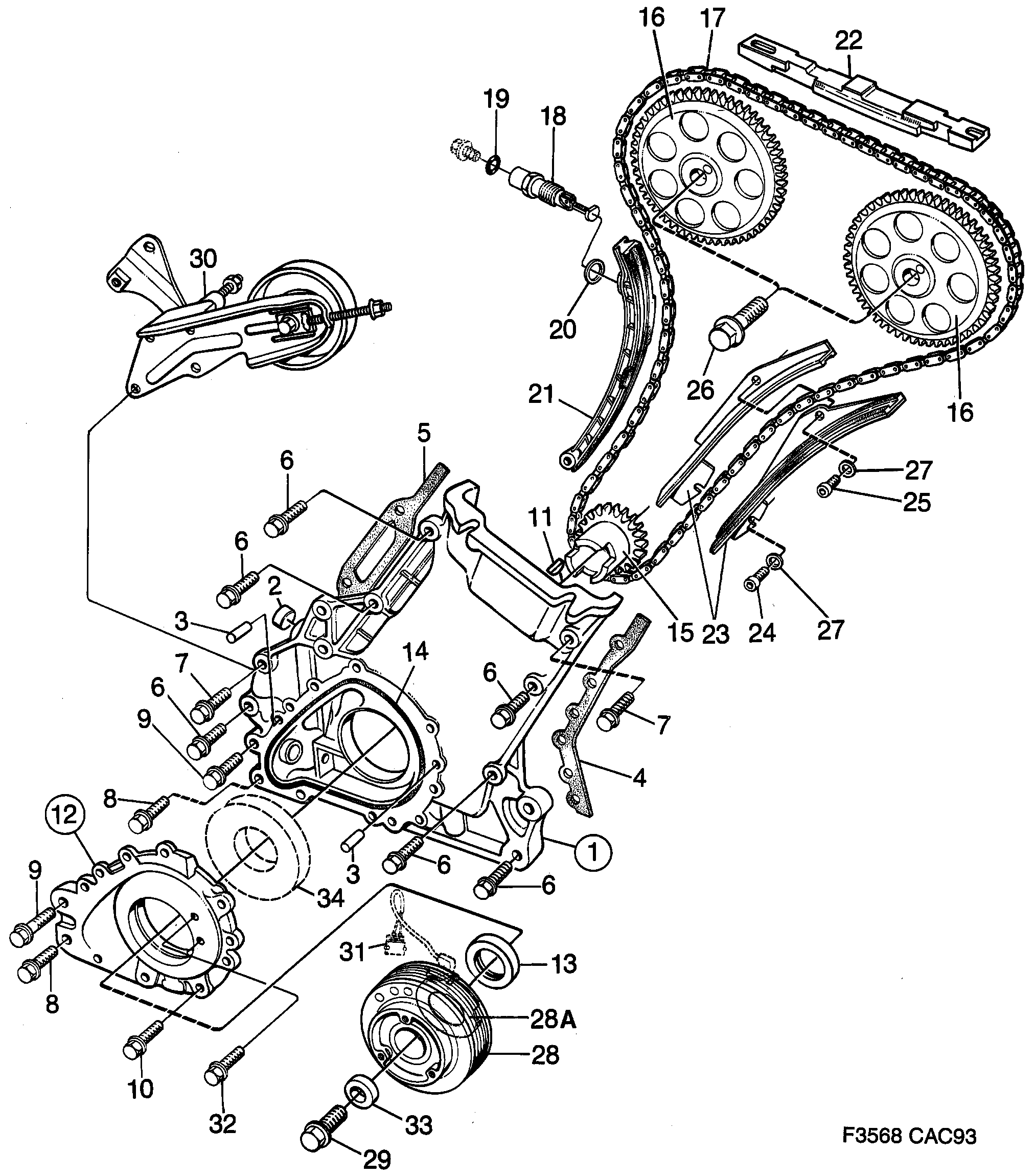

290: Engine - Short block - Transmission
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 17 113 Cover 05 | 1 | |
| 2 | 81 23 176 Plug 05 | 1 | |
| 3 | 80 34 456 Pin 1990-1992 • 05 | 2 | |
| 4 | 91 17 847 93 21 795 Gasket -1992 • 05 | 1 | |
| 5 | 91 17 839 Gasket -1992 • 05 | 1 | |
| 6 | 81 25 213 Screw 05 | 6 | |
| 7 | 81 25 239 Screw 05 | 3 | |
| 8 | 81 25 247 Screw 05 | 1 | |
| 9 | 81 25 262 Screw 05 | 1 | |
| 10 | 81 25 049 Screw 05 | 8 | |
| 11 | 83 47 122 Key 1990-1990 • 05 | 1 | |
| 12 | 75 86 993 Oil pump housing 05 | 1 | |
| 13 | 93 09 204 55 557 231 Seal 05 | 1 | |
| 14 | 83 69 829 30 543 193 Seal 1990-1991 • 05 | 1 | |
| 15 | 75 18 640 Chain gear 05 | 1 | |
| 16 | 75 00 127 Chain gear 05 | 2 | |
| 17 | 75 00 697 Chain 05 | 1 | |
| 17 | 93 21 837 Chain 05 • ALTERNATIVE | Open, with... | 1 | |
| 18 | 75 85 086 Chain tensioner 05 | 1 | |
| 19 | 80 48 670 O-ring 05 | 1 | |
| 20 | 75 08 690 Seal 05 | 1 | |
| 21 | 91 17 805 88 58 276 Chain control 1990-1990 • 05 | 1 | |
| 22 | 88 59 324 30 518 277 Chain control 05 | 1 | |
| 23 | 88 59 092 91 33 505 Chain control 1990-1990 • 05 | 1 | |
| 24 | 91 66 299 Screw 05 • (8019929) | 1 | |
| 25 | 91 66 307 Screw 05 • (8019960) | 1 | |
| 26 | 91 07 541 Screw 05 | 2 | |
| 27 | 91 66 364 Washer 05 • (8029951) | 2 | |
| 28 | 93 21 530 Pulley -1990 • TURBO | 1 | |
| 28 | 93 21 548 Pulley -1990 • I | 1 | |
| 28 | 87 89 307 30 544 757 Pulley 1990-1991 • 05 | 1 | |
| 28A | Aperture discIgnition system 1990-1992 • 05 | ||
Aperture discIgnition system 05 | |||
| 29 | 83 48 534 Screw 1990-1990 • 05 | 1 | |
| 30 | Tension pulleySteering assembly 05 | ||
| 31 | SensorIgnition system 1990-1992 • 05 | ||
| 32 | 87 88 150 Screw 05 | 2 | |
| 34 | Pump kitShort block 05 |
