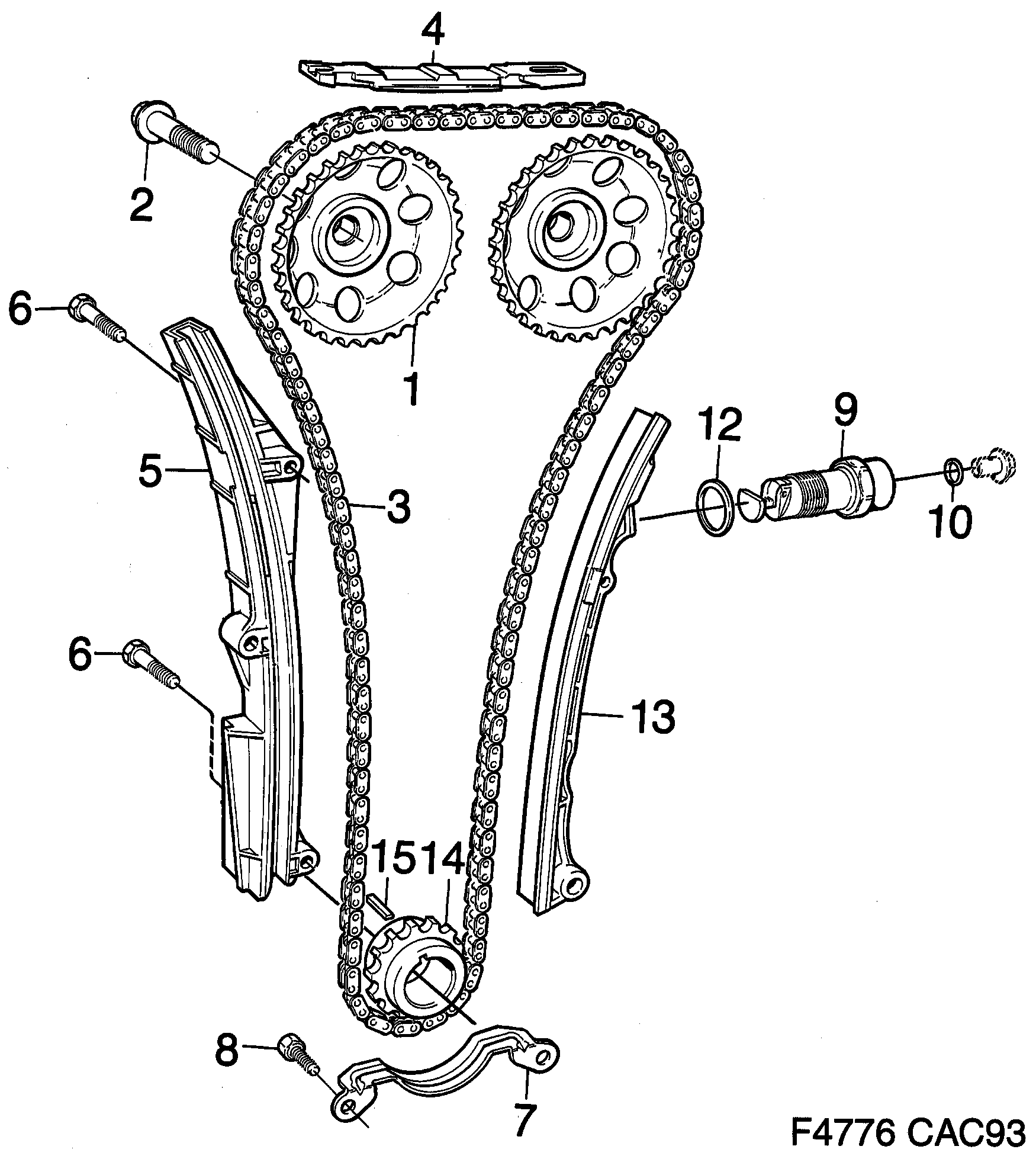

Pos.	Part No.	Description	Usage	Qty
1	91 15 205 Chain gear B234I	Chain gear	B234I	2
2	91 07 541 Screw B234I	Screw	B234I	2
3	74 83 761 91 34 248 Chain -1992 • B234I	Chain	-1992 B234I	1
3	93 21 845 Chain B234I • ALTERNATIVE \| Open, with...	Chain	B234I ALTERNATIVE \| Open, with...	1
4	88 59 324 30 518 277 Chain control B234I	Chain control	B234I	1
5	91 14 299 30 543 807 Chain control 1990-1990 • B234I	Chain control	1990-1990 B234I	1
6	81 25 072 Screw B234I	Screw	B234I	3
7	91 12 293 30 520 354 Chain protection B234I	Chain protection	B234I	1
8	81 25 015 79 85 930 Screw B234I	Screw	B234I	2
9	75 85 086 Chain tensioner B234I	Chain tensioner	B234I	1
10	80 48 670 O-ring B234I	O-ring	B234I	1
12	75 08 690 Seal B234I	Seal	B234I	1
13	91 14 273 30 543 808 Chain control -1992 • B234I	Chain control	-1992 B234I	1
14	91 15 197 30 520 419 Chain gear B234I	Chain gear	B234I	1
15	91 16 864 30 520 452 Key B234I	Key	B234I	1

Pos.	Part No.	Description	Usage	Qty
1	91 15 205 Chain gear B234I	Chain gear	B234I	2
2	91 07 541 Screw B234I	Screw	B234I	2
3	74 83 761 91 34 248 Chain -1992 • B234I	Chain	-1992 B234I	1
3	93 21 845 Chain B234I • ALTERNATIVE \| Open, with...	Chain	B234I ALTERNATIVE \| Open, with...	1
4	88 59 324 30 518 277 Chain control B234I	Chain control	B234I	1
5	91 14 299 30 543 807 Chain control 1990-1990 • B234I	Chain control	1990-1990 B234I	1
6	81 25 072 Screw B234I	Screw	B234I	3
7	91 12 293 30 520 354 Chain protection B234I	Chain protection	B234I	1
8	81 25 015 79 85 930 Screw B234I	Screw	B234I	2
9	75 85 086 Chain tensioner B234I	Chain tensioner	B234I	1
10	80 48 670 O-ring B234I	O-ring	B234I	1
12	75 08 690 Seal B234I	Seal	B234I	1
13	91 14 273 30 543 808 Chain control -1992 • B234I	Chain control	-1992 B234I	1
14	91 15 197 30 520 419 Chain gear B234I	Chain gear	B234I	1
15	91 16 864 30 520 452 Key B234I	Key	B234I	1
