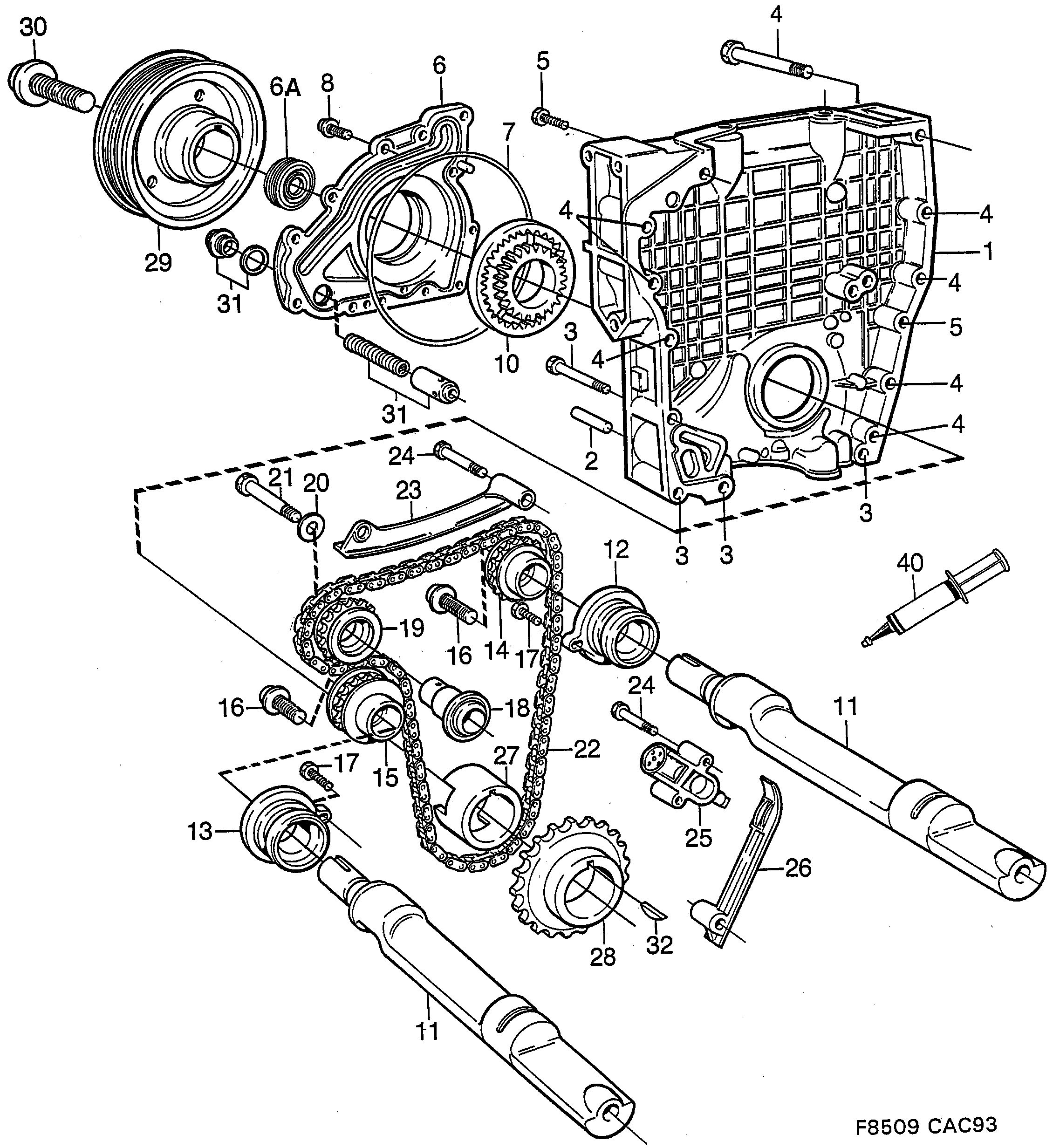

350: Engine - Short block - Transmission - Balancer shafts

(1990 - 1993 | B234I) | For 9000 (1990)

100%

(N°320)

Section 350

(N°380)

Pos.	Part No.	Description	Usage	Qty
1	87 89 786 Cover B234I	Cover	B234I	1
2	80 34 456 Pin 1990-1992 • B234I	Pin	1990-1992 B234I	2
3	81 25 296 Screw B234I	Screw	B234I	4
4	81 25 247 Screw B234I	Screw	B234I	8
5	81 25 254 Screw B234I	Screw	B234I	2
6	91 15 122 Oil pump housing B234I	Oil pump housing	B234I	1
6A	93 09 204 55 557 231 Seal B234I	Seal	B234I	1
7	88 59 605 30 543 218 O-ring 1990-1991 • B234I	O-ring	1990-1991 B234I	2
8	81 25 049 Screw B234I	Screw	B234I	8
10	Pump kitLubricating system B234I	Pump kitLubricating system B234I			1
10	Pump kitKits B234I	Pump kitKits B234I			1
11	91 16 047 Balance shaft -1990 • B234I	Balance shaft	-1990 B234I	2
11	91 06 949 Balance shaft 1990-1991 • B234I	Balance shaft	1990-1991 B234I	2
12	91 15 288 Bearing housing B234I • Intake.	Bearing housing	B234I Intake.	1
13	91 15 288 Bearing housing B234I • Exhaust.	Bearing housing	B234I Exhaust.	1
14	91 16 393 91 40 690 Chain gear 1990-1992 • B234I • inlet	Chain gear	1990-1992 B234I inlet	1
15	91 16 419 91 40 674 Chain gear 1990-1992 • B234I • outlet	Chain gear	1990-1992 B234I outlet	1
16	75 84 394 91 07 541 Screw -1990 • B234I	Screw	-1990 B234I	2
16	91 07 541 Screw 1990- • B234I	Screw	1990- B234I	2
17	81 25 031 79 74 694 Screw B234I	Screw	B234I	2
18	91 13 119 Shaft B234I	Shaft	B234I	1
19	91 16 898 91 40 658 Chain gear 1990-1992 • B234I	Chain gear	1990-1992 B234I	1
20	91 13 424 Thrust washer B234I	Thrust washer	B234I	1
21	80 83 024 Screw 1990-1992 • B234I	Screw	1990-1992 B234I	1
22	74 85 105 Chain B234I	Chain	B234I	1
23	91 14 331 91 32 812 Chain control 1990-1991 • B234I	Chain control	1990-1991 B234I	1
24	81 25 072 Screw B234I	Screw	B234I	4
25	91 14 356 Chain tensioner B234I	Chain tensioner	B234I	1
26	91 14 315 Chain control B234I	Chain control	B234I	1
27	91 15 247 Companion flange B234I	Companion flange	B234I	1
28	88 57 575 91 40 716 Chain gear 1990-1991 • B234I	Chain gear	1990-1991 B234I	1
29	91 12 855 30 544 756 Pulley 1990-1991 • B234I	Pulley	1990-1991 B234I	1
30	91 16 443 Screw B234I	Screw	B234I	1
31	Reduction valveLubricating system B234I	Reduction valveLubricating system B234I			1
32	KeyShort block B234I	KeyShort block B234I
40	90 297 970 Flange sealant B234I • 50 ML	Flange sealant	B234I 50 ML	X
