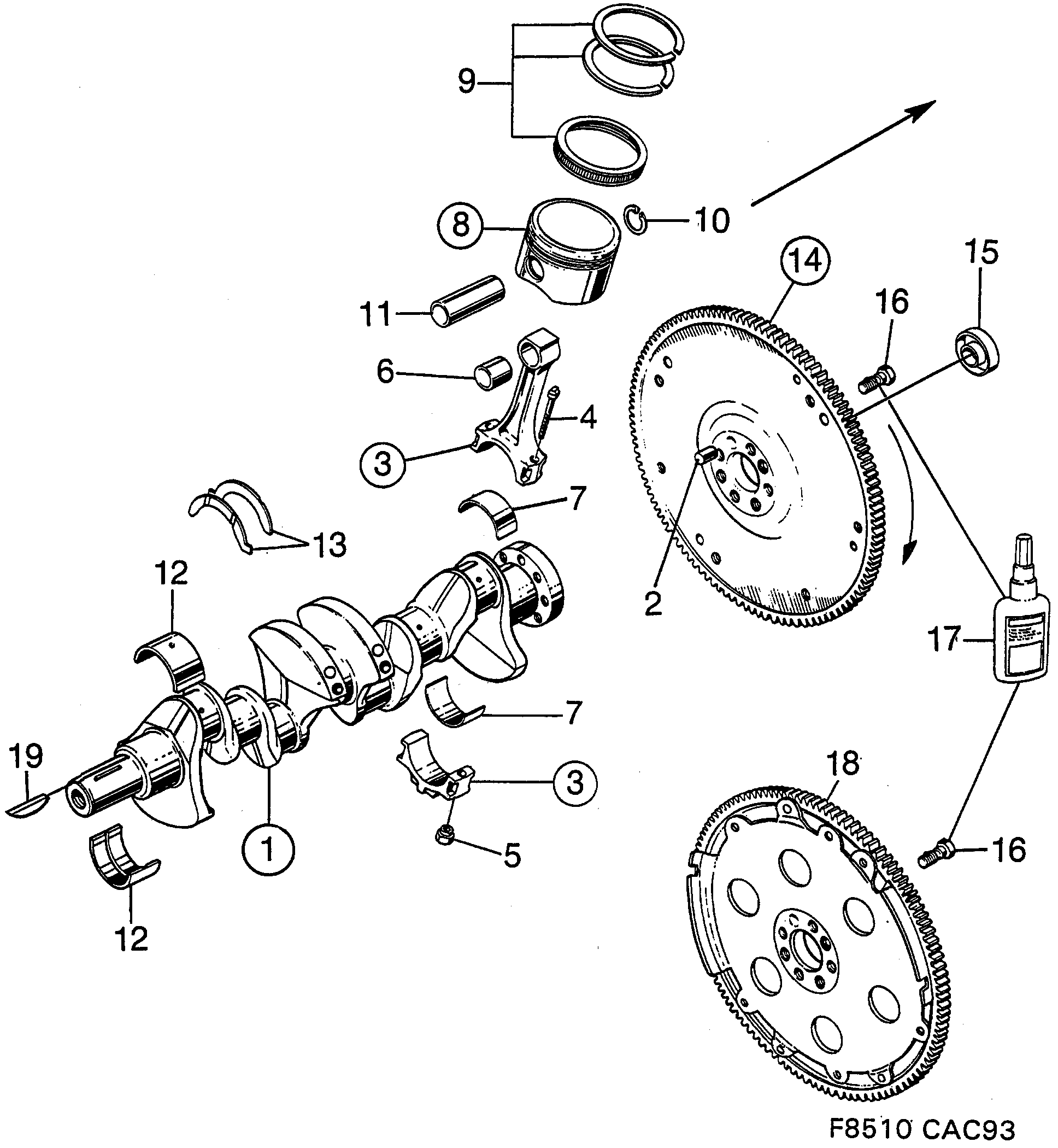

380: Engine - Short block - Crankshaft - Piston
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 21 589 Crankshaft 1990-1990 • 05 | 1 | |
87 87 228 Crankshaft 05 • PART OF 9321589 | 1 | ||
78 56 172 Spacer 05 • PART OF 9321589 | 1 | ||
91 16 443 Screw 05 • PART OF 9321589 | 1 | ||
91 16 864 30 520 452 Key 05 • PART OF 9321589 | 1 | ||
| 2 | 80 34 928 Pin 05 | 1 | |
| 3 | 75 62 259 46 11 182 Connecting rod 05 | 4 | |
| 4 | 75 21 255 Screw 05 | 8 | |
| 5 | 75 62 275 Nut 05 | 8 | |
| 6 | 83 47 676 Bushing 05 | 4 | |
| 7 | 83 47 650 Connecting rod bearing 05 • Red | 8 | |
| 7 | 83 55 349 Connecting rod bearing 05 • Blue | 8 | |
| 7 | 83 49 938 Connecting rod bearing 05 • 0,25 MM | Undersize.... | 8 | |
| 7 | 83 55 356 Connecting rod bearing 05 • 0,25 MM | Undersize.... | 8 | |
| 7 | 83 49 946 Connecting rod bearing 05 • 0,50 MM | Undersize.... | 8 | |
| 7 | 83 55 364 Connecting rod bearing 05 • 0,50 MM | Undersize.... | 8 | |
| 8 | 75 20 927 Piston I • CLASS AB | 4 | |
| 8 | 75 24 895 Piston -1991 • TURBO • CLASS AB | 4 | |
| 8 | 75 20 935 Piston I • CLASS B | 4 | |
| 8 | 75 24 903 Piston -1991 • TURBO • CLASS B | 4 | |
| 8 | 75 20 943 Piston I • CLASS C | 4 | |
| 8 | 75 24 911 Piston -1991 • TURBO • CLASS C | 4 | |
| 8 | 75 20 950 Piston I • 0,50 MM | Oversize. | 4 | |
| 8 | 75 24 929 Piston -1991 • TURBO • 0,50 MM | Oversize. | 4 | |
| 8 | 75 20 968 Piston I • 1,0 MM | Oversize. | 4 | |
| 8 | 75 24 937 Piston -1991 • TURBO • 1,0 MM | Oversize. | 4 | |
| 9 | 75 20 513 Piston rings, set 05 • STD | 4 | |
| 9 | 75 20 521 Piston rings, set 05 • 0,50 MM | Oversize. | 4 | |
| 9 | 75 20 539 Piston rings, set 05 • 1,0 MM | Oversize. | 4 | |
| 10 | 83 47 577 Lock ring 05 | 8 | |
| 11 | 83 46 983 Gudgeon pin 05 • L=73MM | 4 | |
| 11 | 93 166 808 Gudgeon pin 05 • L=68MM (75 68 942)... | 4 | |
| 12 | 83 50 936 Main bearing 05 • Red | 10 | |
| 12 | 83 55 315 Main bearing 05 • Blue | 10 | |
| 12 | 83 50 977 Main bearing 05 • 0,25 MM | Undersize.... | 10 | |
| 12 | 83 55 323 Main bearing 05 • 0,25 MM | Undersize.... | 10 | |
| 12 | 83 50 985 Main bearing 05 • 0,50 MM | Undersize.... | 10 | |
| 12 | 83 55 331 Main bearing 05 • 0,50 MM | Undersize.... | 10 | |
| 13 | 83 47 270 Thrust washer 05 | 2 | |
| 14 | 75 21 610 Flywheel TURBO | 1 | |
| 14 | 75 09 102 Flywheel I | 1 | |
| 15 | 75 69 809 Guide ring 05 | 1 | |
| 16 | 88 59 191 Screw 05 | 7 | |
| 17 | 74 96 292 Nut lock 05 • 50ML | strong red | X | |
| 18 | 88 56 965 Companion flange 05 | 1 | |
| 19 | KeyShort block 05 |
