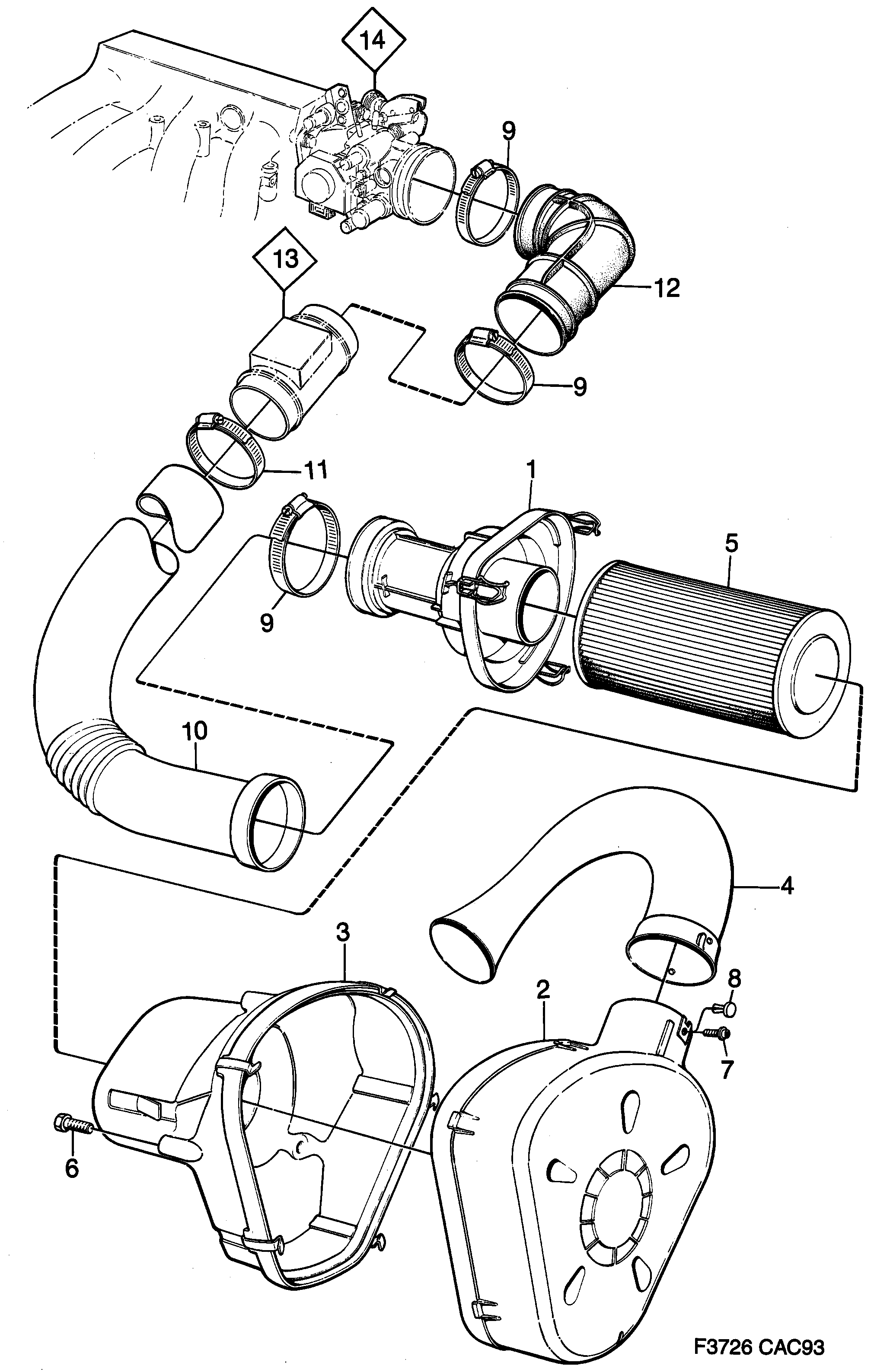

620: Engine - Fuel system - Air cleaner
(1990 - 1992) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 76 706 Cover 06 | 1 | |
| 2 | 93 91 616 Air cleaner housing 06 | 1 | |
| 3 | 93 90 170 Air cleaner housing 06 | 1 | |
| 4 | 93 90 915 Pipe 06 | 1 | |
| 5 | 93 90 907 Air filter 06 | 1 | |
| 6 | 79 77 788 Screw 06 | 3 | |
| 7 | 79 72 888 Screw 1990-1990 • 06 | 2 | |
| 9 | 79 70 155 92 153 080 Hose clamp 06 | 3 | |
| 10 | 89 76 607 Tube 06 | 1 | |
| 11 | 79 70 148 92 153 079 Hose clamp 06 | 1 | |
| 12 | 93 88 968 Hose 06 | 1 | |
| 13 | Mass air flow sensorFuel system 06 | ||
| 14 | Throttle bodyIntake and exhaust system 06 |
