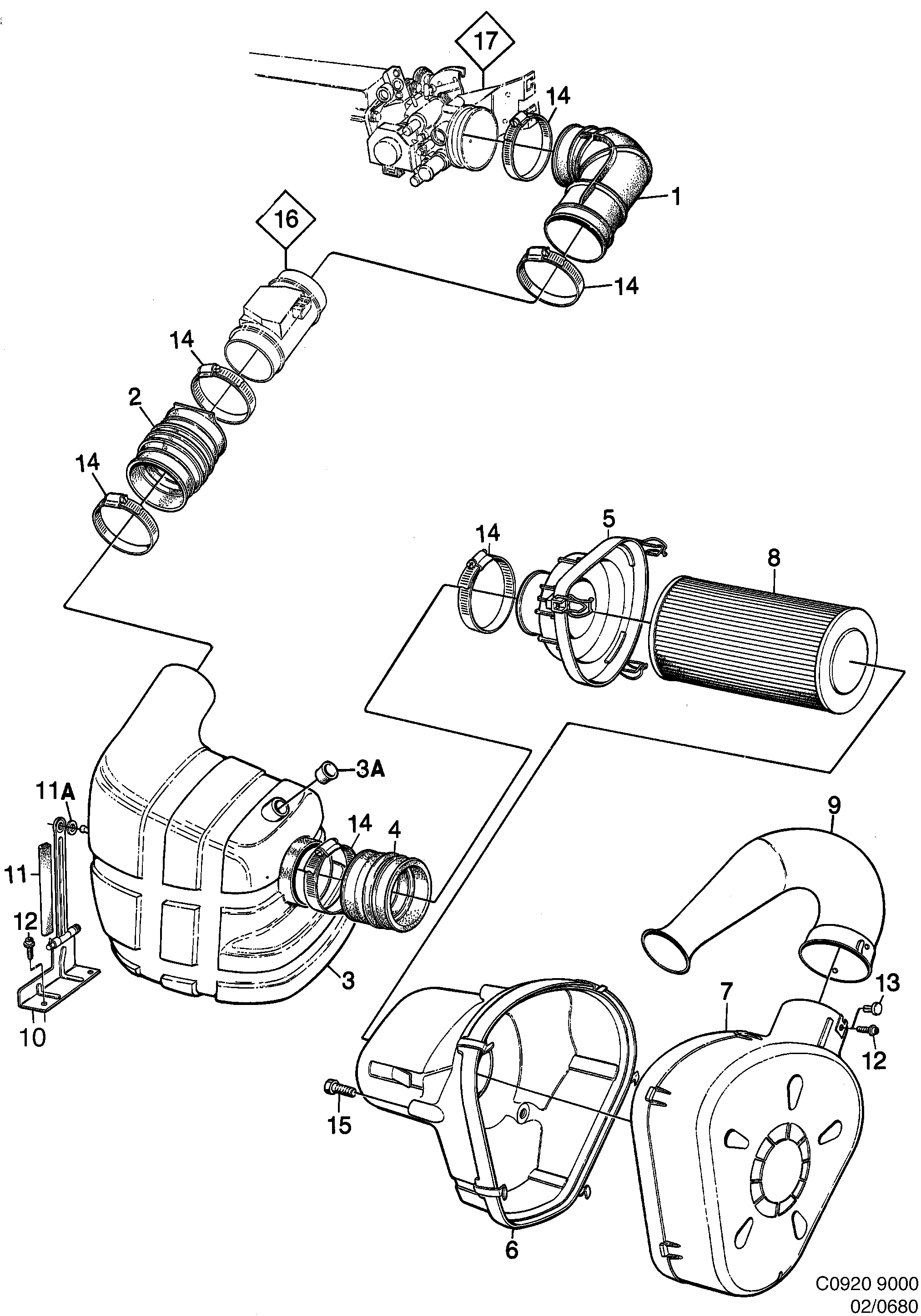

680: Engine - Fuel system - Air cleaner
(1990 - 1993 | PETROL) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 76 060 Hose PETROL | 1 | |
| 2 | 40 15 962 Hose PETROL | 1 | |
| 3 | 41 58 234 Silencer PETROL | 1 | |
| 3A | 45 25 028 Plug PETROL | 1 | |
| 4 | 40 15 947 Hose PETROL | 1 | |
| 5 | 40 16 861 Cover PETROL | 1 | |
| 6 | 93 90 170 Air cleaner housing PETROL | 1 | |
| 7 | 93 91 616 Air cleaner housing PETROL | 1 | |
| 8 | 93 90 907 Air filter PETROL | 1 | |
| 9 | 89 78 488 Pipe PETROL | 1 | |
| 10 | 41 58 168 Bracket PETROL • (4017257) | 1 | |
| 11 | 95 28 910 Protection PETROL | 1 | |
| 11A | 79 33 500 Bushing PETROL | 1 | |
| 12 | 79 72 888 Screw 1990-1990 • PETROL | 4 | |
| 14 | 79 70 155 92 153 080 Hose clamp PETROL | 6 | |
| 15 | 79 77 788 Screw PETROL | 3 | |
| 16 | Mass air flow sensorFuel system PETROL | ||
| 17 | Throttle bodyIntake and exhaust system PETROL |
