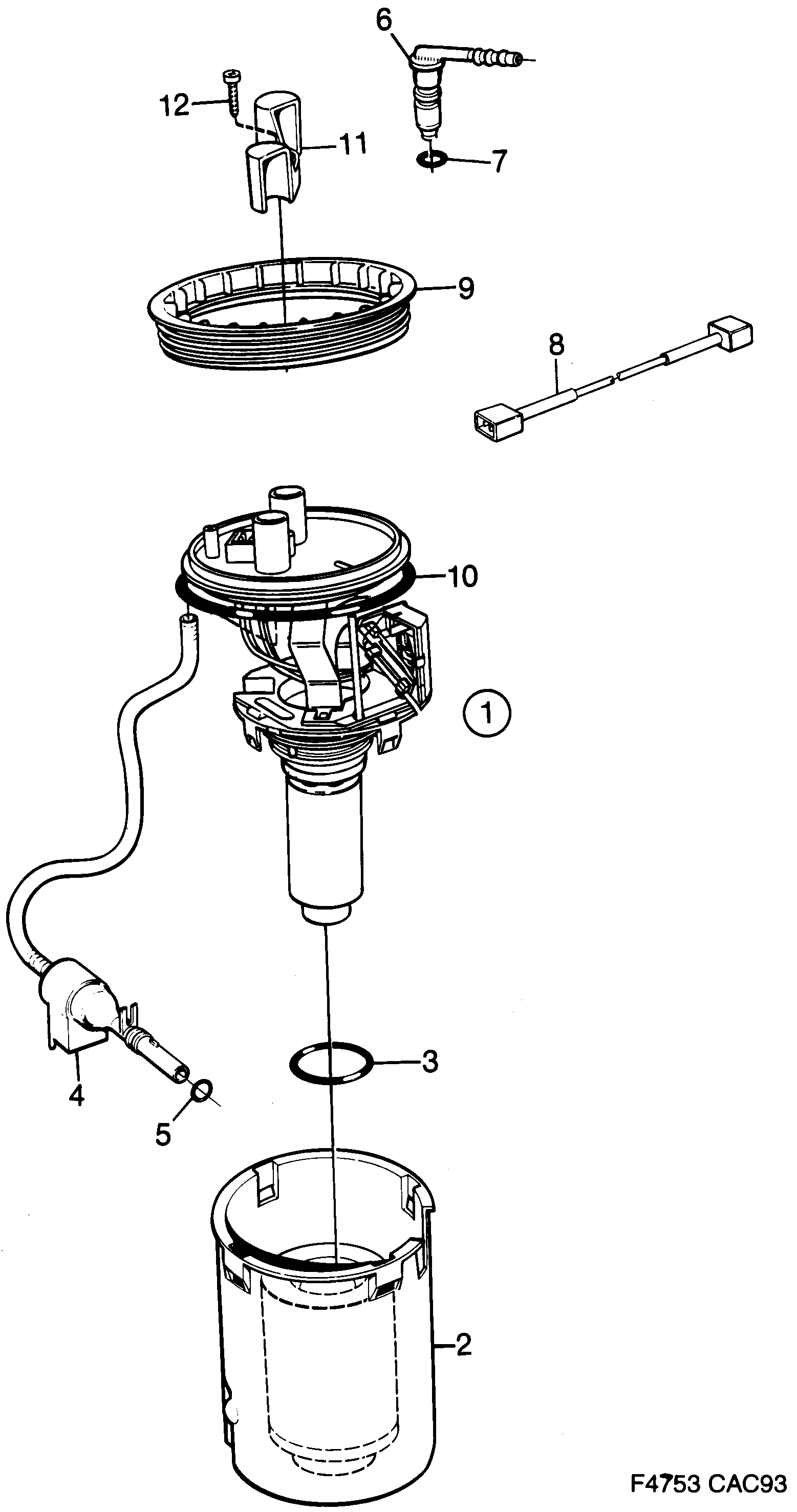

800: Engine - Fuel system - Fuel pump
(1990 - 1991) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 40 23 230 53 28 653 Fuel pump -1990 • TURBO | 1 | |
| 1 | 40 23 222 53 28 653 Fuel pump -1990 • I | 1 | |
| 1 | 53 28 653 Fuel pump 1990- • (93 21 621) | 1 | |
| 1 | 41 62 970 Fuel pump TURBO | 1 | |
| 2 | 89 80 021 Reservoir -1990 | 1 | |
| 3 | 75 91 902 O-ring -1990 | 1 | |
| 4 | 89 80 047 Ejector unit -1990 | 1 | |
| 5 | 93 94 602 O-ring | 1 | |
| 8 | 43 93 484 Connection PART OF 9321621 | 1 | |
| 9 | 41 56 550 Cover | 1 | |
| 10 | 41 56 469 41 60 511 Seal 1990-1990 | 1 | |
| 11 | 93 94 628 Lock brace | 1 | |
| 12 | 79 71 344 Screw | 1 | |
| 6 | 41 61 766 Non-return valve 1990- • PART OF 4163176, 4161758 | 1 | |
| 7 | 79 74 546 O-ring 1990- | 2 | |
Hose kitKits |
