Question 1

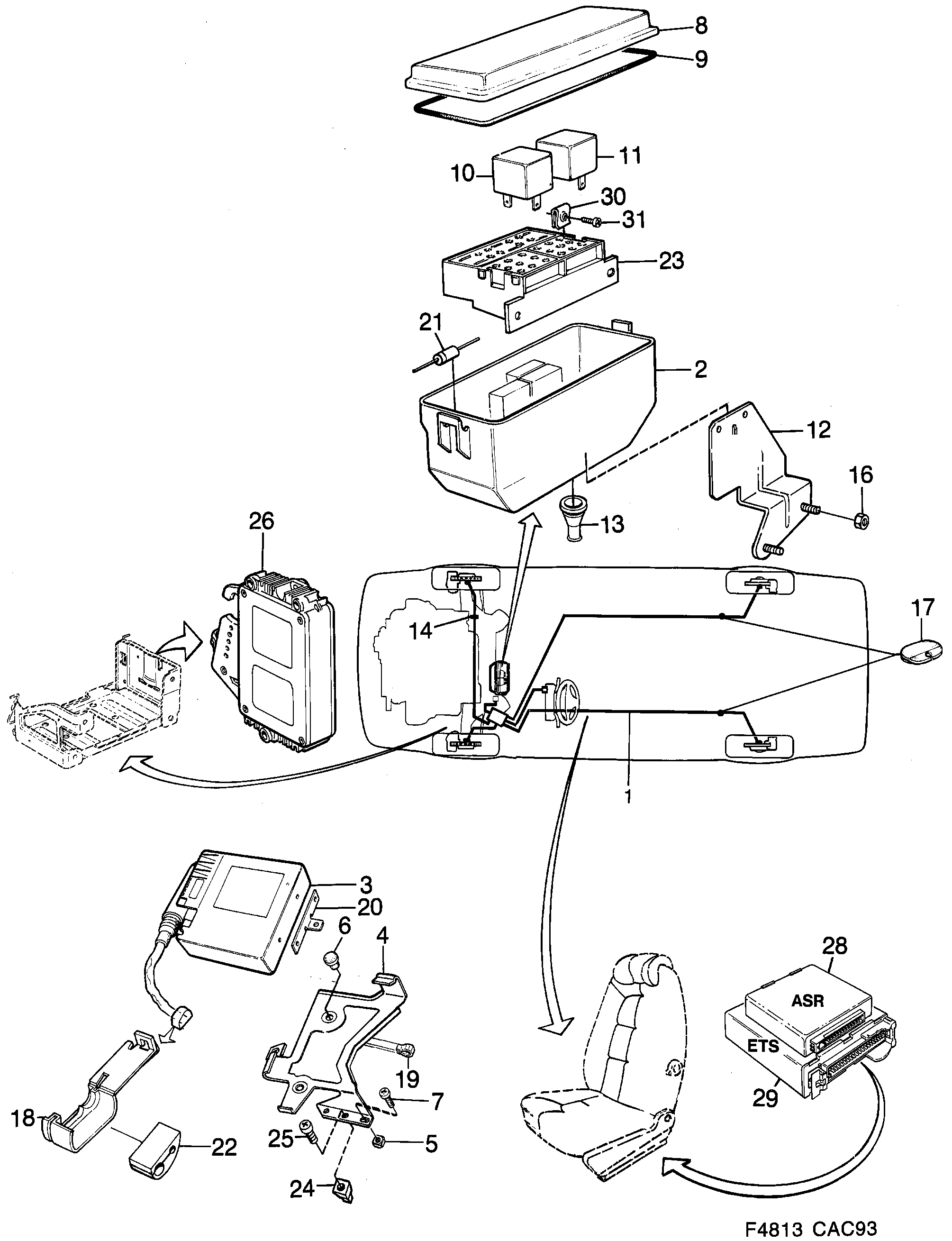

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1990?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1990. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	40 69 415 Cable harness 1990-1991 • ABS	Cable harness	1990-1991 ABS	1
1	40 66 908 Cable harness 1990-1991 • TCS	Cable harness	1990-1991 TCS	1
2	41 11 118 Box	Box
3	40 02 176 Electronic unit 1990-1991 • ABS \| Also available...	Electronic unit	1990-1991 ABS \| Also available...	1
4	40 04 438 Bracket	Bracket		1
5	79 33 682 Spring nut	Spring nut		1
6	92 68 186 Plug	Plug		2
7	79 46 734 79 22 347 Screw LH 2.2 BOX	Screw	LH 2.2 BOX	1
7	79 78 372 11 900 378 Screw LH 2.4 BOX	Screw	LH 2.4 BOX	2
8	95 19 919 Cover	Cover		1
9	95 19 927 Seal	Seal		1
10	85 33 176 Relay main relay	Relay	main relay	1
11	95 22 822 Relay pump	Relay	pump	1
	RelayWiring and fuses 1990-1990 • main relay, ETS	RelayWiring and fuses 1990-1990 • main relay, ETS
12	40 60 711 Bracket 1990-1991	Bracket	1990-1991	1
13	95 19 745 Protection	Protection		1
14	73 99 033 92 28 149 Clamp 1990-1992	Clamp	1990-1992	2
16	79 71 658 11 900 428 Nut 1990-1991	Nut	1990-1991	2
17	92 79 878 Cover	Cover		2
18	96 25 633 Bracket 1990-1991	Bracket	1990-1991	1
19	40 01 830 Clamp	Clamp		2
20	89 71 970 Bracket	Bracket		1
21	44 24 172 Diode	Diode		2
22	40 62 063 Seal 1990-1991	Seal	1990-1991	1
23	91 25 543 Contact housing	Contact housing		1
24	79 75 261 Nut	Nut		1
25	79 22 354 92 153 219 Screw -1990	Screw	-1990	1
25	79 22 438 Screw 1990-	Screw	1990-	1
26	41 90 492 Electronic unit 1990-1991 • TCS \| Also available...	Electronic unit	1990-1991 TCS \| Also available...	1
29	40 22 653 30 547 249 Electronic unit 1990-1991 • ETS \| Also available...	Electronic unit	1990-1991 ETS \| Also available...	1
29	41 59 182 30 547 249 Electronic unit 1990-1991 • ETS \| Also available...	Electronic unit	1990-1991 ETS \| Also available...	1
30	79 68 001 Clip nut	Clip nut		2
31	79 70 601 92 153 219 Screw	Screw		2

Pos.	Part No.	Description	Usage	Qty
1	40 69 415 Cable harness 1990-1991 • ABS	Cable harness	1990-1991 ABS	1
1	40 66 908 Cable harness 1990-1991 • TCS	Cable harness	1990-1991 TCS	1
2	41 11 118 Box	Box
3	40 02 176 Electronic unit 1990-1991 • ABS \| Also available...	Electronic unit	1990-1991 ABS \| Also available...	1
4	40 04 438 Bracket	Bracket		1
5	79 33 682 Spring nut	Spring nut		1
6	92 68 186 Plug	Plug		2
7	79 46 734 79 22 347 Screw LH 2.2 BOX	Screw	LH 2.2 BOX	1
7	79 78 372 11 900 378 Screw LH 2.4 BOX	Screw	LH 2.4 BOX	2
8	95 19 919 Cover	Cover		1
9	95 19 927 Seal	Seal		1
10	85 33 176 Relay main relay	Relay	main relay	1
11	95 22 822 Relay pump	Relay	pump	1
	RelayWiring and fuses 1990-1990 • main relay, ETS	RelayWiring and fuses 1990-1990 • main relay, ETS
12	40 60 711 Bracket 1990-1991	Bracket	1990-1991	1
13	95 19 745 Protection	Protection		1
14	73 99 033 92 28 149 Clamp 1990-1992	Clamp	1990-1992	2
16	79 71 658 11 900 428 Nut 1990-1991	Nut	1990-1991	2
17	92 79 878 Cover	Cover		2
18	96 25 633 Bracket 1990-1991	Bracket	1990-1991	1
19	40 01 830 Clamp	Clamp		2
20	89 71 970 Bracket	Bracket		1
21	44 24 172 Diode	Diode		2
22	40 62 063 Seal 1990-1991	Seal	1990-1991	1
23	91 25 543 Contact housing	Contact housing		1
24	79 75 261 Nut	Nut		1
25	79 22 354 92 153 219 Screw -1990	Screw	-1990	1
25	79 22 438 Screw 1990-	Screw	1990-	1
26	41 90 492 Electronic unit 1990-1991 • TCS \| Also available...	Electronic unit	1990-1991 TCS \| Also available...	1
29	40 22 653 30 547 249 Electronic unit 1990-1991 • ETS \| Also available...	Electronic unit	1990-1991 ETS \| Also available...	1
29	41 59 182 30 547 249 Electronic unit 1990-1991 • ETS \| Also available...	Electronic unit	1990-1991 ETS \| Also available...	1
30	79 68 001 Clip nut	Clip nut		2
31	79 70 601 92 153 219 Screw	Screw		2

1460: Electrical, general - Electric equipment, other - Electrical system - ABS, TCS, ASR, ETS
