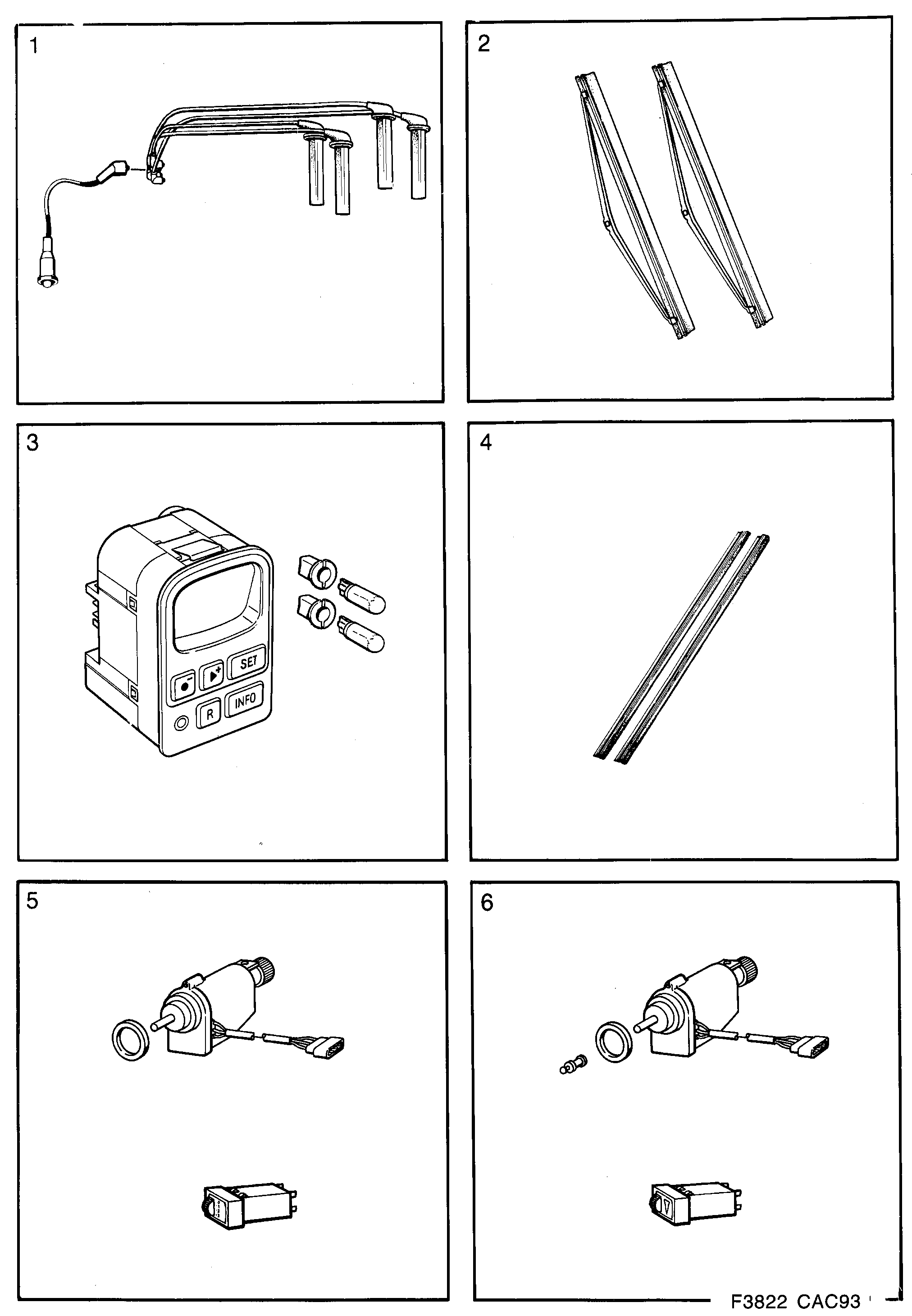

2420: Electrical, general - Kits - Electrical system
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 88 17 520 Ignition cable kit | X | |
93 90 840 43 74 336 Ignition lead ignition coil | 1 | ||
75 04 483 Ignition lead cylinder 1 | 1 | ||
75 04 491 Ignition lead cylinder 2 | 1 | ||
75 04 509 Ignition lead cylinder 3 | 1 | ||
75 04 517 Ignition lead cylinder 4 | 1 | ||
| 2 | 85 47 077 85 48 042 Wiper blade kit 1990-1990 • headlamp wipers | X | |
95 13 268 40 95 063 Wiper blade (9120890) | Not as... | 2 | ||
| 2 | 85 47 408 Wiper blade kit 1990-1990 • headlamp wipers | X | |
91 20 882 30 520 558 Wiper blade | 2 | ||
40 95 063 Wiper blade | 2 | ||
| 2 | 85 48 299 85 49 172 Wiper blade kit headlamp wipers | X | |
90 82 587 Wiper blade | 2 | ||
| 2 | 85 48 281 85 49 180 Wiper blade kit LHD • headlamp wipers | X | |
90 88 238 Wiper blade | 2 | ||
| 3 | 41 10 607 Trip computer SCC | X | |
40 84 547 Bulb | 2 | ||
40 85 775 Socket, bulb | 2 | ||
| 4 | 85 47 564 Profiled rubber kit windscreen wipers | X | |
95 26 310 Profile Not as separate spare... | 2 | ||
| 4 | 44 48 064 Profiled rubber kit Synthetic rubber. windscreen wipers | X | |
| 5 | 85 47 838 Lamp adjustment kit 1990-1990 | X | |
95 27 904 Switch | 1 | ||
95 29 785 Electric motor | 2 | ||
95 03 327 Contact housing 3-pin, female | 1 | ||
95 29 793 Sealing ring | 1 | ||
| 6 | 85 47 846 Lamp adjustment kit 1990-1990 | X | |
95 66 662 Electric motor | 2 | ||
95 69 963 Adapter | 1 |
